Overview

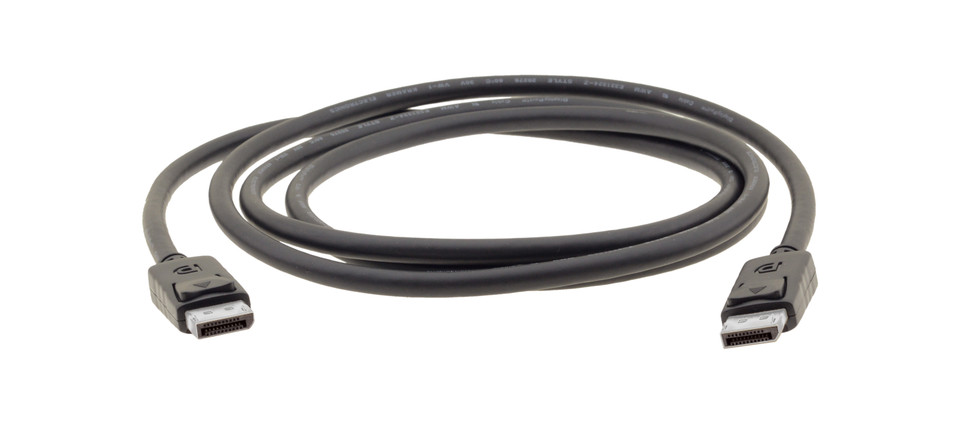

C−DP is a high−resolution DisplayPort cable for video signals up to 4K@60Hz (4:4:4) resolution supporting DisplayPort 1.2 standard. C−DP supports an HBR2 (High Bit Rate 2) bandwidth of up to 21.6 Gbps. The cable is triple shielded for superior noise immunity.

• High–Performance Professional Cable — supports resolutions up to 4K@60Hz (4:4:4) and an HBR2 (High Bit Rate 2) bandwidth of up to 21.6 Gbps.
• Content Protection Support — DPCP (DisplayPort Content Protection) and HDCP 2.2.
• Daisy Chain Multiple Monitors — With MST (Multi–Stream) support.
• Secure Connections — Includes molded DisplayPort connectors with latches.
• Quality Construction — Triple shielded for superior noise immunity.
• Backward Compatibility — Compatible with DisplayPort 1.1.
• Varied Selection of Lengths — Available in versions of 0.9 to 15.0m (3 to 50ft).
• Note: — The cable’s color can vary in some cases.

Specifications

Video

• Resolutions: Supports all VESA resolutions up to 4K@60Hz (4:4:4)
• Max. Data Rate: 21.6Gbps (5.4 Gbps per lane)

PHYSICAL

• Male DisplayPort Connectors: Gold plated pins–15u, Nickel Plated Shell

SCREENING

• Type: Triple Shielding (eliminates RF and EM interference)

CONDUCTORS

• 3-15ft Lengths: 28AWG
• 25−50ft Lengths: 26AWG

JACKET

• Material: PVC
• Diameter 3-15ft Lengths: 7.2 ± 0.19mm
• Diameter 25-50ft Lengths: 8.2 ± 0.19mm
• Average Thickness 3-15ft Lengths: 0.96mm
• Average Thickness 25-50ft Lengths: 0.57mm
• Color: Black

ELECTRICAL

• Voltage Rating: 30V
• Temperature Rating: 80°C
• Dielectric Strength: AC — 750V/1sec MIN
• Insulation Resistance: FOAM–SKIN–PE,PE:DC–500V 100 MΩ/KM MIN. at 20℃
• Conductor Resistance 28AWG: 237Ω/KMMAX. at 20℃
• Conductor Resistance 26AWG: 148Ω/KM MAX. at 20℃
• Differential Impedance: 100±5Ω
• Intra Pair Skew: 50ps/2m
• Inter Pair Skew: 4ns/2m

STANDARDS COMPLIANCE

• Rating: VW–1
• RoHS: 2011/65/EU
