Overview

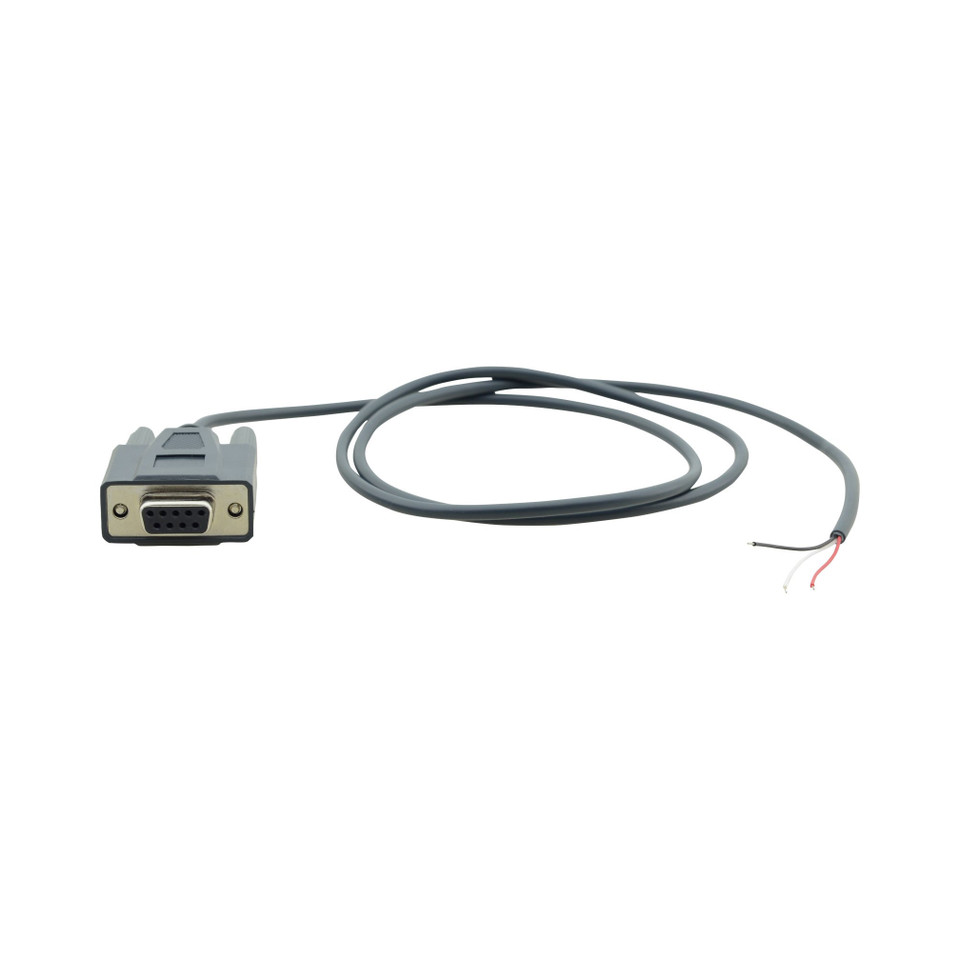

Kramer's C−D9F/OPEN control cables are for RS−232 applications to control devices within a professional AV system. Many Kramer products are RS−232 controllable and equipped with terminal block connector. This RS−232 cable helps to connect them safely to transmit the RS−232 serial commands to a touch−screen system, PC, or other serial controller equipped with D9 connector.

• Quality Construction — Constructed using three 28AWG isolated conductors, terminated with a molded female 9–pin D–sub connector, nickel plated on one side and open end, non–terminated, on the second side.
• Pinout — Wired pin to pin on pins 2, 3 & 5.
• Molded Strain Relief.
• Stripped & Tinned Wires — At open end.
• RoHS Compliant.
• Varied Selection of Lengths — 3 to 50ft (1 to 15m).

Specifications

Pinout

• Red — pin 2
• White — pin 3
• Black — pin 5

CONDUCTORS

• Material: Tinned Copper
• 3–10ft (0.9–3m) lengths: 28AWG
• 15-50ft (4.6 -15.2m) lengths: 24AWG
