Kramer C-D9F/OPEN-25

Kramer C-D9F/OPEN-25

Kramer C-D9F/OPEN-25

Kramer C-D9F/OPEN-25

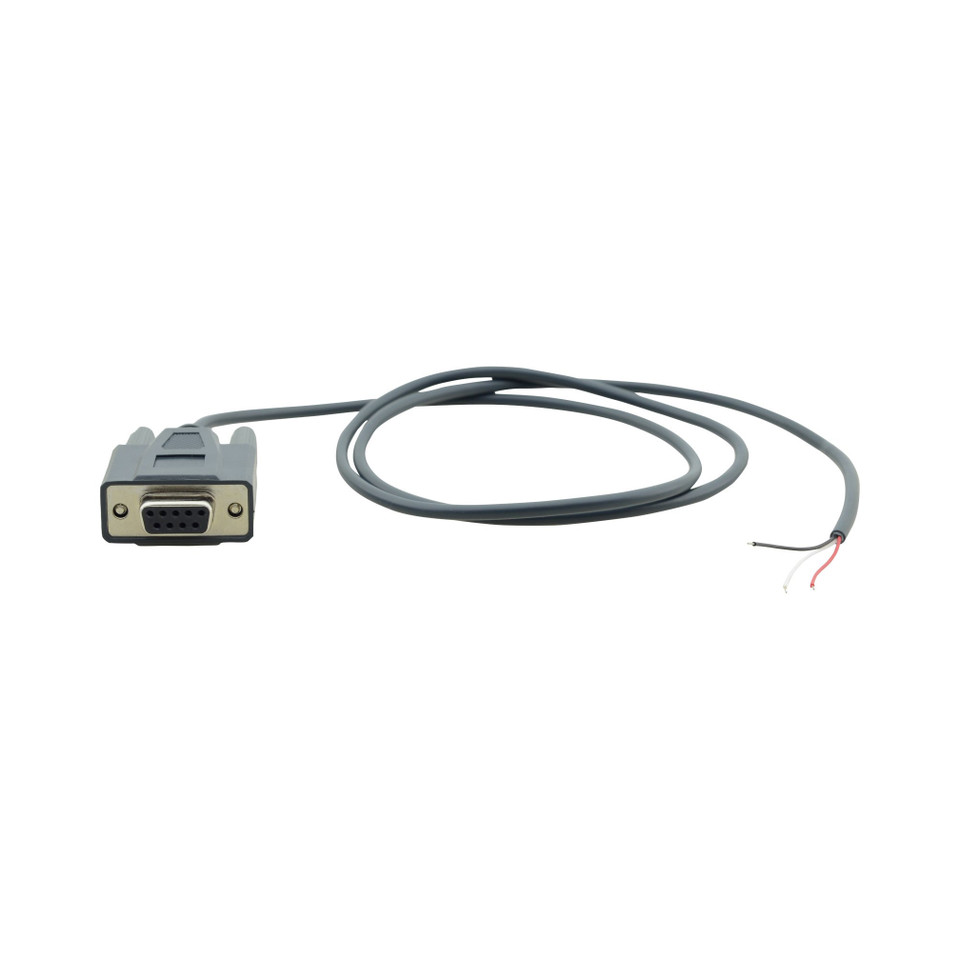

RS-232, D9(F) to bare wires cable-25ft

SKU: KRMR-95-0210025
MSRP: $8.00
MAP: $6.40

Overview

Kramer's C−D9F/OPEN control cables are for RS−232 applications to control devices within a professional AV system. Many Kramer products are RS−232 controllable and equipped with terminal block connector. This RS−232 cable helps to connect them safely to transmit the RS−232 serial commands to a touch−screen system, PC, or other serial controller equipped with D9 connector.

  • Quality Construction — Constructed using three 28AWG isolated conductors, terminated with a molded female 9–pin D–sub connector, nickel plated on one side and open end, non–terminated, on the second side.
  • Pinout — Wired pin to pin on pins 2, 3 & 5.
  • Molded Strain Relief.
  • Stripped & Tinned Wires — At open end.
  • RoHS Compliant.
  • Varied Selection of Lengths — 3 to 50ft (1 to 15m).



Specifications

Pinout

  • Red — pin 2
  • White — pin 3
  • Black — pin 5

CONDUCTORS

  • Material: Tinned Copper
  • 3–10ft (0.9–3m) lengths: 28AWG
  • 15-50ft (4.6 -15.2m) lengths: 24AWG
