Overview

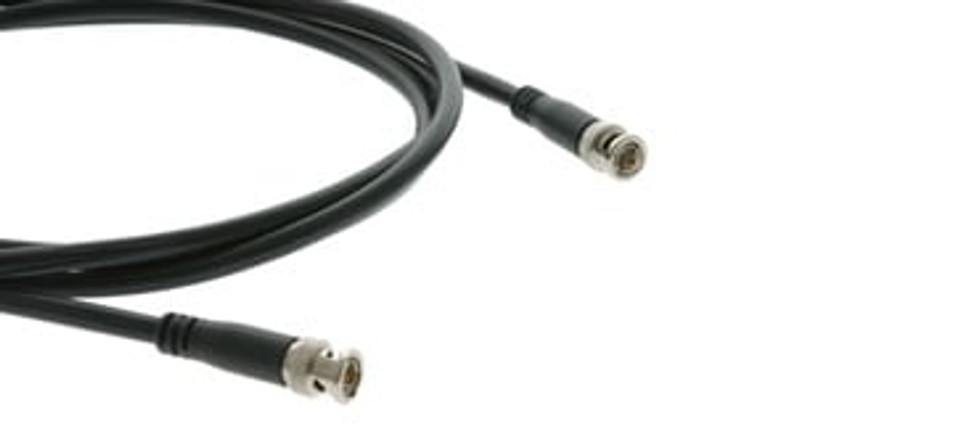

Kramer’s C−BM/BM is constructed of high performance RG−6 cable with 75Ω BNC connectors at each end. It offers outstanding quality, durability, and high performance for any video signal application.

• Quality Construction — RG–6 cable for the highest resolution signals.
• High–Quality Connectors — True 75Ω BNC connectors maintain correct impedance end–to–end.
• Varied Selection of Lengths — Available in versions of 1.5 to 150ft (0.5 to 45.7m).
• Cable Specs — Tested to 3G. For detailed cable specs, see Kramer BC–1X.

Specifications

COAX

• Conductor: 18 AWG solid bare copper
• Dielectric: Skin foam
• Shield: (A) 61% braid 34 AWG aluminum wire
• Shield: (B) Dual foil/Mylar 25% overlap rate

CONSTRUCTION

• Outside Jacket: PVC
• Outside Jacket Color: Dark gray with white lettering

DIAMETERS

• Center Conductor: 1.02mm (0.0403in)
• Dielectric: 4.57mm (0.179in)
• Outside Diameter: 6.95mm (0.391in)

ELECTRICAL

• Impedance: 75Ω
• DC Resistance: 21.8Ω/km (6.6Ω/1000ft)
• Capacitance: 53.1pF/m (16.1pF/ft)
• Velocity of Propagation: 82%
• Temperature: –20° to 75°C (–4° to 167°F)
• Attenuation (dB/100 ft.): –0.3dB @1MHz
• Attenuation (dB/100 ft.): –0.6dB @5MHz
• Attenuation (dB/100 ft.): –0.8dB @10MHz
• Attenuation (dB/100 ft.): –1.6dB @50MHz
• Attenuation (dB/100 ft.): –2.0dB @100MHz
• Attenuation (dB/100 ft.): –2.8dB @180MHz
• Attenuation (dB/100 ft.): –4.4dB @400MHz
• Attenuation (dB/100 ft.): –5.7dB @750MHz
• Attenuation (dB/100 ft.): –6.7dB @1000MHz

REGULATORY

• UL: CL2
• CSA: C(UL) CL2
