Overview

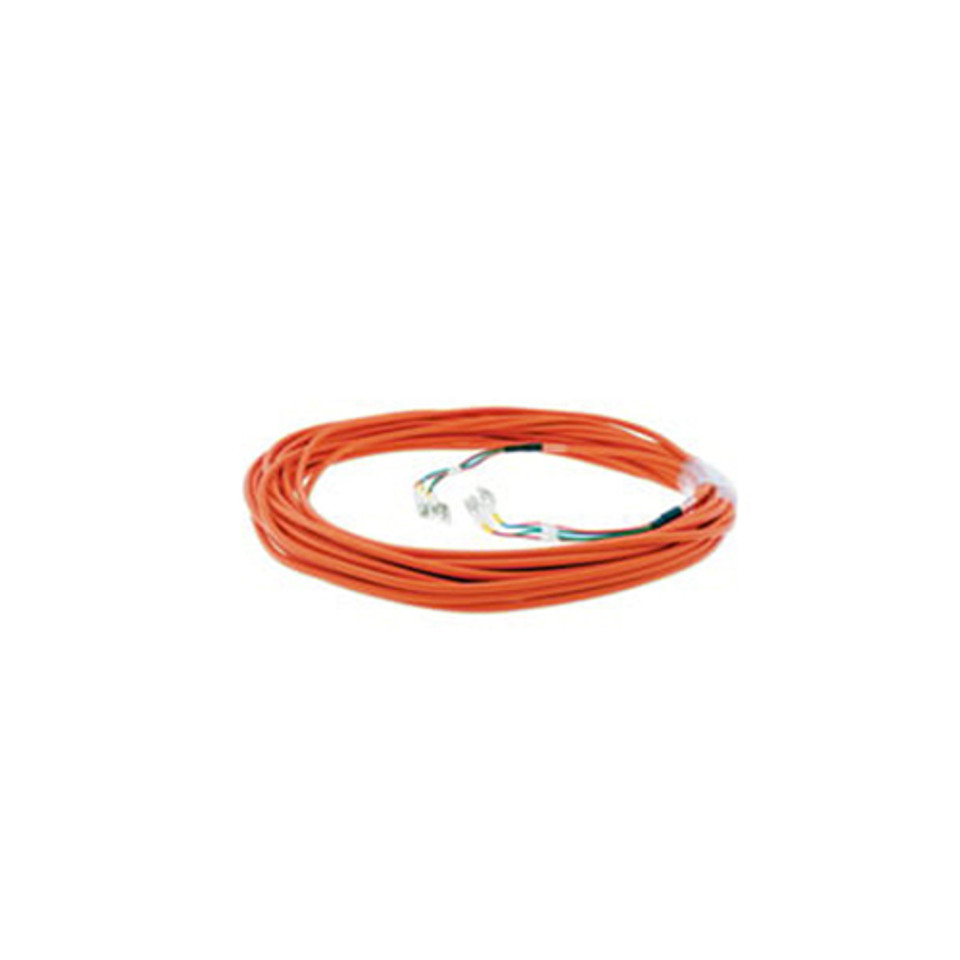

Kramer’s C−4LC/4LC is constructed of four color coded multi−mode 50/125um simplex cables of 2.0mm (0.079in) diameter each, contained in a round overall orange jacket. It is intended primarily as a companion to various Kramer detachable transmitter/receiver sets.

• Quality Construction — Multimode optical fiber with an operating wavelength of 850nm. Sub–cables are color coded:red, green, blue and orange, terminated with the popular LC connectors for easy installation and are shipped with dust caps at the ends.
• Numerous Applications — Use these cables to connect our optical transmitter and receivers for DVI and HDMI, such as:610T/R, 621T/R and 631T/R.
• Varied Selection of Lengths — Available in versions of 33 to 1640ft (10 to 500m).

Specifications

• FIBER:Multimode 50/125μm optical fiber

• FIBER CORD:PVC (OFNR) 2.0 x 4

• OUTER DIAMETER:7.0mm (0.275in), orange

• OPERATING WAVELENGTH:850nm

• INSERTION LOSS:0.3dB

• TEMPERATURE:–40° to 80°C (–40° to 176°F)
