Overview

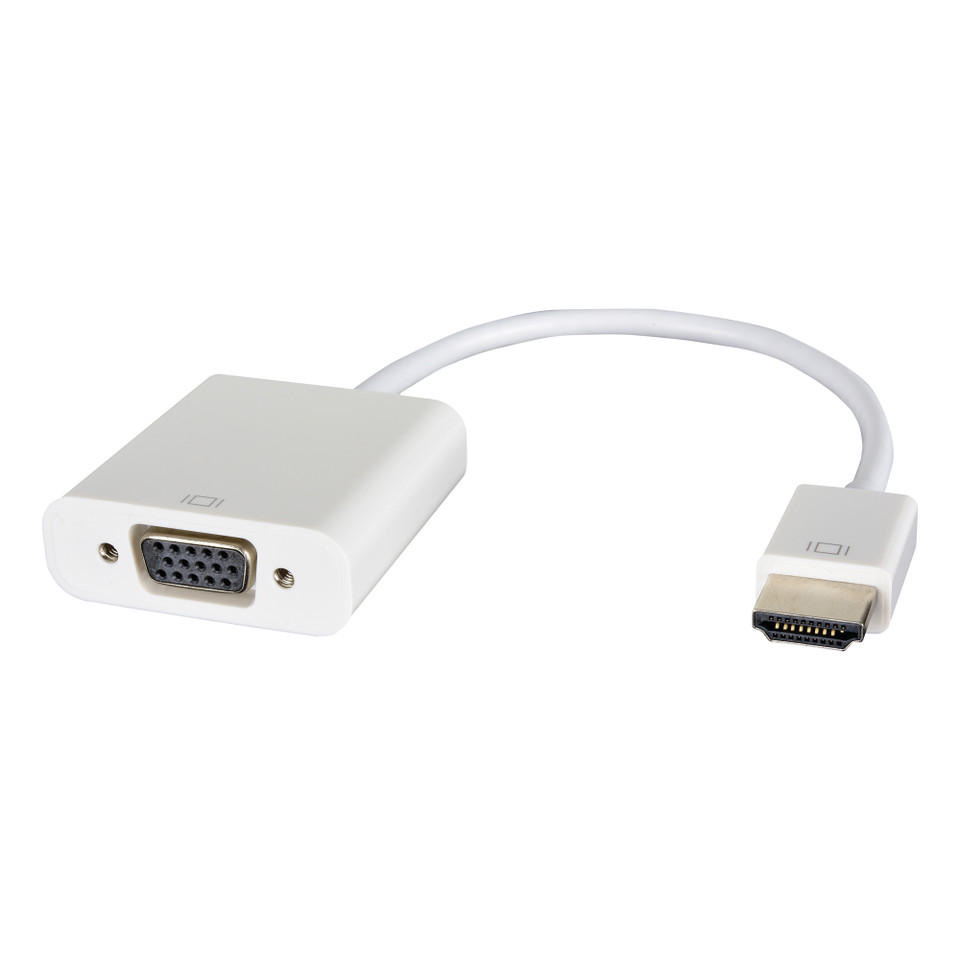

ADC−HM/GF is an HDMI™(M) to VGA(F) adapter cable. Short and flexible in design, this active cable converts a digital HDMI signal to an analog video signal while outputting the HDMI audio to a separate stereo audio output.
ADC−HM/GF is perfect for connecting an HDMI−equipped desktop PC or laptop to a VGA display or projector with a resolution of up to 1920x1200@60Hz.

Features

• Max Resolution — 1080p.
• Analog Audio Output — 2–channels.
• Plug and Play Installation — No software required.
• Powering Options — Receives power from the HDMI port bus power, with optional micro–USB auxiliary power, as needed.

Specifications

Video

• Max Resolution: 1080p

Audio

• Analog Audio: 2 channels

PHYSICAL

• Cable type: Active
• Input Connector: HDMI type–A (M)
• Output Connector 1: 15–pin HD(F)
• Output Connector 2: 3.5 mm stereo audio

Environmental Conditions

• Humidity: 40%–85%RH
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: –10°C to 70°C (14°F to 158°F)
