OVERVIEW

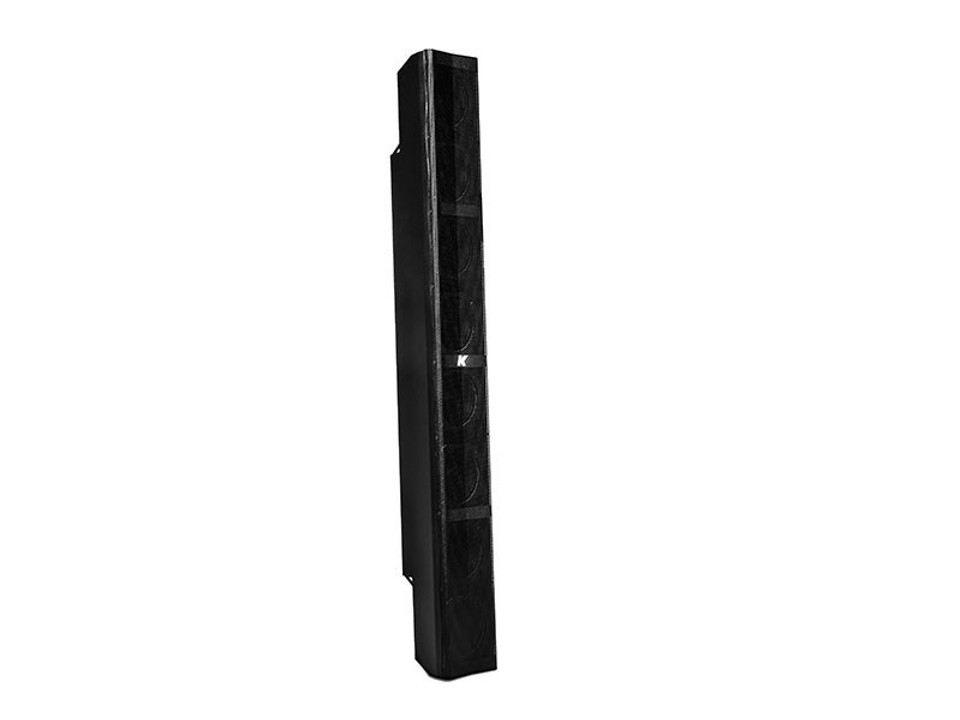

The Kayman line is an advanced line array element housed in a sleek design. Measuring a length of one meter, the Kayman is a passive speaker comprised of eight 4” neodymium magnet transducers.
The Kayman-KY102 has a vertical dispersion pattern can be switched for wide or narrow coverage, allowing for a great variety of applications such as large theaters and congregations and live concerts. And with the ability to customize the color as well as the finish of the speaker, users are able to match the Kayman with the architecture and design of the venue.
Integrating one of K-array's powered Thunder subwoofers assures excellent coverage of the entire musical frequency range.
FEATURES
- Unique performance-to-size ratio
- Vertical, horizontal and 3D line array applications
- Multiple 4” long excursion, full-range cone drivers
- Selectable 8 Ohm or 32 Ohm impedance
- Wide horizontal coverage
- Weather resistant, suitable for outdoor installations - IP54
SPECIFICATIONS
ACOUSTICS Power handling 1200 W Max Power 1800 W Frequency range 110 Hz – 20 kHz (- 3dB) (1) Impedance 8Ω or 32Ω (selectable) SPL 1W/1mt 102 dB (2) Maximum SPL 132 dB continuous - 138 dB peak (3) COVERAGE Horizontal 90° Vertical 7°- 30° (selectable) CROSSOVER Type External Crossover required Frequency 90 Hz, 24 dB/oct suggested minimum TRANSDUCERS Full-range 8 x 4” Neodymium magnet with 1.5” voice coil SELECTION SWITCHES Impedance 8Ω - 32Ω Coverage Spot - Flood POWER AUDIO INPUTS Connectors 2 x 4-pin Speakon Wiring 1+ 1- (signal IN & LINK); 2+ 2- (through) RECOMMENDED AMPLIFIERS Type KA84, KMT CERTIFICATIONS IP 54 PHYSICAL OVERVIEW Dimensions 11.6 x 100.0 x 13.4 cm (4.56“ x 39.37” x 5.27“) (4) Weight 14.9 Kg (32.8 lb) Notes for data 1. With a dedicated preset; 2. Measured @8 m, then scaled @1 m; 3. Measured with a musical signal; 4. ( W x H x D). New materials and design are introduced into existing products without previous notice. Present systems may differ in some respects from those presented here catalog.
