Overview

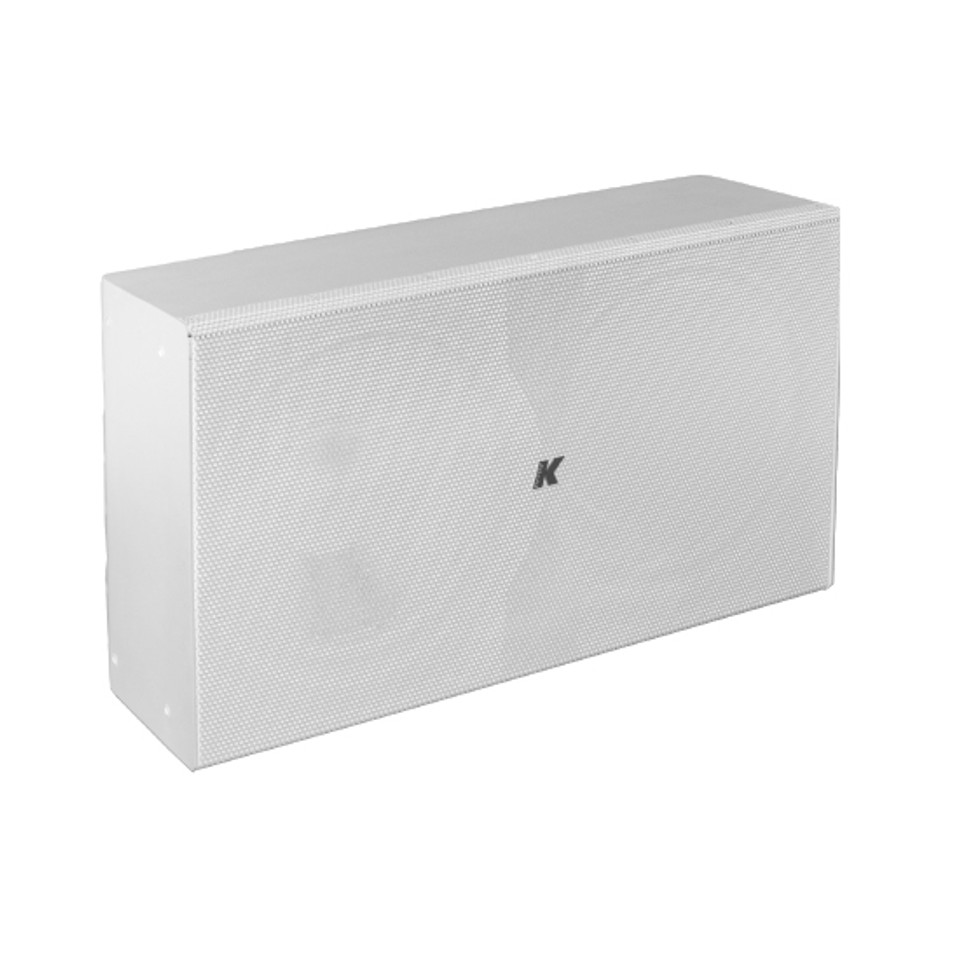

The Rumble-KU210 subwoofer is a high-power passive sub featuring a 10” neodymium transducer an a 10” passive transducer in an ultra-shallow box. Rather than reflex openings, the KU210 features a passive radiator that ensures the device remains completely sealed off from foreign objects.

The Rumble-KU210 is engineered for maximum linear excursion and minimum residual noise. Its neodymium transducer has a double voice coil for two selectable impedance settings 4/16 Ω (2 x 8Ω) to allow a combination of up to 4 units powered by just one channel of the Kommander-KA84 amplifier.

Features

Visually Discreet
For architectural reasons, a visually discreet audio system may be required to integrate seamlessly with the layout without compromising sound quality.

Lightweight
We created a portfolio complete with lightweight products that are easy to transportation and quick to setup optimizing logistics, space, labor costs and time.

Premium Finishes
Similar to high-end fashion accessories and jewelry, our products undergo the most advanced coating process for a more beautiful and lustrous look.

Color Customizable
We have the ability to customize your project by color matching your system to any RAL code to help you to better integrate the speakers into a wide variety of venues.

Weather Resistant
We utilize the most durable and resistant materials when developing our products to protect and conserve the system regardless of the elements, rendering a K-array installation reliable and long-lasting.

Specifications

Acoustics

• Power Handling: 2 x 160 W
• Impedance: 4 / 16 Ω selectable (2 x 8 Ω)
• Frequency range: (-10 dB) 40 Hz – 150 Hz (1)
• SPL 1W/1mt: 94 db (2)
• Maximum SPL: 121dB (cont) - 127dB (peak)

Coverage

• Horizontal: Omni
• Vertical: Omni

Crossover

• Coaxial: External Crossover required
• Frequency: Low pass @ 150 Hz suggested

Transducers

• Full range: 1 x 10” neodymium magnet with 2” voice coil
• Full range: 1 x 10” passive transducer

Power Audio in/out

• Connectors: 1 x 4-pin Phoenix connector

Recommended Amplifiers

• Type: KA24 - KA84 Class D model with PFC - DSP controlled

Certifications

• IP: 54 (More complete water protection with K-KUIP accessory)

Physical

• Dimensions: 50.0 x 28.2 x 15.0 cm (19.68”x 11.10”x 5.90”) (4)
• Weight: 11.0 Kg (24.25 lb)
