Overview

The Truffle-KTR26 is the largest model in the compact line of Truffle subwoofers applied when low-end sustain is needed.

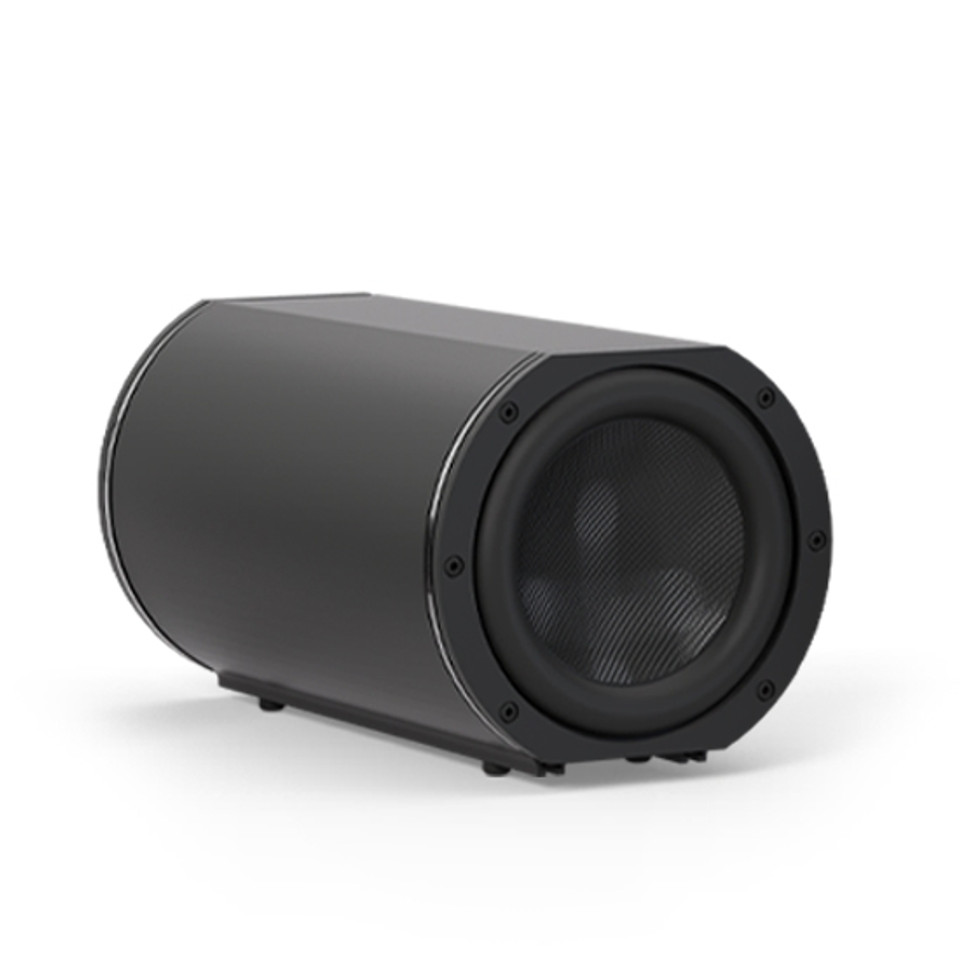

The source subwoofer has a frequency range of 45 Hz to 150 Hz and is comprised of a single 6.5" driver with passive radiators. For a hidden installation, the Truffle-KTR26 was designed with an 12"-long cylindrical speaker box equipped with one 6.5" active driver on one end and one symmetrical 6.5" passive speaker on the opposite end, perfect for an omnidirectional low-end source.

This subwoofer provides the low-end frequencies for the Azimut-KAMUT2L25 audio system.

Features

Visually Discreet
For architectural reasons, a visually discreet audio system may be required to integrate seamlessly with the layout without compromising sound quality.

Unique Performance-to-Size Ratio
Produces an impressive high-power performance by producing a high SPL from a small frame.

Lightweight
We created a portfolio complete with lightweight products that are easy to transportation and quick to setup optimizing logistics, space, labor costs and time.

Weather Resistant
We utilize the most durable and resistant materials when developing our products to protect and conserve the system regardless of the elements, rendering a K-array installation reliable and long-lasting.

Specifications

General

• Type: Passive subwoofer
• Drivers: 6.5" ferrite magnet woofer with 1" voice coil + 6.5" passive radiator
• Frequency Range: 45 Hz – 150 Hz (-6 dB)
• Sensitivity: 89.4 dB (1W, 1m)
• Maximum SPL: 160 dB
• Power Handling: 100 W
• Nominal Impedance: 2 Ω
• Crossover: External Crossover Required
• Coverage: Omni

Handling & Finishes

• IP Rating: IP54
• Dimensions(2): 181.5 x 176 x 322 mm (7.15 x 6.93 x 12.68 in)
• Weight: 3.5 kg (7.72 lb)
• Colors & Finishes: Textured Powder Black
• Recommended Amplifier Kommander-KA02
