Overview

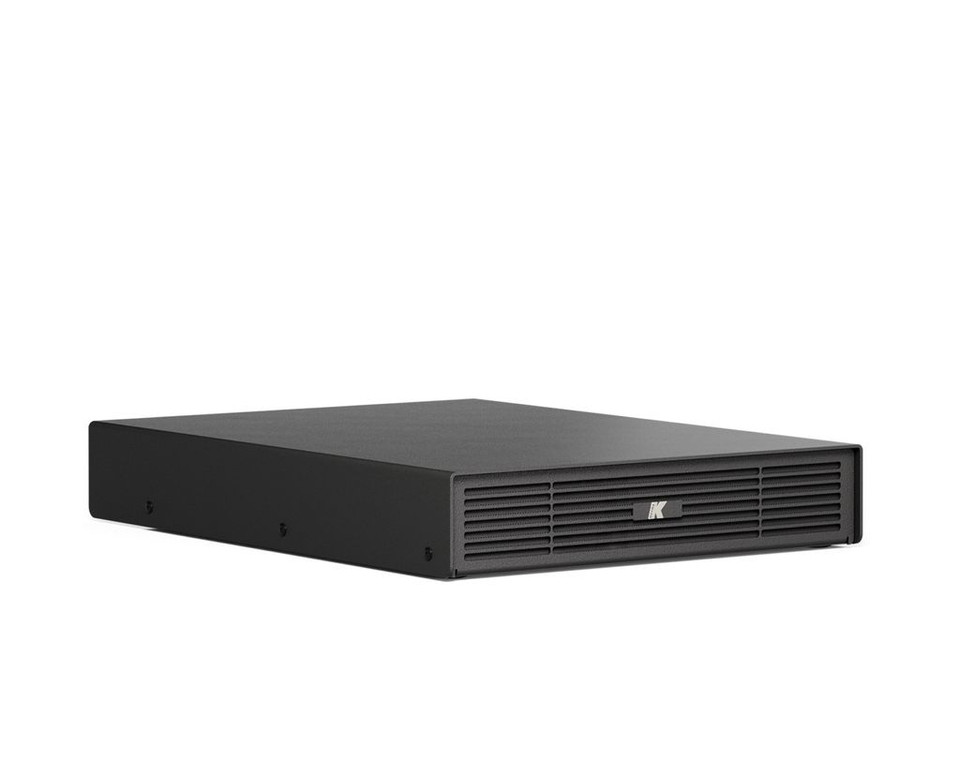

Meet the KPRA02+ : with the possibilities and power of our new Integrated Electronic Brain-Pro with advanced features packed into a compact design.

With IEB-Pro at its core, the KA02 I transforms into an incredibly compact yet highly potent processing platform with Dante-Ready ™ for activation of Dante ™ license and supporting up to 8x8 Dante channels.

The dedicated built-in boards facilitate seamless integration, providing 4x analog inputs and 4 powered outputs. This comprehensive bundle offers unmatched flexibility and power, making it ideal for diverse applications such as conference settings, corporate environments, retail spaces, hospitality, and more.

Upgrade your audio setup with the KPRA02+ and unleash the full potential of advanced technology in a sleek and efficient package.

Specifications

General

• Type: Matrix with IEB-Pro (8x8 Dante Ch, payment-enabled) with 4ch analog inputs and 4ch power outputs

  Output Power: 4x 50W @ 4Ω
• Amp Module: 4ch switching mode, Class D Amplifier
• Impedance: minimum 4 Ω (2 Ω PBTL)
• Frequency Response: 20 Hz – 20 kHz (±1 dB)
• Mains Connector
  • Input:
    4x BAL input: Euroblock 1.5/ 3-ST-3.81, + K-PREAMPS4 module
    3.5 mm jack unBAL analog stereo AUX input, TOSLINK optical input,
  • Output: 2x Euroblock 2,5/ 4-G-5,08
    Digital: 1x USB-A 2.0, 2x RJ45 Ethernet
• Built-in DSP: Grouping, Equalization, Limiters, Routing, Level, Loudspeaker presets
• Remote Control: Wi-Fi and Ethernet dedicated APP and Desktop software
• MAIN Operating Range: Dedicated AC/DC power adapter 100-240V ~ AC, 50-60 Hz input / 24 V, 4 A DC output
• Power Consumption: 20 W @ 4 Ω load, 1/8 Rated Power (Pink Noise)

Regulations

• IP Rating: IP20

Handling and Finishes

• Material: Aluminum
• Colors: Black
• Dimensions (W x H x D):

  • 219 x 46 x 170 mm
  • (8.6 x 1.8 x 6.7 in)
• Weight: 0.7 kg (1.5 lb)
