Overview

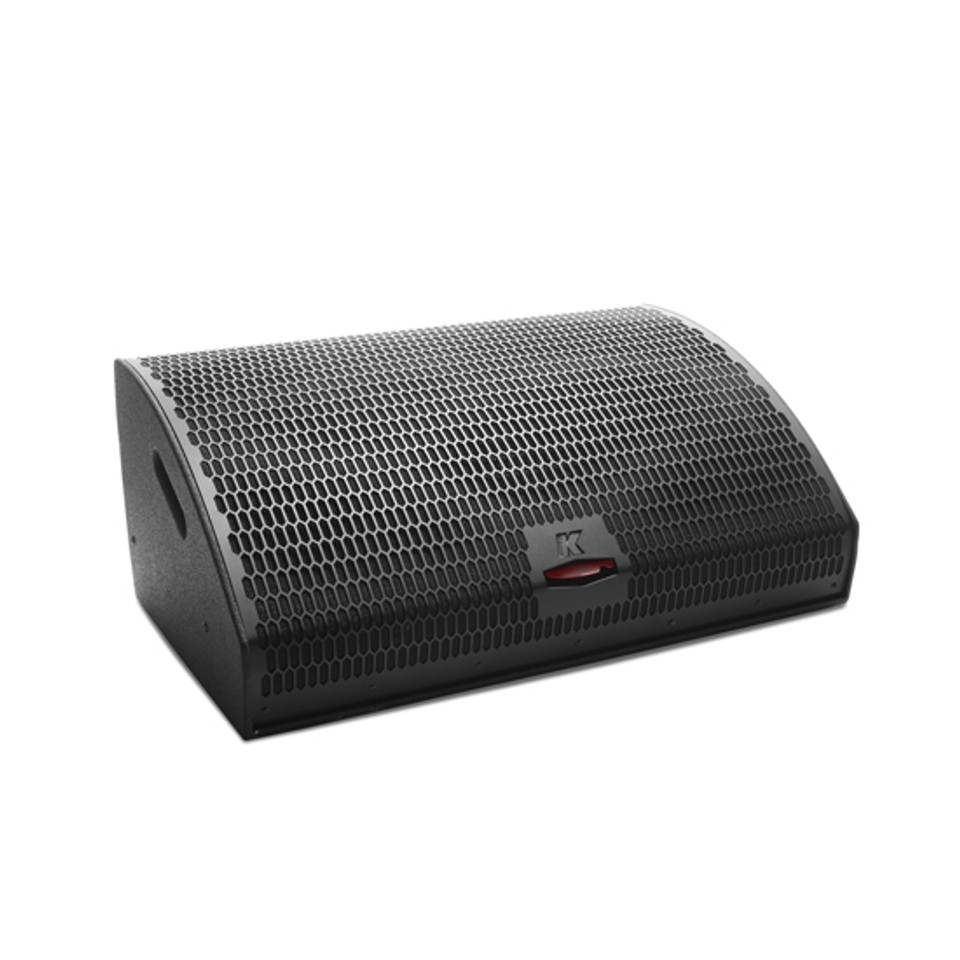

The Mastiff line-KM312P is the largest passive monitor in the Mastiff line. Powering at a max of 4000 W, this aggressive speaker features three 12” woofers and produces a maximum SPL output at 136 dB (peak).
Features
- Full-Range Frequency Response
- Dante Compatible
- Onboard Touch Screen
- Color Customizable
- Selectable Coverage
Specifications
Acoustics
- Power Handling 2000 W + 800 W + 280 W
- Max power 4000 W
- Impedance LF: 4 Ohm MF-HF: 8 + 8 Ohm
- Frequency range (-10 dB) 62 Hz – 19 kHz
- SPL 1W/1mt LF: 100dB MF: 97dB HF: 105dB
- Maximum SPL 132dB (cont.) - 138dB (peak)
- Horizontal 100°-30° (depending on horn orientation)
- Vertical 30°-100° (depending on horn orientation)
- Type DSP Controlled and passive filter
- Frequency 200 Hz - 1300 Hz
- Low-mid frequency 2 x 12” neodymium magnet woofer with 2.5” voice coil
- Mid frequency 12” neodymium magnet woofer with 3” voice coil
- High frequency neodymium magnet compression driver with 2” voice coil
Power audio in/out
- Connectors 2 x 4-pin speakon
- Wiring 1+ 1- (Passive Crossover MF-HF) 2+ 2- (Woofer)
Physical overview
- Dimensions 82.0 x 53.0 x 33.5 cm (47.95” x 20.47” x 8.26”) (1)
- Weight 33.5 Kg (73.85 lb)
