Overview

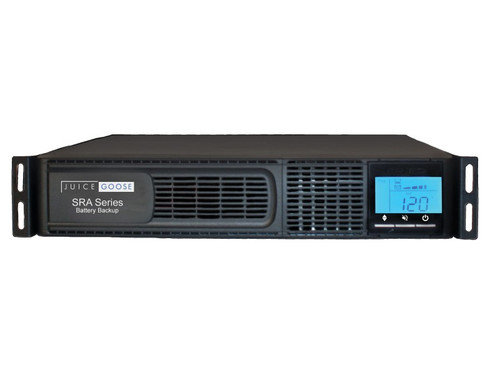

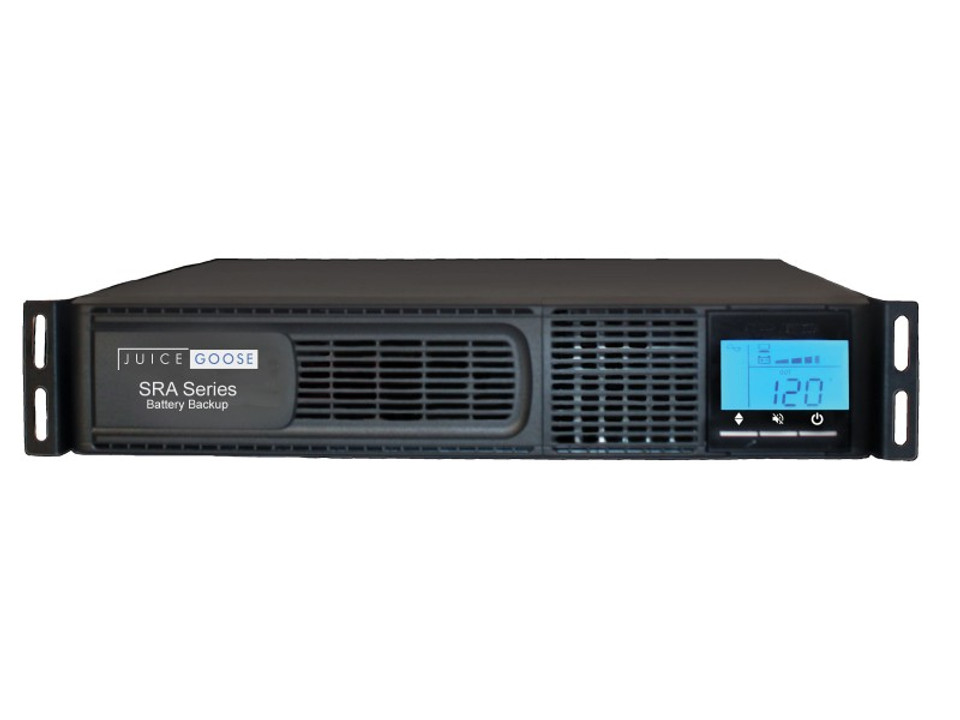

Line Interactive, Voltage Regulating - 750 VA / 525 Watt UPS
The SRA Series of battery backup UPS models feature value priced yet feature rich UPS technology incorporating automatic voltage regulation (line interactive) function that preserves battery power and supports sensitive electronic equipment during brown outs. Once incoming voltage drops below operational levels, SRA switches to battery to maintain power continuity. These products also provide 960 Joules of power line surge protection.
Voltage Regulation - provides support during low voltage sags. When utility power ranges between 90 and 150 VAC, voltage output stabilizes between 103 and 136 VAC.
Line Interactive circuitry monitors the incoming voltage level and routes current through the appropriate taps on a buck/boost transformer to raise or lower output voltage, improving the performance of powered equipment and extending the usable range of the utility power before switching to battery mode.
Emergency Power Off (EPO) - immediately remove power from UPS outlets in case of an emergency.
Hot Swappable Battery Design - ensures uninterrupted performance during battery replacement.
Rack, Tower or Wall Installation - installation options for a variety of power continuity applications.
Easy to View LCD Panel - displays UPS and electric power status. Rotating design can orient the front panel display to suit rack, tower or wall installation. Vaules available on display include: load level, voltage and frequency, UPS status, battery charge level, estimated run time, internal or external fault.
Maintenance Free Batteries - last 3 - 5 years under normal operations and conditions. Replacement batteries are available.
Specifications
General
- Rating VA: 750
- Capacity Watts: 525
INPUT
- Rated Operating Voltage (VAC): 120 = Nominal, 90 to 150 = Min and Max Range
- Low Voltage Transfer To Battery: 89 VAC
- Return To Utility Power: 94 VAC
- High Voltage Transfer To Battery: 151 VAC
- Return To Utility Power: 146 VAC
- Power Cord: 10 Foot, NEMA 5-15P (NEMA 5-20P for SRA 20000)
OUTPUT
- Output Voltage - Line Interactive Mode: 103 - 136 VAC
- Output Voltage - Battery Mode: 120 VAC +/- 5%
- Frequency Range: 60 Hz +/- 0.8%
- Overload Capacity: 110% 20 - 60 Seconds, 150% Immediate Shutdown
- Harmonic Distortion (THDU): 30.3 % to 37.2 % = Total, 14.5 % to 18.7 % = Single
- Transfer Time AC to DC: 6 - 10 ms (Typical)
- Topology (Design): Line Interactive - Simulated Sine Wave
- Receptacles: 8 x NEMA 5-15R, 6 x NEMA 5-15/20R, 1 x NEMA L5-20R
- Load Shedding (Outlet Control) Requires third-party software: 2 Banks of 3 Outlets and 2 Unswitched. SRA 20000 has 1 Unswitched L5-20R.
BATTERY
- Battery Type: Sealed, Non-Spillable, Valve Regulated, Maintenance Free, Lead Acid
- Run Time (Full Load / Half Load): 4 Minutes / 14 Minutes
- Typical Recharge Time: 8 Hours to 90% from Full Discharge
- Typical Service Life: 3 to 5 Years With Proper Operation
SURGE PROTECTION
- Surge Energy Rating: 960 Joules
- Surge Capacity: 6,500 Amps Total (One Time)
- EMI/RFI Noise Filtration: >45dB Normal and Common Mode
DISPLAY, CONTROL and ALARMS
- Status Indications: Battery Capacity, Load Percentage, Input Power Source, External Power Line, Fault Indications
- Control Select Buttons: On/Off/Test, Alarm Silence, Display Control (Scroll)
- Warning Indicators: Low or Bad Battery, Current Overload, Site Wiring Fault, Over Temperature, UPS Failure
PHYSICAL
- Dimensions, Net (L x W x H): 16.1” x 18.9” x 3.4”
- Weight Lbs (Net / Shipping): 31.3 / 37.5
ENVIRONMENT
- Operating Temperature: 32 F to 104 F
- Storage Temperature: -13 F to 104 F
- Humidity: 20 to 90% RH (non-condensing)
- Audible Noise Output @ 3 ft: < 45 dBA
