Overview

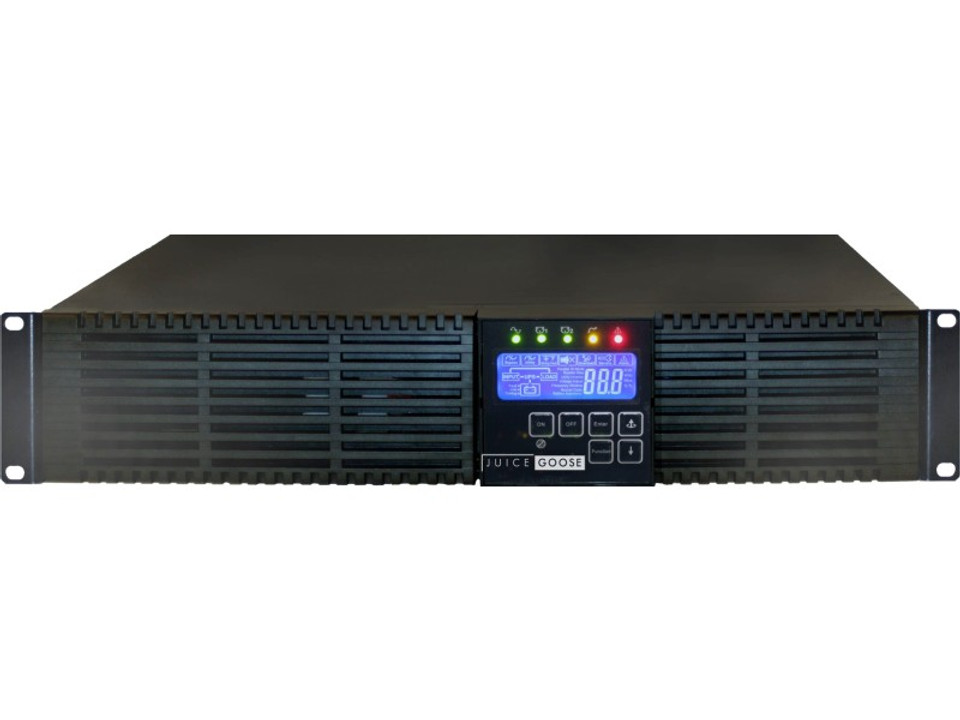

On Line, Double Conversion - Power Saving 2,000 VA / 1,800 Watt UPS
True double conversion UPS architecture completely buffers connected loads from incoming disturbances on AC line and neutral. This design also provides unconditional voltage stability regardless of problems on the local utility grid.
Advanced processor circuitry has an output power factor of 0.90 to provide higher performance and efficiency to critical applications. High efficiency circuitry converts 90% of available current (amps) into real work (watts), reducing equipment and operating costs.
Easy to read LCD display provides real-time indication of all major system parameters and status, including load and battery levels and fault signals. Communications options allow remote monitoring and management.
Batteries can be replaced without shutting down the UPS. Options include rack rails and network card with UPS monitoring and control software.
Specifications
| Power Capacity (VA) |
2,000 |
|
Power Capacity (Watts) |
1,800 |
| Rack Height |
2U |
| Weight (Net, Lbs) |
47 |
| Run Time, Full Load (Min) |
3 |
| Run Time, Half Load (Min) |
10 |
| Model | VA / Watts / Amps | Battery Run Time (Full / Half Load) |
Input Power Cord (10 Ft) |
Output Power Receptacles |
| SCV-10001 | 1,000 / 900 / 8.3 | 2 / 10 Mins | 5-15P | (6) 5-15R |
| SCV-15001 | 1,500 / 1,350 / 12.5 | 5 / 15 Mins | 5-15P | (6) 5-15R |
| SCV-20001 | 2,000 / 1,800 / 16.7 | 3 / 10 Mins | 5-20P | (6) 5-15/20R |
| SCV-30001 | 3,000 / 2,700 / 25.0 | 3 / 10 Mins | L5-30P | (6) 5-15/20R (1) L5-30R |
