Overview

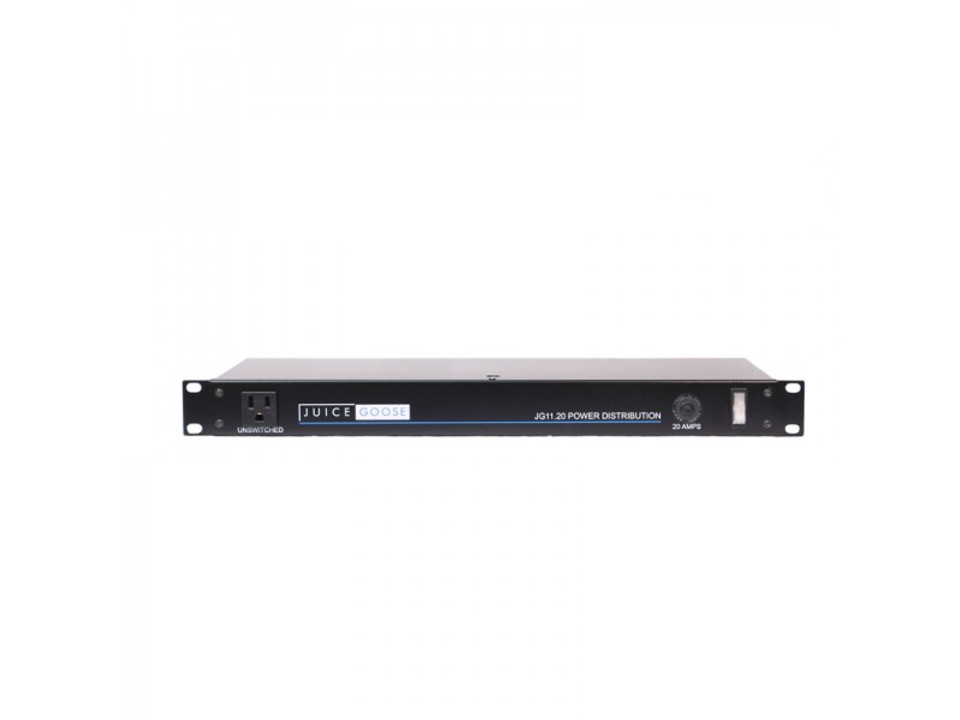

Power Distribution Center with 11 Outlets and 20 Amp Capacity

The JG11-20 has a twenty amp rating with more outlets: The twenty amp rating allows this unit to be used with more or higher powered equipment.

This very economical package has elevn AC receptacles, each rated for fifteen amps. Nine are switched and one unswitched receptacle in on each the front and back. In addition, the JG 11-20A has a front mounted circuit breaker and a fifteen foot long power cord to use in difficult to reach applications

The JG Series family of commercial grade power and light modules includes six high quality, economical models that are valuable accessories for any rack-mounted system. The switched outlets on the back of each unit provide power while the discreet components inside provide a basic level of protection to help clean up dirty and dangerous AC voltage.

The basic power conditioning includes a fast-acting metal oxide varistor (MOV) installed to clamp voltage spikes running between the incoming line and neutral leads. This level of conditioning also includes a capacitor to reduce the level of AC line interference that may be transmitted between the line and neutral leads.

Specifications

• INPUT VOLTAGE: 120vac, 60 Hz
• TECHNICAL CURRENT CAPACITY

  • JGJr, JG8LED, JG9, JG9NS, JG11-15: 12 Amps
  • JG11-20: 18 Amps
• CURRENT OVERLOAD PROTECTION

  • JGJr, JG8LED, JG9, JG9NS, JG11-15: 15 Amps
  • JG11-20: 20 Amps
• DIMENSIONS (inches)

  • JGJr: 1.75H x 19W x 4.5D
  • All other JG Series models: 1.75H x 19W x 7D
• WEIGHT (lbs)

  • JGJr: 4.0
  • JG8LED, JG9, JG9NS: 5.5
  • JG11-15, JG11-20: 6.0
• POWER CORD

  • JGJr, JG8LED, JG9, JG9NS: 15 Amps, 6 foot 16/3 SJT with NEMA 5-15P Plug
  • JG11-15: 15 Amps, 15 foot 16/3 SJT with NEMA 5-15P Plug
  • JG11-20: 20 Amps, 15 foot 12/3 SJT with NEMA 5-20P Plug
• POWER OUTPUT RECEPTACLES

  • JGJr: Six NEMA 5-15 (back)
  • JG8LED: Eight NEMA 5-15 (back)
  • JG9, JG9NS: Eight NEMA 5-15 (back), one NEMA 5-15 (front)
  • JG11-15, JG11-20: Nine NEMA 5-15 (back), one NEMA 5-15 (front)
• AC LINE FILTRATION: Line Capacitor (Line & Neutral)
• VOLTAGE SPIKE PROTECTION: Metal Oxide Varistor (Line & Neutral)
• WARRANTY

  • JGJr: One year
  • All other JG Series models: Three years
