Juice Goose JG11.0-15A

Juice Goose JG11.0-15A

Juice Goose JG11.0-15A

Juice Goose JG11.0-15A

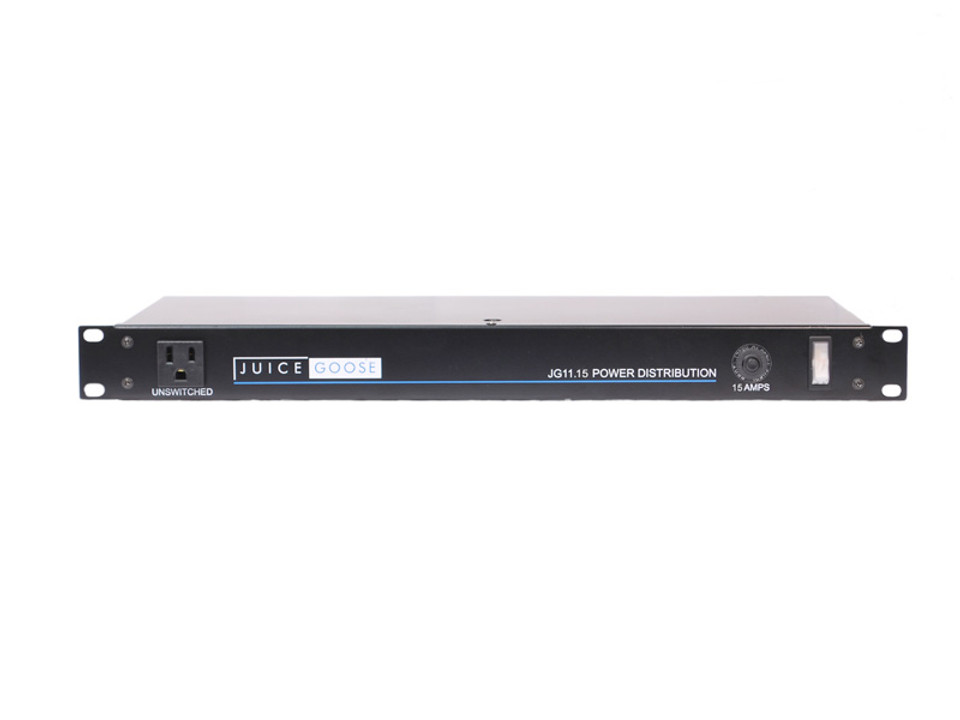

19" PDU 11 out. 12ft cord.15A

SKU: JG-JG11.0-15A
MSRP: $211.00
MAP: $179.00

Overview

This product has a fifteen amp capacity with more outlets. The fifteen amp rating allows the JG11-15 to be plugged in anywhere. While it has less capacity than the stronger JG 11-20A, in many ways this unit is more versatile.

This very economical package has 11 AC receptacles with one unswitched on each the front and back. In addition, the JG 11-15A has a front mounted circuit breaker and a fifteen foot long power cord to use in difficult to reach applications

The JG Series family of commercia grade power and light modules includes six high quality, economical models that are valuable accessories for any rack-mounted system. The switched outlets on the back of each unit provide power while the discreet components inside provide a basic level of protection to help clean up dirty and dangerous AC voltage.

The Basic power conditioning includes a fast-acting metal oxide varistor (MOV) installed to clamp voltage spikes running between the incoming line and neutral leads. This level of conditioning also includes a capacitor to reduce the level of AC line interference that may be transmitted between the line and neutral leads.

Specifications

  • INPUT VOLTAGE: 120vac, 60 Hz
  • TECHNICAL CURRENT CAPACITY
    • JGJr, JG8LED, JG9, JG9NS, JG11-15: 12 Amps
    • JG11-20: 18 Amps
  • CURRENT OVERLOAD PROTECTION
    • JGJr, JG8LED, JG9, JG9NS, JG11-15: 15 Amps
    • JG11-20: 20 Amps
  • DIMENSIONS (inches)
    • JGJr: 1.75H x 19W x 4.5D
    • All other JG Series models: 1.75H x 19W x 7D
  • WEIGHT (lbs)
    • JGJr: 4.0
    • JG8LED, JG9, JG9NS: 5.5
    • JG11-15, JG11-20: 6.0
  • POWER CORD
    • JGJr, JG8LED, JG9, JG9NS: 15 Amps, 6 foot 16/3 SJT with NEMA 5-15P Plug
    • JG11-15: 15 Amps, 15 foot 16/3 SJT with NEMA 5-15P Plug
    • JG11-20: 20 Amps, 15 foot 12/3 SJT with NEMA 5-20P Plug
  • POWER OUTPUT RECEPTACLES
    • JGJr: Six NEMA 5-15 (back)
    • JG8LED: Eight NEMA 5-15 (back)
    • JG9, JG9NS: Eight NEMA 5-15 (back), one NEMA 5-15 (front)
    • JG11-15, JG11-20: Nine NEMA 5-15 (back), one NEMA 5-15 (front)
  • AC LINE FILTRATION: Line Capacitor (Line & Neutral)
  • VOLTAGE SPIKE PROTECTION: Metal Oxide Varistor (Line & Neutral)
  • WARRANTY
    • JGJr: One year
    • All other JG Series models: Three years
