Overview

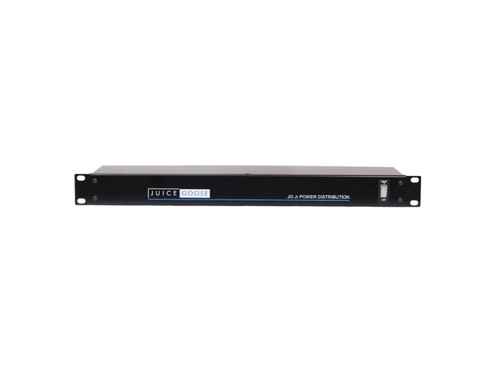

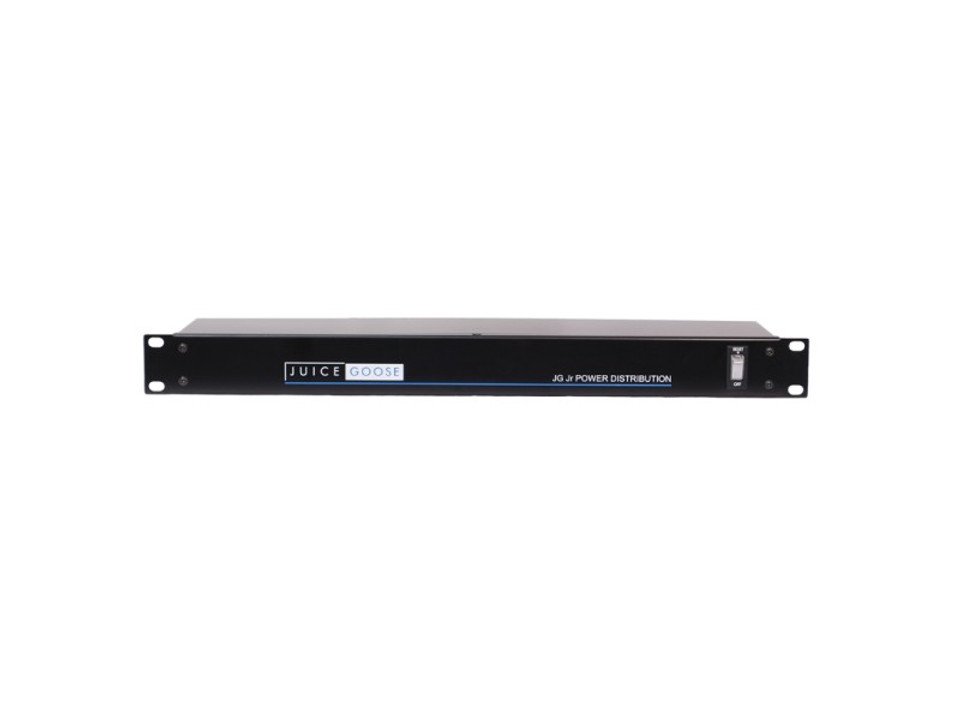

Power Distribution Center with 6 Outlets and 15 Amp Capacity

Less expensive fifteen amp connectivity has base level surge protection, six rear outlets and a shallower chassis.

The JG Series family of commercial grade power and light modules includes six high quality, economical models that are valuable accessories for any rack-mounted system. The switched outlets on the back of each unit provide power while the discreet components inside provide a basic level of protection to help clean up dirty and dangerous AC voltage.

The Basic power conditioning includes a fast-acting metal oxide varistor (MOV) installed to clamp voltage spikes running between the incoming line and neutral leads. This level of conditioning also includes a capacitor to reduce the level of AC line interference that may be transmitted between the line and neutral leads.

Specifications

• INPUT VOLTAGE: 120vac, 60 Hz
• TECHNICAL CURRENT CAPACITY

  • JGJr, JG8LED, JG9, JG9NS, JG11-15: 12 Amps
  • JG11-20: 18 Amps
• CURRENT OVERLOAD PROTECTION

  • JGJr, JG8LED, JG9, JG9NS, JG11-15: 15 Amps
  • JG11-20: 20 Amps
• DIMENSIONS (inches)

  • JGJr: 1.75H x 19W x 4.5D
  • All other JG Series models: 1.75H x 19W x 7D
• WEIGHT (lbs)

  • JGJr: 4.0
  • JG8LED, JG9, JG9NS: 5.5
  • JG11-15, JG11-20: 6.0
• POWER CORD

  • JGJr, JG8LED, JG9, JG9NS: 15 Amps, 6 foot 16/3 SJT with NEMA 5-15P Plug
  • JG11-15: 15 Amps, 15 foot 16/3 SJT with NEMA 5-15P Plug
  • JG11-20: 20 Amps, 15 foot 12/3 SJT with NEMA 5-20P Plug
• POWER OUTPUT RECEPTACLES

  • JGJr: Six NEMA 5-15 (back)
  • JG8LED: Eight NEMA 5-15 (back)
  • JG9, JG9NS: Eight NEMA 5-15 (back), one NEMA 5-15 (front)
  • JG11-15, JG11-20: Nine NEMA 5-15 (back), one NEMA 5-15 (front)
• AC LINE FILTRATION: Line Capacitor (Line & Neutral)
• VOLTAGE SPIKE PROTECTION: Metal Oxide Varistor (Line & Neutral)
• WARRANTY

  • JGJr: One year
  • All other JG Series models: Three years
