19" PDU 9 out No switch 15A

SKU: JG-JG9NS
MSRP: $134.00
MAP: $114.00

Overview

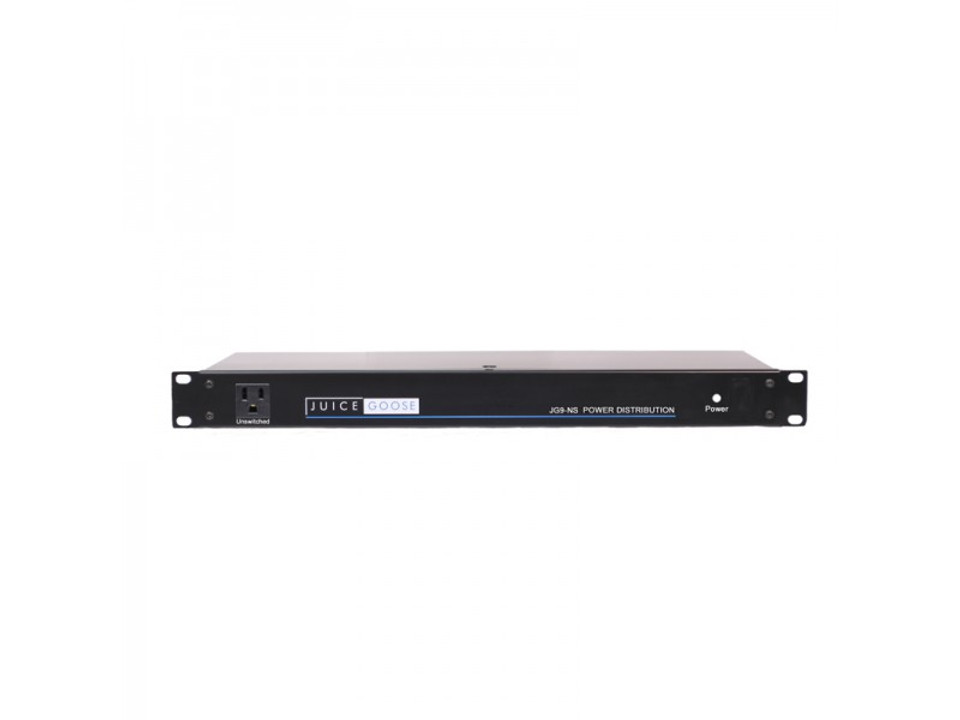

The Juice Goose JG9NS features a full 7 inch deep rack mounted chassis with current overload protection, one unswitched outlet on the front and 8 unswitched outlets on the back, rotated 90 degrees to better accommodate "wall wart" power supplies. Instead of a power switch on the front panel, the JG9NS has a power indicator LED to show the product is plugged into and receiving utility power. This product is rated at fifteen amps and is enclosed in a black steel chassis. Includes basic AC line conditioning and spike protection.

The JG Series family of commercial grade power and light modules includes five high quality, economical models that are valuable accessories for any rack-mounted system. The switched outlets on the back of each unit provide power while the discreet components inside provide a basic level of protection to help clean up dirty and dangerous AC voltage.

The Basic power conditioning includes a fast-acting metal oxide varistor (MOV) installed to clamp voltage spikes running between the incoming line and neutral leads. This level of conditioning also includes a capacitor to reduce the level of AC line interference that may be transmitted between the line and neutral leads.

Specifications

  • INPUT VOLTAGE: 120vac, 60 Hz
  • TECHNICAL CURRENT CAPACITY
    • JGJr, JG8LED, JG9, JG9NS, JG11-15: 12 Amps
    • JG11-20: 18 Amps
  • CURRENT OVERLOAD PROTECTION
    • JGJr, JG8LED, JG9, JG9NS, JG11-15: 15 Amps
    • JG11-20: 20 Amps
  • DIMENSIONS (inches)
    • JGJr: 1.75H x 19W x 4.5D
    • All other JG Series models: 1.75H x 19W x 7D
  • WEIGHT (lbs)
    • JGJr: 4.0
    • JG8LED, JG9, JG9NS: 5.5
    • JG11-15, JG11-20: 6.0
  • POWER CORD
    • JGJr, JG8LED, JG9, JG9NS: 15 Amps, 6 foot 16/3 SJT with NEMA 5-15P Plug
    • JG11-15: 15 Amps, 15 foot 16/3 SJT with NEMA 5-15P Plug
    • JG11-20: 20 Amps, 15 foot 12/3 SJT with NEMA 5-20P Plug
  • POWER OUTPUT RECEPTACLES
    • JGJr: Six NEMA 5-15 (back)
    • JG8LED: Eight NEMA 5-15 (back)
    • JG9, JG9NS: Eight NEMA 5-15 (back), one NEMA 5-15 (front)
    • JG11-15, JG11-20: Nine NEMA 5-15 (back), one NEMA 5-15 (front)
  • AC LINE FILTRATION: Line Capacitor (Line & Neutral)
  • VOLTAGE SPIKE PROTECTION: Metal Oxide Varistor (Line & Neutral)
  • WARRANTY
    • JGJr: One year
    • All other JG Series models: Three years
