19" PDU 8 out LED lights.15A

SKU: JG-JG8LED
MSRP: $236.00
MAP: $200.00

Overview

FEATURING LED LIGHTING

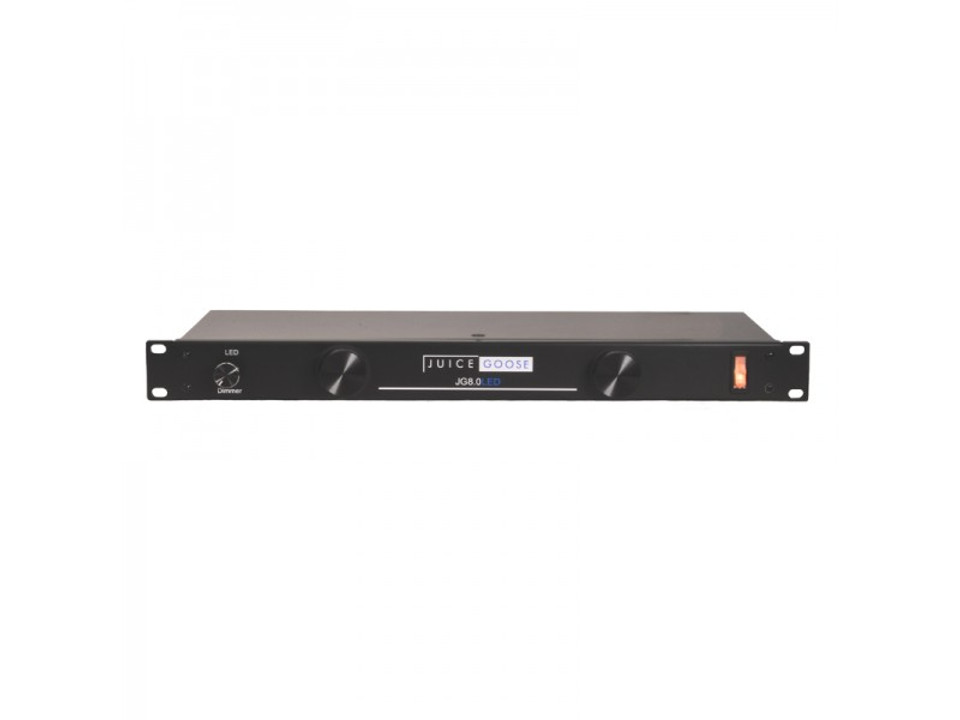

The Juice Goose JG 8LED features two long lasting, cool-to-the-touch, dimmable LED lights, housed in anodized black aluminum tubes that slide into the chassis when not in use.

The JG Series family of commercial grade power and light modules includes six great, economical models that are valuable accessories for any rack-mounted system. The switched outlets on the back of each unit provide power while the discreet components inside provide a basic level of protection to help clean up dirty and dangerous AC voltage. The JG Series products provide this fast acting protection for incoming AC power. The Basic power conditioning includes a fast-acting metal oxide varistor (MOV) installed to clamp voltage spikes running between the incoming line and neutral leads. This level of conditioning also includes a capacitor to reduce the level of AC line interference that may be transmitted between the line and neutral leads.
LIGHTS

The JG 8LED features two slide out, dimmable LED lights that are brighter and more reliable than incandescent bulbs. Each light tube can be rotated to control the direction of the two light beam. After use, the lights slide inside the chassis to store conveniently away.

Specifications

  • INPUT VOLTAGE: 120vac, 60 Hz
  • TECHNICAL CURRENT CAPACITY
    • JGJr, JG8LED, JG9, JG9NS, JG11-15: 12 Amps
    • JG11-20: 18 Amps
  • CURRENT OVERLOAD PROTECTION
    • JGJr, JG8LED, JG9, JG9NS, JG11-15: 15 Amps
    • JG11-20: 20 Amps
  • DIMENSIONS (inches)
    • JGJr: 1.75H x 19W x 4.5D
    • All other JG Series models: 1.75H x 19W x 7D
  • WEIGHT (lbs)
    • JGJr: 4.0
    • JG8LED, JG9, JG9NS: 5.5
    • JG11-15, JG11-20: 6.0
  • POWER CORD
    • JGJr, JG8LED, JG9, JG9NS: 15 Amps, 6 foot 16/3 SJT with NEMA 5-15P Plug
    • JG11-15: 15 Amps, 15 foot 16/3 SJT with NEMA 5-15P Plug
    • JG11-20: 20 Amps, 15 foot 12/3 SJT with NEMA 5-20P Plug
  • POWER OUTPUT RECEPTACLES
    • JGJr: Six NEMA 5-15 (back)
    • JG8LED: Eight NEMA 5-15 (back)
    • JG9, JG9NS: Eight NEMA 5-15 (back), one NEMA 5-15 (front)
    • JG11-15, JG11-20: Nine NEMA 5-15 (back), one NEMA 5-15 (front)
  • AC LINE FILTRATION: Line Capacitor (Line & Neutral)
  • VOLTAGE SPIKE PROTECTION: Metal Oxide Varistor (Line & Neutral)
  • WARRANTY
    • JGJr: One year
    • All other JG Series models: Three years
