Overview

Three Sequence 15 AMP Power Distribution System with Remote Control Capability

This is a great product for applications where AC power protection is needed for several pieces of equipment that need to be controlled and sequenced. The CQ-1515 has a fifteen amp capacity. In addition to sequenced activation and remote control, it provides superior surge protection for sensitive electronic audio, video and data processing equipment.

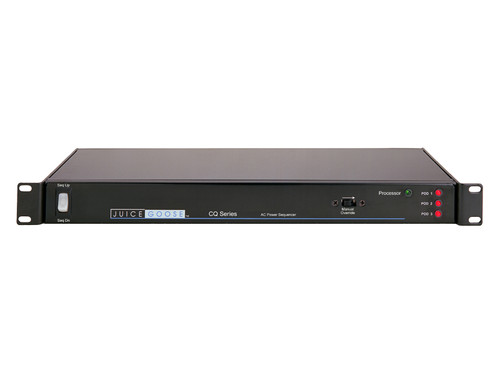

The CQ-1515 is a single space rack mount device featuring 7 AC power outputs on the rear of the chassis with a combined rating of 15 amps. One output is unswitched. The remaining 6 outputs are grouped into 3 Power Pods of two outputs each. Each Power Pod is an individual sequence event. All outputs have Juice Goose quality surge and spike protection with front panel LED monitoring.

Because the CQ-1515 has a self contained sequencing circuit, it can be the master or slave in a power sequencing system. Eight wire RJ-45 cable can be connected to this unit's Signal Input and/or Signal Output connectors to link it's operations with other CQ or control devices.

Surge Protection & LED Function

The CQ-1515 features replaceable, fast acting, triple stage AC surge protection across line and neutral without ground line contamination. This protection is designed to be durable and is expected to last for many years in a normally occurring power line environment.

A blue/red flashing Processor LED indicates the continuing operation of the circuit and logic that controls and drives the sequencer while protected from power line surges between line and neutral. Should the surge protection fail due to excessive surge exposure or an extreme power line event the Processor LED on the front of the CQ will blink red. To replace the surge protection contact Juice Goose for instructions and materials: 713-772-1404, info@juicegoose.com. Individual blue "Pod" LEDs are tied to the output of each of the sequencer relays. Each LED lights when its relay latches.

Processor LED Function: Blue/Red Flashing = Sequencer and Surge Protection OK. Blinking Red = Sequencer OK, Surge Protection Failure. Solid Blue or Off = Sequencer Failure Sequence Timing Adjustment

For CQ Series products, standard delay time between sequence up and sequence down events is 2 seconds. That can be adjusted in the CQ 1515 by changing position of two DIP switches located on the main control circuit board. Timing options are 2 seconds (standard), 10 seconds, 20 seconds and 30 seconds. Detailed instructions about making those changes are included in the CQ Series Manual.

Specifications

• Chassis: Tour Class (tm) 16 gauge steel with 11 gauge rack mount brackets
• Dimensions: 1.75”H x19”W x 7”D
• Weight: 10 lbs
• Circuit Breaker (thermal on back of the chassis)

  • CQ 1515: 15 Amp
  • CQ 1520: 20 Amp
• Replaceable Surge Protection

  • Design: Triple MOV surge protection hot and neutral. No ground contamination.
  • Maximum Clamping Voltage: 340 Volts @ 100 Amps
  • Energy Absorption: 300 Joules
  • Peak Surge Current (Single Pulse): 10,000 Amps
• Number of Sequence Events: Three
• Sequence Delay (seconds): Selectable 2, 10, 20 or 30
• Power Input (seven foot power cord)

  • CQ-1515 14/3 SJ with NEMA 5/15P plug
  • CQ-1520 12/3 SJ with 5/20P (requires a 5/20R receptacle)
• Power Output (plus one unswitched NEMA 5/15R on back of the chassis)

  • CQ-1515 six sequenced NEMA 5/15R
  • CQ-1520 six sequenced NEMA 5/20R
• Input Voltage: US standard (120 VAC @60Hz)
• Signal Connections: RJ-45, eight wire cable
• Monitor Features

  • POD 1, 2 and 3: Indicate power activation
  • Processor

    • Blue/Red Blinking: Processor and surge protection are functioning
    • Red Blinking: Surge protection fault
    • Blue Solid or Off: Sequencer fault
