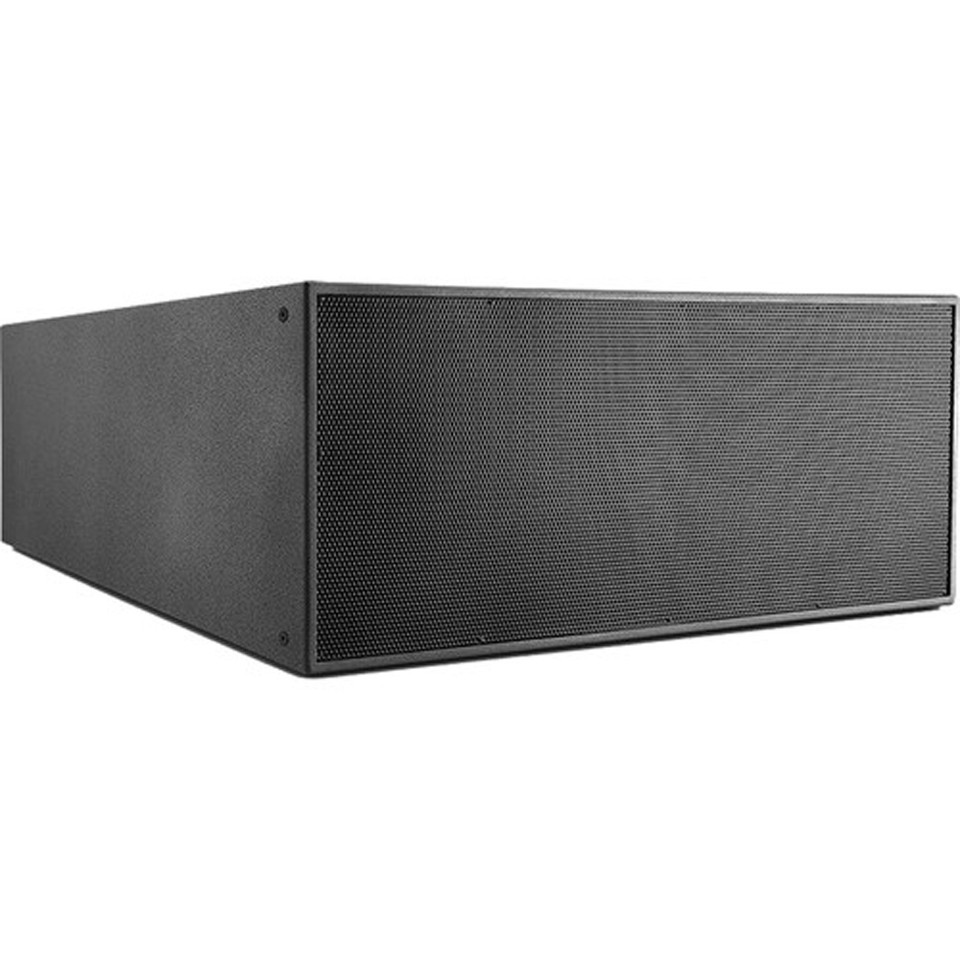

JBL VLA301HI

Three-way horn-loaded line array system

SKU: JBL-P3269MX

MSRP: $18,500.00

MAP: $18,500.00

Description

Overview

High Output Three-Way Full Range Loudspeaker with 2 x 15" LF, 4 x 8" MF, 6 x 1.5" exit HF 30° Horizontal Dispersion

Variable Line Array Series (VLA Series) is a revolutionary product providing high-impact sound reinforcement at throw distances beyond the reach of traditional loudspeaker designs.

Features

Line array module optimized for permanent install applications.
High output version featuring 6 HF drivers, 4 MF drivers, & 2 LF drivers.
Advanced technology component transducers for low weight and high output.
Comprehensive rigging points for creating a line array configuration.
Rugged DuraFlex™ exterior finish and weatherized components. JBL's WRC or WRX weather protections
also available.

Specifications

Frequency Range (-10dB): 39 Hz - 19.2 kHz
Frequency Response (-6 dB): 43 - 19kHz
Frequency Response (-3 dB): 48 - 17.4kHz
Horizontal Coverage: 30º Nominal (900 - 16kHz)
Vertical Coverage: Varies with Array size and configuration
System Power Ratings (AES): LF: 1000W Continuous (IEC /100 hour) MF: 400W Continuous (IEC /100 hour) HF: 160W Continuous (IEC /100 hour)
Maximum SPL (1m): 151.1dB (Preset: Flat)
LF Driver: 2 x JBL 2265H, 15in diameter, dual 3in diameter voice coil, Neodymium Differential Drive
Nominal Impedance: 4 ohms
Sensitivity (2.83V @ 1m): LF: 99dB/96dB, MF: 105dB/105dB, HF:115db/112dB
Mid-Frequency Driver: 4 x JBL 2169H, 8in diameter, dual 3in diameter voice coil, Neodymium Differential Drive
High-Frequency Driver: 6 x JBL 2432H, 1.5in exit compression driver, 3in diameter voice coil, Neodymium Magnet
Enclosure: 18mm and 16mm, Exterior grade Baltic birch plywood, DuraFlexTM finish or optional Fiberglass
Suspension Attachments: 16 points (4 each top bottom & rear, 2 each side), M10 threaded hardware (eyebolts NOT included).
Finish: Black DuraFlexTM (STD), Gray DuraFlexTM (WRC), Gray Fiberglass (WRX), optional colors; Stainless Steel Hardware (WRC/WRX)
Optional Weather Resistant Versions: WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperatures. See WRC/WRX configuration sheet for details.
Grille: Powder coated 14 gauge perforated steel, zinc-phosphate dipped, acoustically transparent foam backing (grill cloth backing on white units) (16 gauge stainless steel on WR versions)
Input Connectors: Barrier Strip for #6 spade lug, including gland nut and cover plate
Environmental: Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
Dimensions (H x W x D): 528.3mm x 1346.2mm x 1379.2mm (20.8in x 53.0in x 54.3in)
Net Weight: 154.7kg (341.0lbs)
