Overview

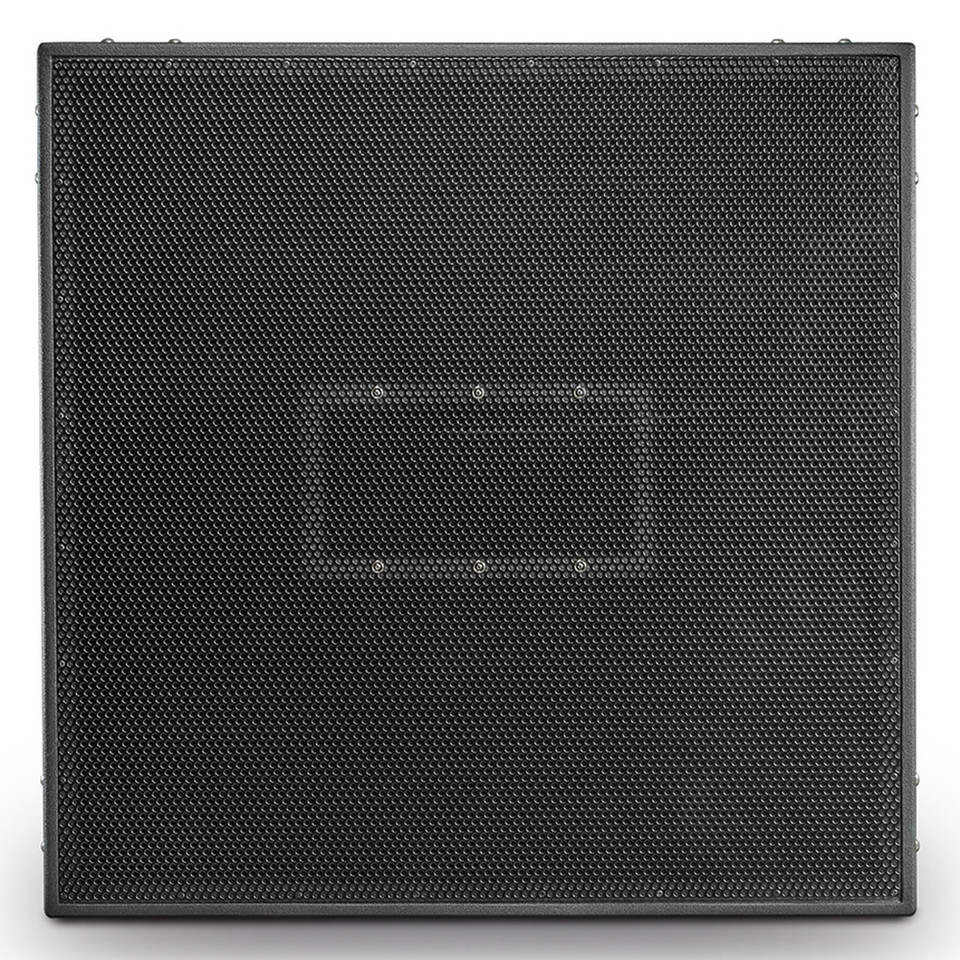

The PD764 Precision Directivity loudspeaker provides high-impact sound reinforcement at throw distances that are beyond the reach of single-driver designs. A single module produces greater than 104 dB SPL (continuous) at distances of 50 m (165 ft). The PD764 may be used in clusters with other PD family modules or singly as part of a distributed system. PD100 series low-frequency elements may be added to the array to extend bandwidth and pattern control to the lowest octaves.
Features
- 60 by 40 Coverage Pattern-symmetrical frontal dimensions allow horizontal or vertical orientation within an array.
- IFS Interference Free Summation dual HF driver module eliminates destructive interference and increases output by 6 dB.
- Dual 8 in horn loaded cone mid frequency drivers provide 6 dB greater output than traditional designs.
- Pattern control maintained to below 400 Hz.
- Co-axial mid / high-frequency module layout improves mid frequency arrayability and minimizes size.
- Integrated rigging system simplifies array design and construction.
Specifications
| Frequency Range | 150 Hz - 17 kHz (-10 dB) | |
| Frequency Response | 200 Hz – 15 kHz (+/- 3 dB) | |
| Coverage Angle | 40° x 30° | |
| Directivity Index (DI) | 15 dB | |
| Recommended Crossover Frequencies | 225 Hz, 1.5 kHz | |
| Nominal Impedance | MF: 8 Ohms HF: 16 Ohms |
|
| Input Power Rating | MF: 700 W AES (2800 W peak) HF: 150 W AES (600 W peak) |
|
| Sensitivity | MF: 111 dB, 1 W @ 1 m (3.3 ft) HF: 118 dB, 1 W @ 1 m (3.3 ft) |
|
| Calculated Maximum SPL | MF: 139 dB Continuous; 145 dB Peak HF: 140 dB Continuous; 146 dB Peak SPL @ 1 m (3.3 ft) |
|
| Mid Frequency | 2 x 2250J - 203 mm (8 in) cone, Dual 75 mm (3 in) edgewound ribbon voicecoil, NDD™ motor structure | |
| High Frequency | 2 x 2430H - 75 mm (3 in) diaphragm, 38 mm (1.5 in) aperture, neodymium magnet |
|
| Enclosure | Dual Trapezoidal, 25° vertical, 35° horizontal; birch plywood | |
| Suspension Attachment | M10 threaded points, 24 total; 40° by 30° Coverage Pattern–symmetrical frontal dimensions |
|
| Finish | lack DuraFlex™ coating (white & custom colors optional) | |
| Grille | Black powder coated zinc treated 14 gauge perforated steel with black foam backing (white & custom colors) | |
| Input Connector | Neutrik NL4 Speakon (Options:barrier strip or captive cable) | |
| Dimensions (H x W x D) | 991 x 991 x 1102.36 mm (39 x 39 x 43.4 in) |
|
| Net Weight | 245 lb, 111.4 kg |
