Overview

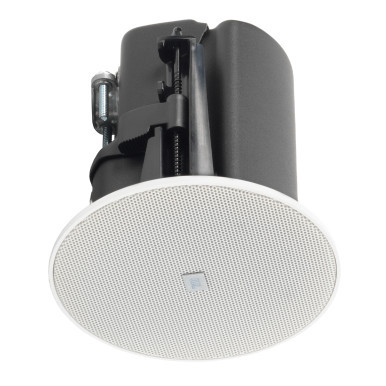

The JBL Control 442C/T, part of the flagship Control 400 Premium Coverage Series, is a compact ceiling loudspeaker, featuring a 2.5” driver and an integrated enclosure that is ideal for installation in most ceiling plenum spaces.
Control 400 Series ceiling speakers boast thoughtfully engineered mounting features to enhance safety, efficiency, and repeatability. Terminal covers allow for convenient top or side cable entry and are secured effortlessly with captive hand-screws. The reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment.
All models embrace design elements tailored for modern interiors. The included full-face magnetic grille is paintable for seamless integration into any decor, while available black and square grilles provide added customization. Additionally, the Control 442C/T supports both 70V/100V and low impedance applications.
Features
- 63.5 mm (2.5 in) driver
- Integrated enclosure that is ideal for installation in most ceiling plenum spaces
- Built-in 70V/100V multi-tap transformer, plus 16-ohm direct input
- Full-face, easily paintable magnetic grilles
- Top and side cable entry options
- Robust and adaptable dogears for wide range of ceiling thicknesses
- IP33 rated
Specifications
- Frequency Range (-10 dB)130Hz - 20kHz
- Power Capacity22.5 W (90 W Peak), Cont. Pink Noise (2 hrs.)
- 15 W (60 W Peak) Cont. Pink Noise Power (100 hrs.)
- Sensitivity (1m/1W)86dB
- Coverage Angle160° conical
- Maximum SPL (1m)99.5 dB Cont. pink noise (105.5 dB peak)
- Nominal Impedance16Ω
- Transformer Taps70 V: 12 W, 6 W & 3 W
- 100 V: 12 W, 6 W
- Drivers60 mm (2.5 in) Full Range driver with paper cone, Rubber surround, CCAW coil
- Ceiling Cutout Size104 mm (4.1 in)
- Dimensions138 mm (5.4 in) H x 131 mm (5.2 in) dia.
- 129 mm (5.1 in) from bottom of ceiling tile to top of backcan
- Safety Agency RatingSuitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
- EnvironmentalIP rating: IP33 per EN/IEC 60529.
- Operating temperature: 0° C to 45 °C.
- Optional AccessoriesJBL-MTC-442BG black (RAL9004) round grille
- JBL-MTC-442SG white (RAL9003) square grille
- JBL-MTC-442NC new construction bracket
- JBL-MTC-442MR mud-ring construction bracket
- JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
- ColorStock grille is White (RAL9003), paintable
- Net Weight (ea)1.1 kg (2.43 lbs)
- Shipping Weight (pair)3.22 kg (7.1 lbs)
