Overview

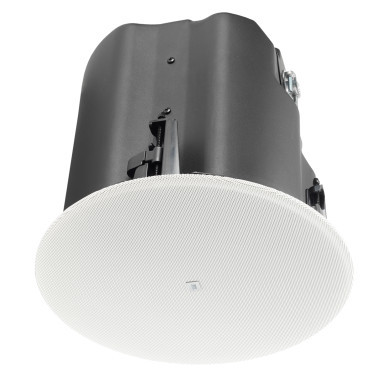

The JBL Control 418C/T, part of the Control 400 Standard Coverage Series, is a two-way coaxial ceiling loudspeaker, featuring an 8” woofer and an integrated enclosure that is ideal for installation in most ceiling plenum spaces.
All Control 400 Series models are designed to blend seamlessly into modern interiors. The included full-face magnetic grille is paintable for integration into any decor, while available black round and white square grilles provide added customization.
The Control 418C/T includes thoughtfully engineered installation features to enhance safety, efficiency, and repeatability. The terminal cover allows for convenient top or side cable entry and the reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment. Additionally, the Control 418C/T supports both 70V/100V and low impedance applications.
Features
- 200 mm (8 in) woofer and 25mm (1 in) soft-dome tweeter
- Integrated enclosure that is ideal for installation in most ceiling plenum spaces
- Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input
- Full-face, easily paintable magnetic grilles
- Top and side cable entry options
- Robust and adaptable dogears for wide range of ceiling thicknesses
- IP33 rated
Specifications
- Frequency Range (-10 dB)57Hz - 20kHz
- Power Capacity135W (540W Peak) Cont. Pink Noise (2 hrs)
- 90W (360W Peak) Cont. Pink Noise (100 hrs)
- Sensitivity (1m/1W)92dB
- Coverage Angle100° conical
- Maximum SPL (1m)113 dB continuous pink noise (119 dB peak)
- Nominal Impedance8Ω
- Transformer Taps70 V: 60 W, 30 W, 15 W & 7.5 W
- 100 V: 60 W, 30 W, 15 W
- DriversLF: 200 mm (8 in) with paper cone, SBR surround
- HF: 25 mm (1 in) soft dome
- Ceiling Cutout Size282 mm (11.1 in)
- Dimensions283 mm (11.3 in) H x 315 mm (12.6 in) dia.
- 271 mm (10.8 in) from bottom of ceiling tile to top of backcan
- Safety Agency RatingSuitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
- EnvironmentalIP rating: IP33 per EN/IEC 60529.
- Operating temperature: 0° C to 45 °C.
- Optional AccessoriesJBL-MTC-418BG black (RAL9004) round grille
- JBL-MTC-418SG white (RAL9003) square grille
- JBL-MTC-447NC new construction bracket
- JBL-MTC-447MR mud-ring construction bracket
- JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
- ColorStock grille is White (RAL9003), paintable
- Net Weight (ea)5.8 kg (12.79 lbs)
- Shipping Weight (pair)17.72 kg (39.07 lbs)
