Overview

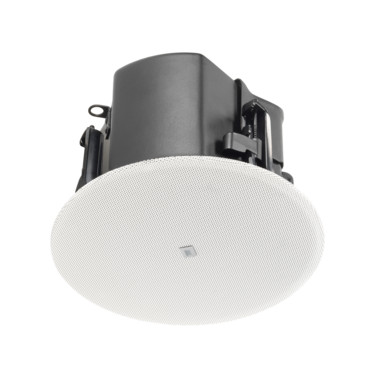

The JBL Control 412C/T-VA, part of the Control 400 Standard Coverage Series, is a full-range ceiling loudspeaker, featuring a 3” driver and an integrated enclosure that is ideal for installation in most ceiling plenum spaces. This model is EN54-24 certified, making it suitable for life safety applications.
All Control 400 Series models are designed to blend seamlessly into modern interiors. The included full-face magnetic grille is paintable for integration into any decor, while available black round and white square grilles provide added customization.
The Control 412C/T-VA includes thoughtfully engineered installation features to enhance safety, efficiency, and repeatability. The terminal cover allows for convenient top or side cable entry and the reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment. Additionally, the Control 412C/T-VA supports both 70V/100V and low impedance applications.
Features
- 76 mm (3 in) full-range driver
- Integrated enclosure that is ideal for installation in most ceiling plenum spaces
- Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input
- Full-face, easily paintable magnetic grilles
- Top and side cable entry options
- Robust and adaptable dogears for wide range of ceiling thicknesses
- IP33 rated
- EN54-24 Certified for Standard for Life Safety applications
Specifications
| Frequency Range (-10 dB) | 68Hz - 17kHz |
| Power Capacity | 30W (120W Peak) Cont. Pink Noise (2 hrs) 20W (80W Peak) Cont. Pink Noise (100 hrs) |
| Sensitivity (1m/1W) | 84dB |
| Coverage Angle | 160° conical |
| Maximum SPL (1m) | 99 dB continuous pink noise (105 dB peak) |
| Nominal Impedance | 8Ω |
| Transformer Taps | 70 V: 15 W, 7.5 W, 3.8 W & 1.9 W 100 V: 15 W, 7.5 W, 3.8 W |
| Drivers | 76 mm (3 in) full range driver with paper cone and SBR surround |
| Ceiling Cutout Size | 168 mm (6.6 in) |
| Dimensions | 163 mm (6.5 in) H x 203 mm (8.1 in) dia. 154 mm (6.2 in) from bottom of ceiling tile to top of gland nut. |
| Safety Agency Rating | EN 54-24:2008 certified Type A. Designed in accordance with BS 5839-8 and EN 50849. Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer. |
| Environmental | IP rating: IP33 per EN/IEC 60529. Operating temperature: 0° C to 45 °C. |
| Optional Accessories | JBL-MTC-414BG black (RAL9004) round grille JBL-MTC-414SG white (RAL9003) square grille JBL-MTC-414WG white (RAL9003) weather grille JBL-MTC-424NC new construction bracket JBL-MTC-424MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles |
| Color | Stock grille is White (RAL9003), paintable (please read the user manual before painting) |
| Net Weight (ea) | 1.76 kg (3.88 lbs) |
| Shipping Weight (pair) | 7.94 kg (17.5 lbs) |
| SKU Numbers | JBL-C412C/T-VA |
