Overview

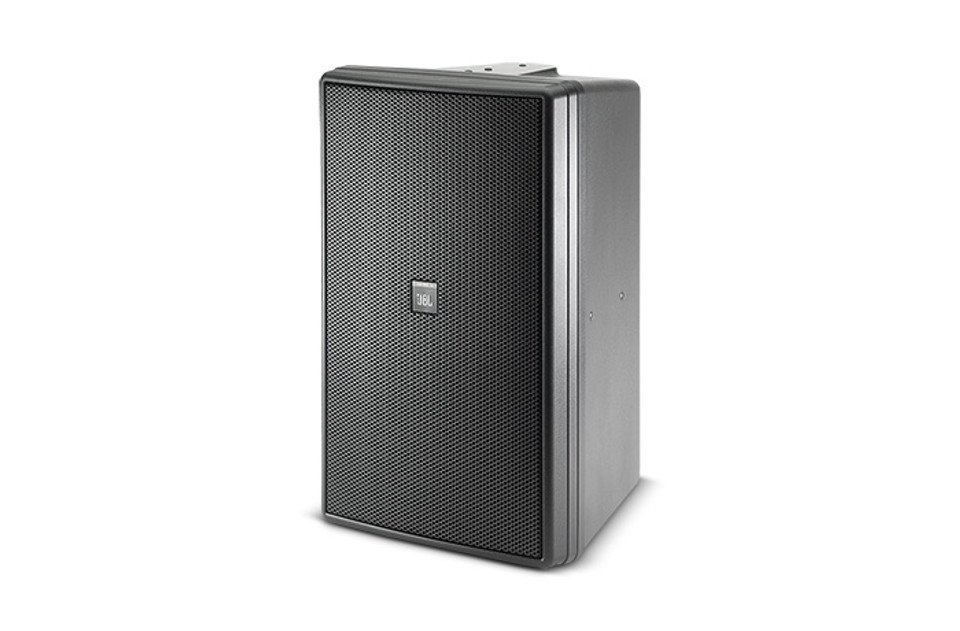

Three-Way High Output Indoor / Outdoor Monitor Speaker
The Control 30 utilizes high power components, computer optimized horn and coaxial component design, patent-pending cabinet manufacturing techniques, and a complex network to achieve smooth high fidelity performance, extended bandwidth and well-controlled, defined coverage from a compact loudspeaker.
Features
- Extended bandwidth, extremely smooth frequency response.
- Fully outdoor-capable design, featuring WeatherMax™.
- 120° x 110° HF coverage.
- 150 W transformer for 70 V or 100 V lines, with 8 thru.
- SonicGuard® overload protection.
- 250 mm (10 in) fiberglass / Kevlar® cone LF woofer, with neodymium magnet coaxial 125 mm (5 in) anodized aluminum cone MR, and 25 mm (1 in) titanium diaphragm compression driver.
- Includes InvisiBall® mounting hardware, plus ten 6 mm attachment points for suspension and optional U-bracket.
- Sealed input panel cover and screw-down input terminals.
Specs
| Frequency Range | 38 Hz – 17 kHz (-10 dB) | |
| Power Capacity | 500 W Continuous Program Power; 250 W Continuous Pink Noise | |
| Transformer Taps | 70 V: 150 W, 75 W, 38 W, 19 W 100 V: 150 W, 75 W, 38 W Thru Position: 4 ohms nominal |
|
| Frequency Response | 40 Hz – 16 kHz ( ± 3 dB) | |
| Maximum SPL @ 1m | Short-Term: 123 dB; Long-Term: 117 dB | |
| Nominal Sensitivity | 93 dB, 1W @ 1m (3.3 ft) | |
| Nominal Coverage Angle | 120° H x 110° V | |
| Directivity Factor (Q) | 5.2 dB, averaged 500 Hz to 10 kHz | |
| Directivity Index (DI) | 7.1 dB, averaged 500 Hz to 10 kHz | |
| Nominal Impedance | 4 ohms | |
| Crossover Network | 3rd order Low Pass LF, 2nd order High Pass/3rd order Low Pass MF, 3rd order High Pass, HF, plus conjugate shaping circuitry. | |
| Low Frequency | 250 mm (10 in) fiberglass/Kevlar® cone with pure butyl rubber surround, 50 mm (2 in) voice coil on fiberglass former, neodymium magnet | |
| Mid Frequency | 125 mm (5 in) anodized aluminum cone with EPDM rubber (Terpolymer of Ethylene and Propylene) surround, 25 mm (1 in) voice coil on fiberglass former | |
| High Frequency | 25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround | |
| Enclosure Material | High Impact PolyStyrene (HIPS) with 10% glass fill plus patent pending internal 5 mm foamed polyurethane secondary mold | |
| Grille | Thermoset composite coated steel, WeatherMax multi-layer foam | |
| Overload Protection | SonicGuard full range power limiting to protect network and transducers. | |
| Environmental | IEC 529 IP-X5 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray. | |
| Terminations | Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open | |
| Safety Agency Rating | Transformer is listed per UL1876 | |
| Colors | Black or white (-WH) | |
| Dimensions (H x W x D) | 593 x 372 x 345 mm (23.3 x 14.6 x 13.5 in.) | |
| Net Weight (ea) | 18.9 kg (42 lb) | |
| Shipping Weight (ea) | 20.3 kg (45 lb) | |
| Included Accessories | 1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 305 mm InvisiBall Hex wrench. | |
| Optional Accessories | MTC-30CM (-WH) to install speaker down from the ceiling. MTC-30UB (-WH) U-Bracket |
