Overview

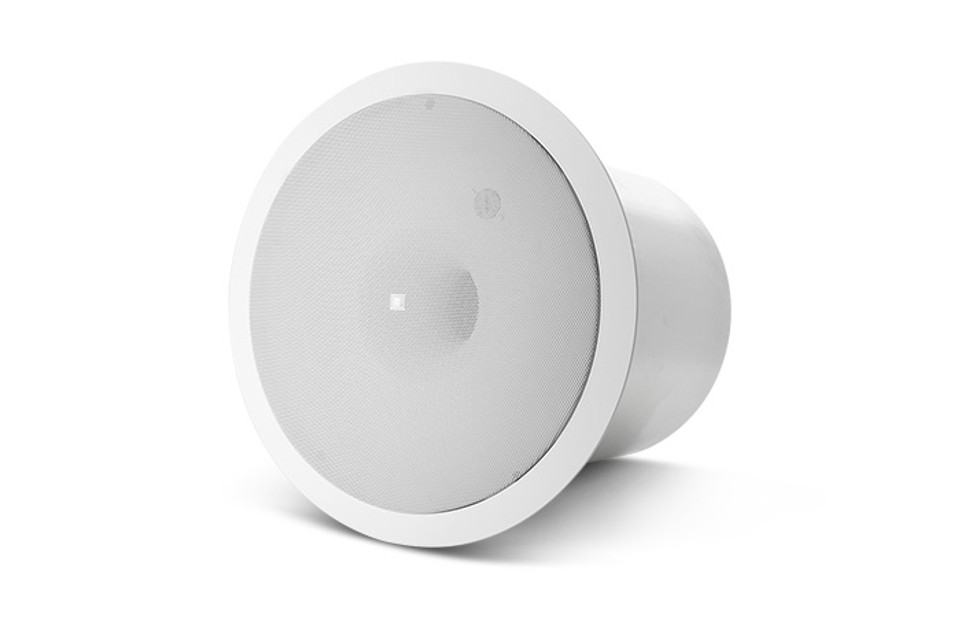

The Control 19CS uses advanced proprietary technologies to produce powerful bass from a low profile in-ceiling design.
Features
- Unique Nested Chamber™ design and Linear Dynamic Aperture™ port design delivers high output from a compact enclosure.
- JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved
system reliability. - Component: Long excursion 200 mm (8 in) driver.
- Packaged with grille, backcan and tile rails for fast installation and easy stocking.
- Simple installation and wire connection method.
Specs
| Frequency Range | 42 Hz - 200 Hz | |
| Power Capacity | 200 W Continuous Program Power | |
| Nominal Sensitivity | 95 dB SPL, 1W @ 1 m (3.3 ft) in ceiling near corner (π/2) 89 dB SPL, 1W @ 1 m (3.3 ft) in center of ceiling (2π) | |
| Nominal Coverage Angle | 180° conical coverage | |
| Rated Maximum SPL | 115 dB @ 1 m (3.3 ft) in ceiling near corner (π/2) | |
| Nominal Impedance | 8 ohms | |
| Low Frequency | 200 mm (8.0 in) Polypropelene cone. 38 mm (1.5 in) coil on aluminum former |
|
| Enclosure Material | Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0 | |
| Overload Protection | Full-range power limiting to protect network and transducers. (On Control 19CS, not on Control 19CST) | |
| Terminations | Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire size 12 AWG (2.5 mm2) | |
| Safety Agency Rating | In accordance with IEC60849 / EN60849. Suitable for use in air handling spaces, per U.L.-2043, U.L.-1480, NFPA90, NFPA70A. | |
| Outside Dimensions (H x Dia) | 345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to back of backcan |
|
| Cutout Size (H x W) | 305 mm (12.0 in) | |
| Net Weight (ea) | 5.5 kg (12 lb | |
| Shipping Weight (pair) | Control 19CS: T12.7 kg (28 lb) Control 19CST: 14.3 kg (32 lb) |
|
| Included Accessories | C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector |
