Overview

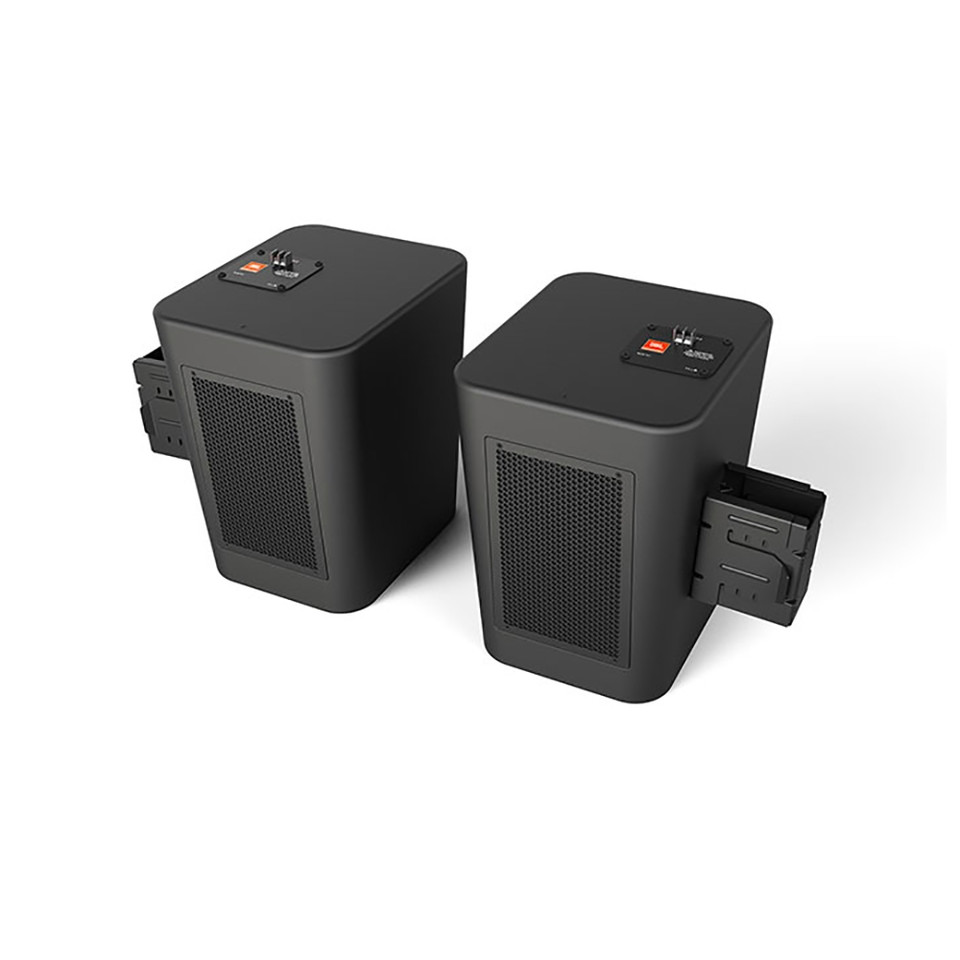

The CRF2 is designed to be used in solid screen cinemas, such as the Samsung Onyx Cinema LED Solutions. This product is designed to be mounted under the first or second surround and produces band-limited high-frequency content routed from the Left/Center/Right screen channels. The horn design in the CRF2 allows the product to be mounted flush to the wall and utilizes patented Dual Dissimilar Array technology for even distribution of high-frequency sound.
Features
- Dual Dissimilar Arraying coverage pattern for better high frequency coverage
- Same HF driver as the 3733
- Same mounting design as the 9300/9310 Surrounds
- Sold in Left/Right pairs
- Horn design includes a 30 degree angle which allows for a flush mount design (see polar plot for additional information)
- Designed to be used with the 2520 mounting bracket
Specifications
| Drivers | 2 x 2415J-XP 37.5 mm (1.5 in) compression driver |
| Rated Impedance | 8 Ohms |
| Minimum Impedance | 6.65 Ohms @ 20kHz |
| Frequency Response (-3dB) | 2.33kHz - 11.2kHz |
| Frequency Response (-10dB) | -10dB): 2.09kHz - 23kHz |
| Input Power Rating | 150 Watts AES 100 hours; 300 Watts recommended amplifier |
| Sensitivity | 102 dB, 2.83V @ 1m (3.3 ft) |
| Max Dimensions (H x W x D) | 508 mm x 439 mm x 368 mm (20 in x 17.3 in x 14.5 in) |
| Net Weight (each) | 11.3 kg (25 lb) |
| Shipping Weight (2 units) | 27.2 kg (60 lb) |
