Overview

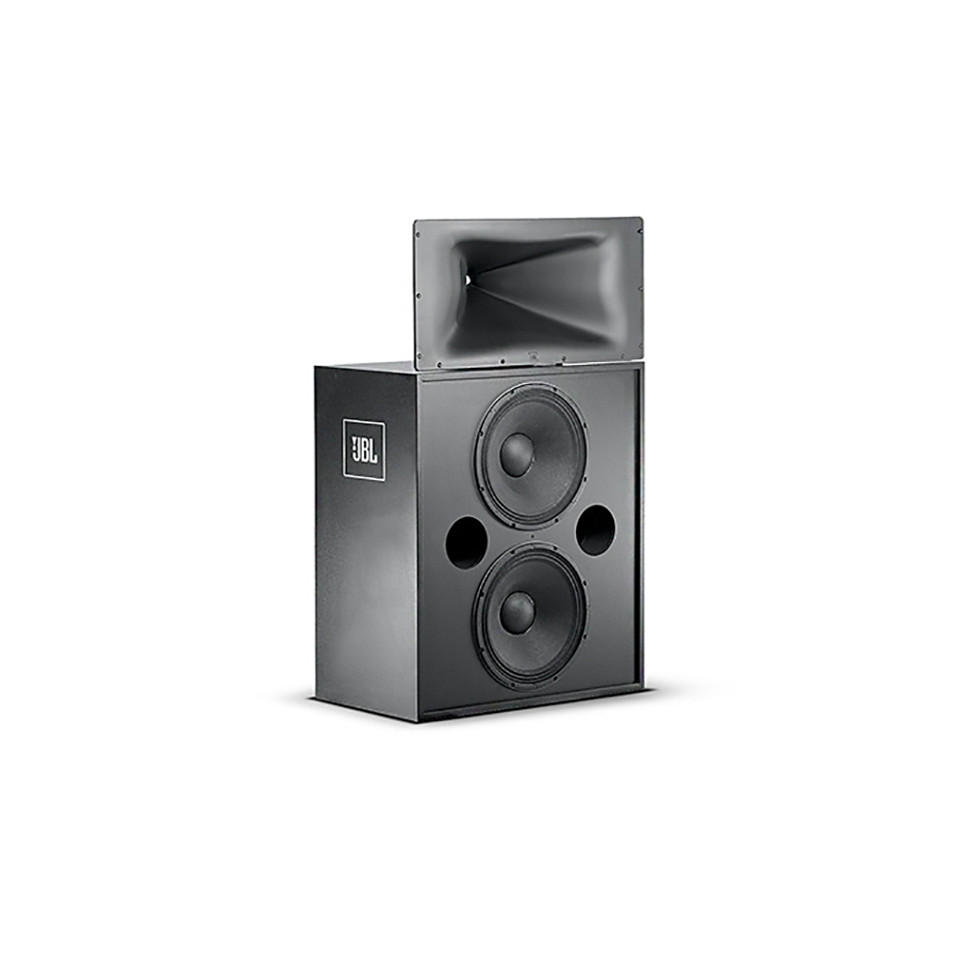

Two-Way ScreenArray™ Cinema Loudspeaker System
The 3722-HF provides smooth and accurate reproduction of cinema soundtracks in a compact and very cost effective system.
Features
- 3722 available as a Passive model with network (3722N) or BiAmp Ready 3722
- Power Capacity: 400 W continuous IEC pink noise
- Sophisticated crossover network
- High quality in a compact and very cost effective system
- Smooth response, Controlled coverage
Specifications
| Frequency Range | 30Hz to 18kHz |
| Frequency Response | 40 Hz - 18 kHz (±3 dB) |
| Sensitivity | 104dB, 2.83V @ 1m (3.3ft) |
| Nominal Impedance | 4 Ohms |
| Rated Maximum SPL | 127dB, @ 1m (3.3 ft) 133db peak |
| Passive System Input Power Rating | 400W |
| Crossover Frequency | 1300Hz |
| Dimensions (H x W x D) | 1265 x 762 x 450mm (49.8 x 30 x 17.75in) |
| Net Weight | 62.2 kg (137 lbs) |
| 3739 Low Frequency | 2 M115H-8A 380 mm (15 in) dia. 61 mm (2.5 in) edgewound ribbon voice coil transducers mounted in 4509 LF enclosure |
| Net Weight | 54.9 kg (121 lbs) |
| Shipping Weight | 63.6 kg (140 lbs) |
| 3722-HF High Frequency Pack | One 2418H-1 Compression Driver, One 2374 HF horn, one adjustable bracket |
| Net Weight | 7.3 kg (161 lbs) |
| Shipping Weight | 12.7 kg (28 lbs) |
