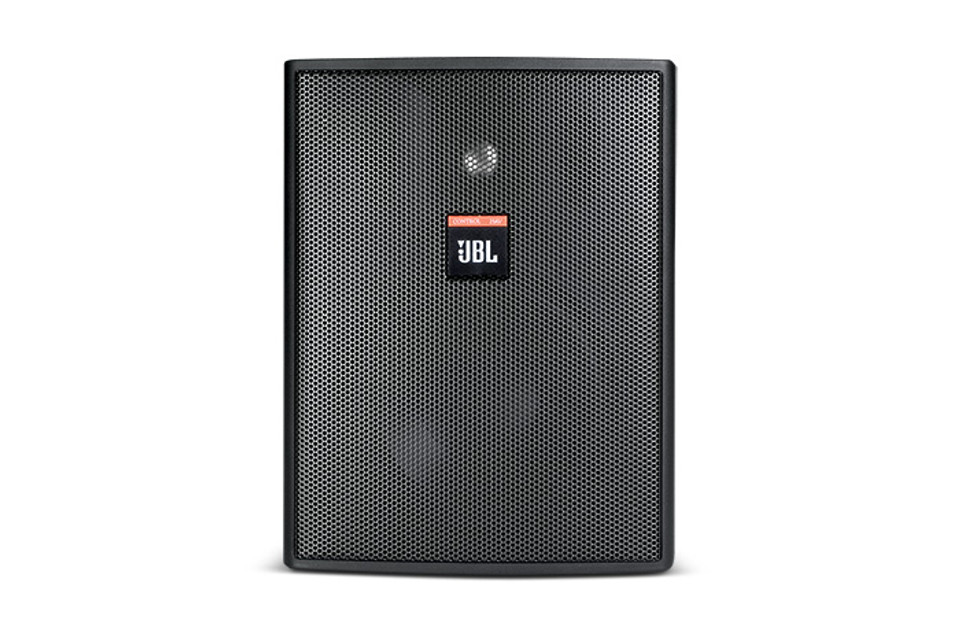

5.25" 2-WAY SURFACE-MT SPK, AV VERSION W EN54-24, BLK

SKU: JBL-C25AV-LS
MSRP: $302.48
MAP: $245.00

Overview

The Control 25AV-LS built on the same platform as our popular Control 25AV and is UL 1480 UUMW Listed for use in fire alarm and/or emergency communication systems.

Features

  • UL 1480 UUMW Listed for Use in Fire Alarm and/or Emergency Communication Systems; EN54-24 certified
  • Video shielded for use near video monitors.
  • Extremely smooth frequency response.
  • Aluminum Grille with Polyester Powder Coating for enduring reliability.
  • 60 W transformer for 70 V or 100 V lines, with 8 ohms thru.
  • SonicGuard overload protection.
  • 130 mm (5.25 in) polypropylene coated woofer, 10 mm (.75 in) titanium coated horn-loaded tweeter.
  • Includes InvisiBall mounting hardware and sealed input panel cover.
  • Screw-down input terminals.
  • 105 x 85 high frequency horn.

Specifications

  • Freq. Range (-10 dB) : 90 Hz - 20 kHz
  • Power Capacity : 200 Watts Continuous Program Power (at 8 ohm bypass mode)
  • 100 Watts Continuous Pink Noise (at 8 ohm bypass mode)
  • 60 Watts (at 60W tap setting)
  • Transformer Taps : 60W, 30W, 15W
  • (& 7.5W @ 70V)
  • Nominal Sensitivity : 87dB, 1W at 1m (1kHz-10kHz, ave., at 8 ohm bypass mode);
  • 71 dB, 1W at 4m per EN54-24 (100 Hz - 10 kHz, ave., 60W tap)
  • Nominal Coverage Angle : 110 x 85 (1kHz to 16kHz)
  • Directivity Factor (Q) : 4.8 (500 Hz to 4kHz)
  • Directivity Index (DI) : 107 dB @ 1 m (3.3 ft) average, 113 dB peak
  • Rated Maximum SPL : 8 ohms (in bypass mode)
  • LF Driver : 130mm (5.25 in) with polypropylene coated paper cone with
  • WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former
  • HF Driver : 20mm (.75 in) titanium coated PEI
  • Termination : Captive screw-down terminals, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug, plus bare wire up to 12 AWG (2.5 mm)
  • Cabinet Material : ABS, (materials rated UL94-5VA)
  • Grille : Aluminum with polyester powder coating
  • Environmental : Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, IEC 529 IP-x5 splashproof rating
  • Environmental : Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition
  • Safety Agency : UL1480-UUMW Listed, EN54-24 certified, NFPA90, NFPA70A, and in accordance with t
