Overview

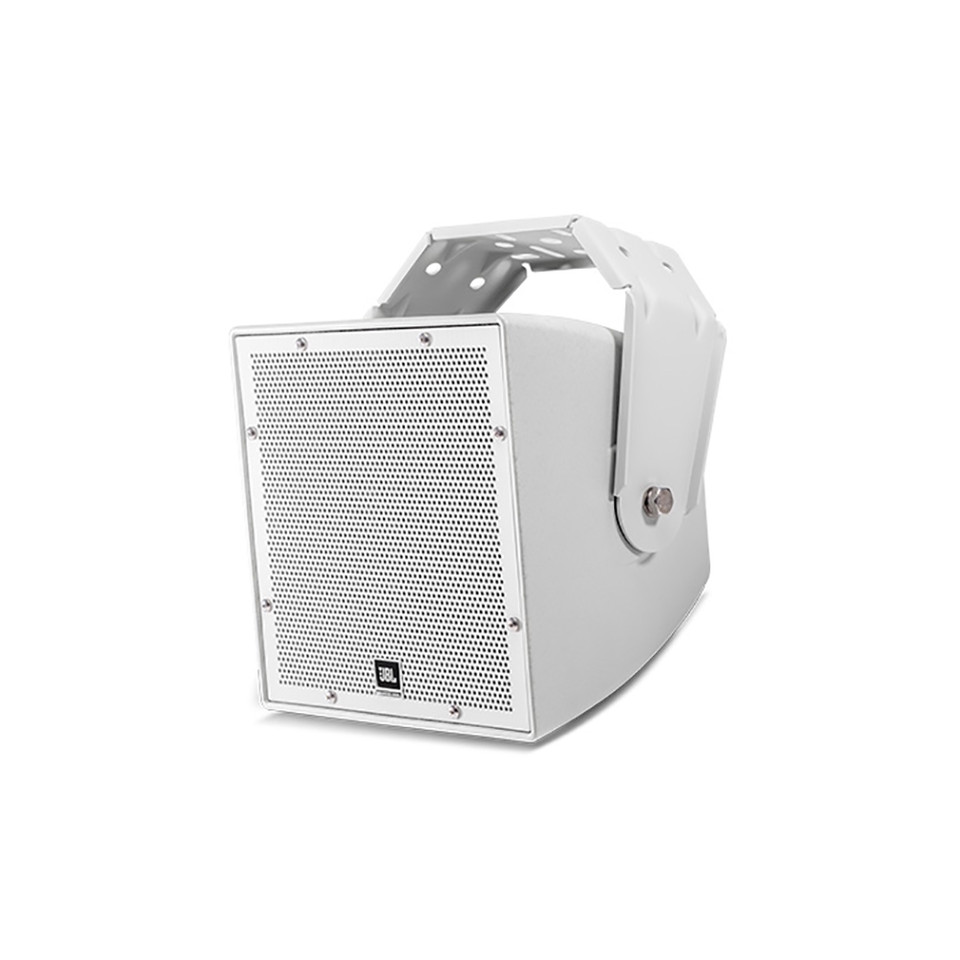

All-Weather Compact 2-Way Coaxial Loudspeaker with 6.5" LF
The AWC62 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music-fill in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.
Features
- Highly weather-resistant IP56 rating.
- Consistent 110° x 110° broadband pattern control.
- Components:
• 165 mm (6.5 in) woofer with Kevlar-reinforced cone and 38 mm (1.5 in) voice coil.
• 25 mm (1 in) exit compression driver - Extraordinary clarity for speech, with extended frequency response for music.
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
- 175 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
- High-power passive crossover network.
- Overload protection.
- 70 Hz – 18 kHz frequency response.
- 120 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance.
Specifications
| Frequency Range (-10 dB) | 70 Hz – 18 kHz |
| Frequency Response (±3 dB) | 100 Hz – 16 kHz |
| Coverage Pattern | 110º x 110º |
| Directivity Factor | 7.2 (1 k – 16 kHz) |
| Directivity Index (DI) | 7.9 dB (1 k – 16 kHz) |
| Long-Term System Power Rating (IEC) | 175 W 2 hrs. 120 W 100 hrs |
| Sensitivity (2.83V @ 1m) | 92 dB (Ave. 100 Hz – 18 kHz) |
| Maximum SPL | Direct 8Ω: 114 dB (peaks of 120 dB) 120 W Tap: 112 dB |
| Crossover Network | 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 3rd order low-pass to LF |
| Nominal Impedance | 8 ohms |
| Transformer Taps | 70V: 120W, 60W, 30W, 15W 100V: 120W, 60W, 30W |
| Low Frequency Driver | Kevlar-reinforced cone with weather treatment, 38 mm (1.5 in) voice coil. |
| High Frequency Driver | 25 mm (1 in) diaphragm and voice coil diameter |
| HF Driver Protection | Minimum audibility SonicGuard™ HF overload protection |
| Enclosure | ABS with Glass enclosure |
| Attachment | Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel. |
| Grille | Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing. |
| Input Connection | CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round- jacketed cables with outside diameters between 4.0 mm (0.16”) and 9.0 mm (0.36”). |
| Environmental | IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs). |
| Dimensions | 259 x 259 x 255 mm (10.2 x 10.2 x 10.1 in), cabinet 288 mm (11.4 in) including gland nut 309 mm (12.2 in) including bracket extending to back |
| Colors | Available in gray (similar to Pantone 420C) and black (-BK) |
| Net Weight | 6.8 kg (15.0 lb), 7.7 kg (17.0 lb) with U-bracket |
| Shipping Weight | 8.8 kg (19.5 lb) |
| Included Accessories | U-bracket, matches loudspeaker color (gray or black), zinc-rich extra thick powder coated, steel. |
