Overview:

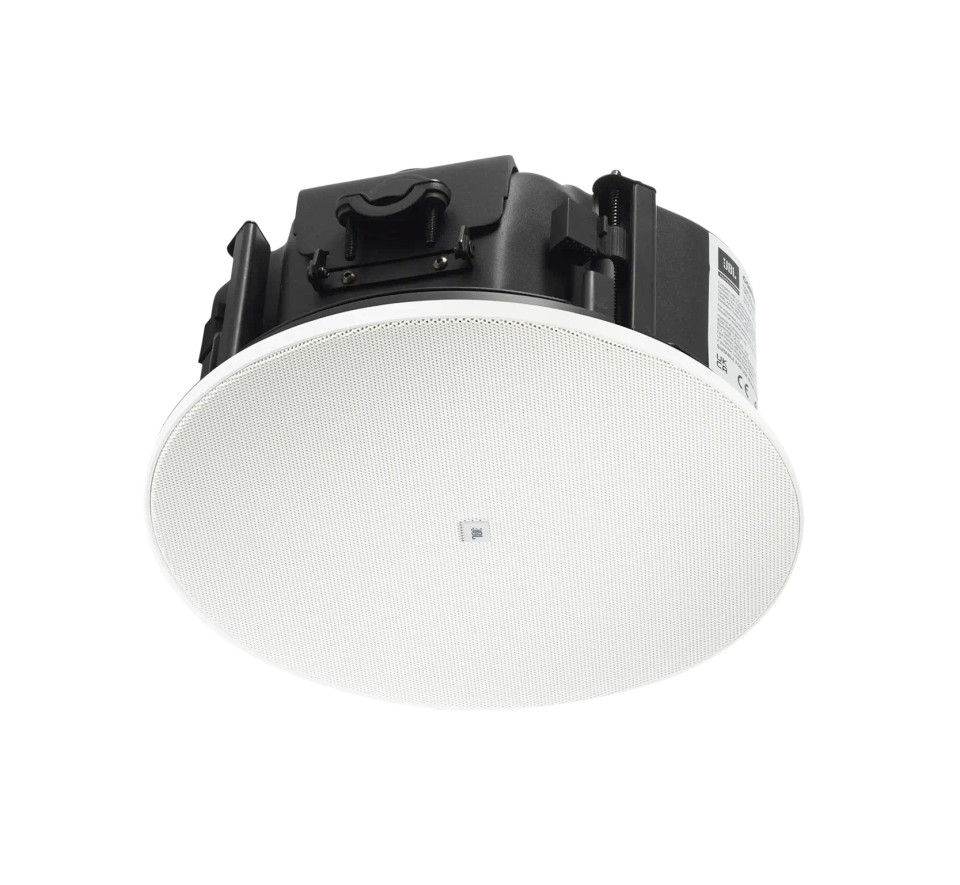

The JBL Control 426LP is a two-way coaxial ceiling loudspeaker, featuring a 6.5” woofer and a low-profile enclosure that is ideal for applications where ceiling plenum space is restricted. Integrated CRBI™ technology provides 110° of consistent, full, rich sound character that closely matches that of the Control 426C/T. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. Like all Control 400 Enhanced Coverage models, the Control 426LP includes a transformer to support both 70V/100V and low impedance applications.
Features:
- Coaxially mounted 165 mm (6.5 in) woofer and 25 mm (1.0 in) soft-dome tweeter
- Low-profile enclosure (<100mm deep) for installing where ceiling plenum space is restricted
- CRBI™ technology for consistent sound coverage
- Built-in 70V/100V multi-tap transformer, plus 12-ohm direct input
- Full-face, easily-paintable magnetic grilles
- Black and square magnetic accessory grilles available
- Top and side exit cable entry options
- Robust and adaptable dogears for wide range of ceiling thicknesses
- IP33 rated
Specs:
Frequency Range (-10 dB) 95 Hz – 19 kHz
Power Capacity 220 W Continuous Program (2 hrs) 110 W (440 W Peak), Continuous Pink Noise (2 hrs) 75 W (300 W Peak) Continuous Pink Noise Power (100 hrs)
Sensitivity 89 dB
Coverage Angle 110° conical
Maximum SPL (1m) 109 dB continuous pink noise (115 dB peak)
Nominal Impedance 12 ohms
Transformer Taps 70 V: 60 W, 30 W, 15 W & 7.5 W 100 V: 60 W, 30 W, 15 W
LF Driver 165 mm (6.5 in)
HF Driver 25 mm (1.0 in)
Dimensions 107 mm (4.2 in) H x 253 mm (9.9 in) dia. 98 mm (3.9 in) from bottom of ceiling tile to top of backcan (with wire exit positioned on side of backcan).
Ceiling Cutout Size 223 mm (8.8 in)
Safety Agency Rating Suitable for use in air handling spaces per UL1480A, UL2043, NFPA90 & NFPA70, S7232/UL Listing, Speakers for Commercial and Professional Use. Listed per CSA C22.2, no. 205 Signal Equipment. In accordance with IEC60849/ EN60849.
Environmental Exceeds Mil Spec 810H for humidity, salt spray, temperature & UV. IP33 rating per EN/IEC 60529 against solid object and water ingress. Compliant with RoHS2 per EN/IEC63000. Operating temperature 0°C to 45°C
Optional Accessories JBL-MTC-426BG black (RAL9004) magnetic round grille with tether JBL-MTC-426SG white (RAL9003) magnetic square grille with tether JBL-MTC-426NC new construction bracket JBL-MTC-426MR mud-ring construction bracket
Color Stock grille is white (RAL9003), paintable.
Net Weight (each) 3.9 kg (8.6 lbs)
Shipping Weight (pair packed in carton) 12.5 kg (27.6 lbs)
