Overview:

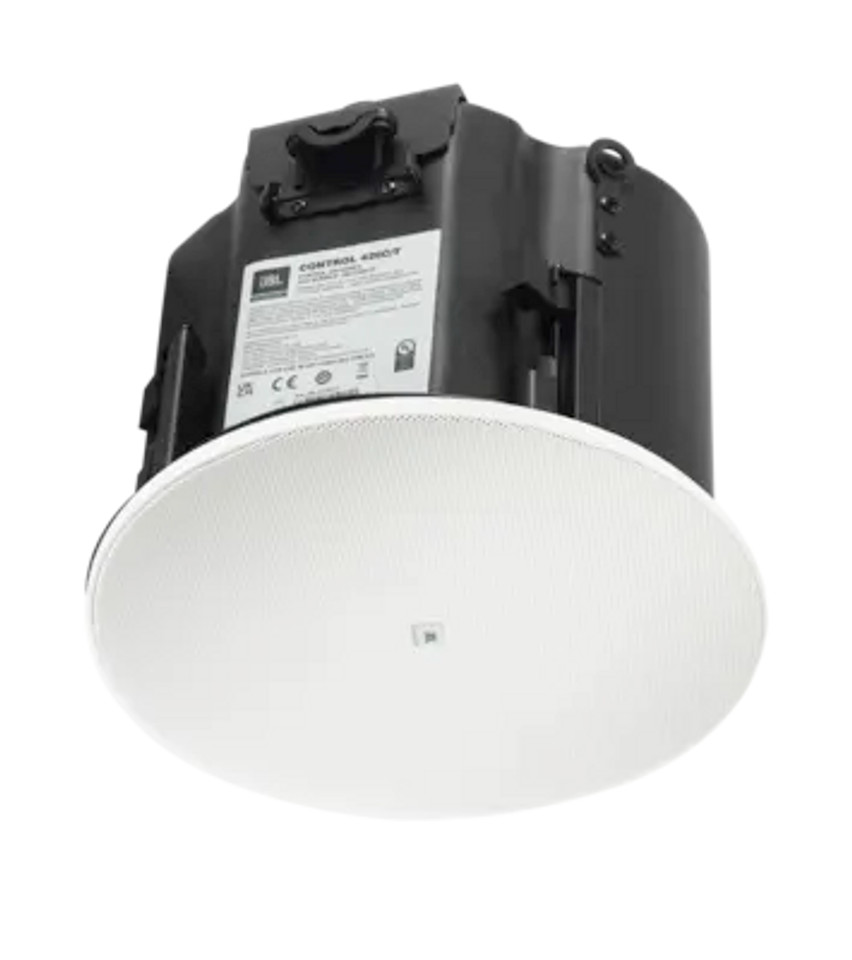

The JBL Control 426C/T is a two-way coaxial ceiling loudspeaker, featuring a 6.5” woofer and integrated enclosure that is ideal for installation in most ceiling plenum spaces. Integrated CRBI™ technology provides 110° of consistent, full, rich sound to the listening area. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. The JBL Control 426C/T includes a transformer to support both 70V/100V and low impedance applications.
Features:
Coaxially mounted 165 mm (6.5 in) woofer and 25 mm (1.0 in) soft-dome tweeter
Integrated enclosure that is ideal for installation in most ceiling plenum spaces
CRBI™ technology for consistent 110° coverage across the listening area
Built-in 70V/100V multi-tap transformer, plus 12-ohm direct input
Full-face, easily paintable magnetic grilles
Top and side exit cable entry options
Robust and adaptable dogears for wide range of ceiling thicknesses
IP33 rated
Specs:
Frequency Range (-10 dB) 72 Hz – 19 kHz
Power Capacity 110 W (440 W Peak), Continuous Pink Noise (2 hrs)
75 W (300 W Peak) Continuous Pink Noise Power (100 hrs)
Sensitivity (1m/1W) 89dB
Coverage Angle 110° conical
Maximum SPL (1m) 109 dB continuous pink noise (115 dB peak)
Nominal Impedance 12Ω
Transformer Taps 70 V: 60 W, 30 W, 15 W & 7.5 W
100 V: 60 W, 30 W, 15 W
Drivers LF: 165 mm (6.5 in) with treated paper cone and high-performance magnet
HF: 25 mm (1.0 in) textile soft-dome with Neodymium magnet assembly
Ceiling Cutout Size 223 mm (8.8 in)
Dimensions 190 mm (7.4 in) H x 253 mm (9.9 in) dia.
181 mm (7.1 in) from bottom of ceiling tile to top of backcan
Safety Agency Rating Suitable for use in air handling spaces per UL2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 and S7232/UL1480A Listed.
Environmental IP33 rating per EN/IEC 60529.
Operating temperature 0°C to 45°C
Optional Accessories JBL-MTC-426BG black (RAL9004) round grille
JBL-MTC-426SG white (RAL9003) square grille
JBL-MTC-426NC new construction bracket
JBL-MTC-426MR mud-ring construction bracket
JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
Color Stock grille is White (RAL9003), paintable
Net Weight (ea) 4.2 kg (9.3 lbs)
Shipping Weight (pair) 13.48 kg (29.73 lbs)
