Overview

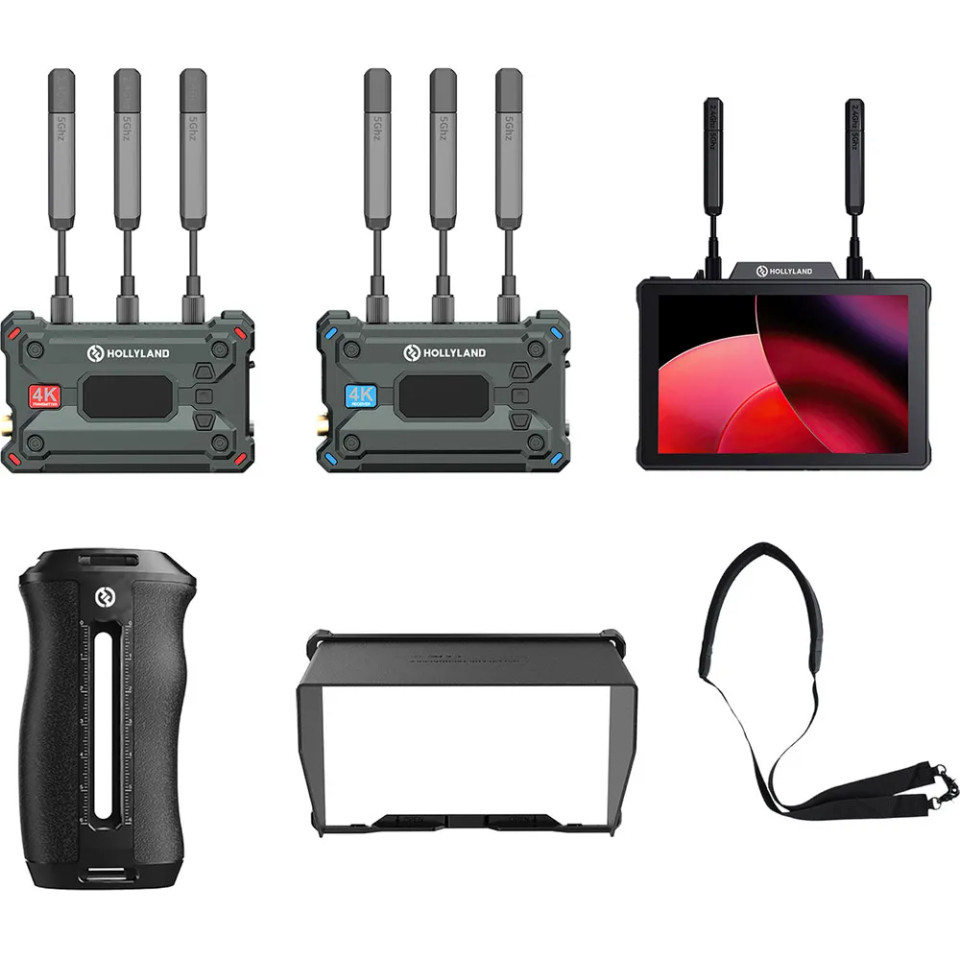

Transmit, receive, and monitor high-quality wireless video transmissions using the versatile Pyro 7 Wireless Transceiver Monitor from Hollyland. The Pyro 7 takes the previous M1 transceiver/monitor and makes everything bigger and better with a bright 7″ touchscreen display, dual L-series battery plate, wireless transmission up to 1300′ away, updated HollyOS imaging tools, SD card video recording, HDMI/SDI input/output, RTSP streaming, one Pyro 7 sends to up to four receivers, as well as auto dual-band 2.4/5 GHz hopping and auto-frequency hopping.
Features
- 1TX & 4RX
- 1300ft (400m) & 0.06s Latency
- 2.4GHz & 5GHz Dual Band
- Auto Frequency Hopping
- TX, RX, and Monitor – All in One
- Dual-View Quick Monitoring Switch
- 7 Inch & 1200 nits
- Precise Image Analysis (icon HollyOS)
- SDI & HDMI Loopout
- RTMP Streaming
Specifications
| Packaging Weight | 2.5 kg |
|---|---|
| Packaging Dimensions | 22.6 × 18.8 × 17.4 cm |
| Display Size |
7.0" / 17.8 cm |
| Native Resolution |
1920 x 1200 |
| Touchscreen |
Yes |
| HDR Support |
No |
| Video I/O |
1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output 1x HDMI 1.4b Input 1x HDMI 1.4b Output |
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC |
| Video Format |
HDMI UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24 1080i: 60/59.94/50 720p: 60/59.94/50SDI 1080p: 60/59.94/30/29.97/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Phantom Power |
No |
| Built-In Battery |
No |
| Battery Type |
2x L-Series (Interchangeable Mount) |
| Power Consumption |
22 W (Maximum) |
| Mounting |
1x 1/4"-20 Female (Left) 1x 1/4"-20 Female (Right) 1x 1/4"-20 Female (Bottom) |
