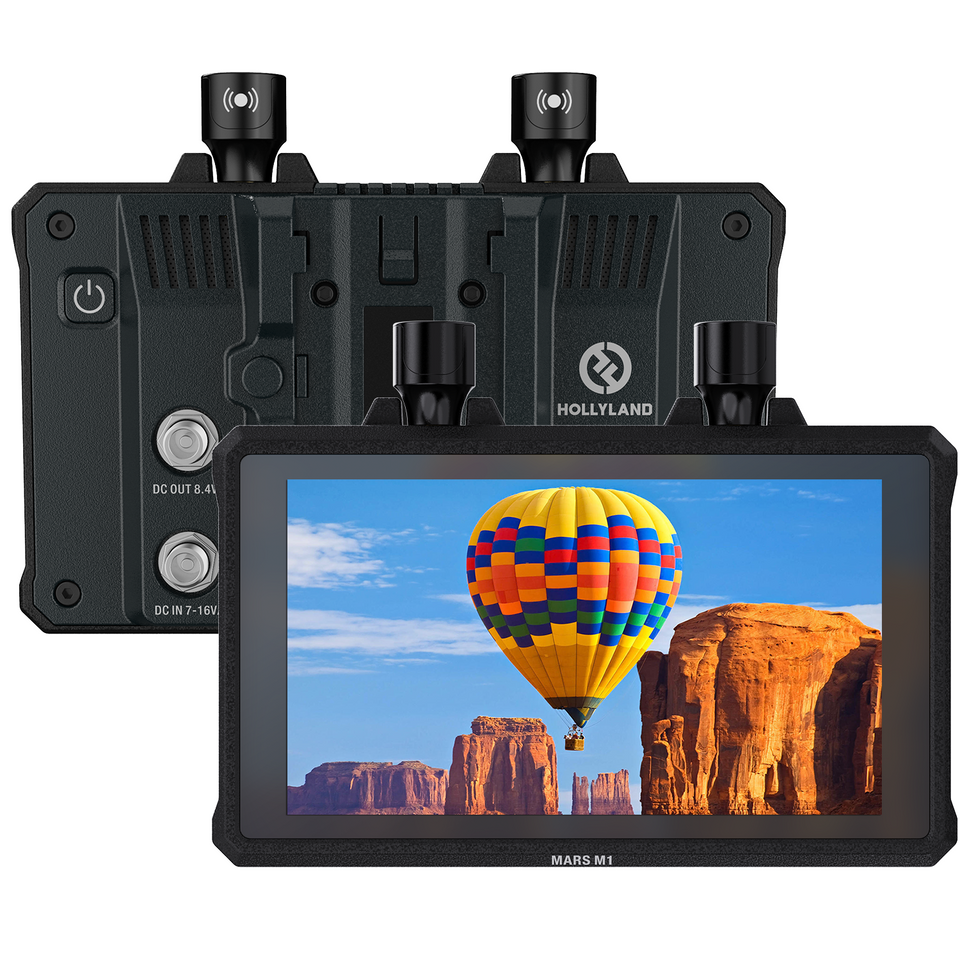

Mars M1 Enhanced Kit Dual 5.5" Wireless Transceiving Monitor

SKU: HL-MARS M1 ENHANCED KIT
MSRP: $849.00
MAP: $849.00

Overview

The Mars M1 Enhanced is a versatile wireless monitor that integrates transmitter, receiver, and monitoring functions into one solution. The 5.5″ touch screen with groundbreaking advantages such as accurate color calibration and Rec.709 color gamut, delivers a pleasant monitoring experience with professional image analysis functions. The device supports an impressive LOS range of up to 450ft (150m) and boasts a low latency of only 0.08 seconds, allowing for more flexibility in device deployment and ensuring seamless monitoring without noticeable lag.

TX, RX, and Monitor All in One

The Mars M1 Enhanced wireless transmission monitor is a powerful and comprehensive solution for all your monitoring needs. Because it is an all-in-one device integrating the functionalities of a transmitter, receiver, and monitor into a single solution, you can effortlessly switch between the transmitter and receiver modes on its settings interface. Furthermore, a single Mars M1 Enhanced transmitter can seamlessly connect with up to two receivers or four mobile device apps.

Universal Compatibility

Our device is designed to easily work with the Mars Pro series and Mars 4K video transmission systems. This compatibility design reduces the need for multiple separate devices, making setup simpler and providing a more streamlined and efficient shooting experience.

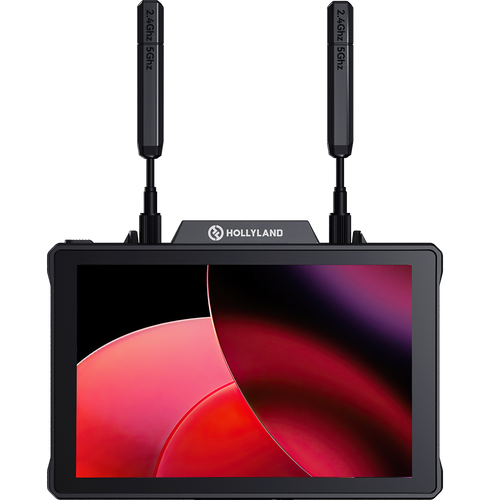

Responsive 5.5″ LCD Touch Screen

The Mars M1 Enhanced is a top-quality monitor with excellent color accuracy. Its highly responsive 5.5″ LCD touch screen and outstanding brightness of up to 1,000 nits make it perfect for outdoor use. The monitor undergoes a color calibration process during manufacturing, ensuring that every image is displayed with stunning resolution, vivid details, and unmatched color accuracy. Additionally, you can fine-tune the RGB gain using a simple reset option to achieve the perfect colors suitable for your needs.

450ft (150m) LOS Range 0.08s Ultra-low Latency

The Mars M1 Enhanced provides an exceptional wireless video transmission range of 450ft (150m). With an ultra-low latency of 80ms, it virtually eliminates lag, guaranteeing stable and reliable wireless signal and delivering high-quality image monitoring overall.

Revolutionary HollyOS

Powered by Hollyland’s groundbreaking operating system – HollyOS, the Mars M1 Enhanced offers a comprehensive suite of advanced monitoring tools. Each of these tools provides you with complete control over your image, offering an opportunity to fine-tune every shot to your specific preferences.

HDMI & SDI Support

Featuring decimal frame rate support, the Mars M1 Enhanced also supports 4K/30fps HDMI input and loopout for expanded connectivity and compatibility. Its SDI input also provides extensive connectivity options to accommodate an ever-widening range of professional video production needs.

Smart Channel Scan and Selection

The Mars M1 Enhanced features smart channel scan that helps determine which channels are occupied and which ones are selectable for ensuring a stable connection upon startup and allowing for interference-free transmission.

Specifications

  • Transmitter
  • Video Input Interface: HDMI 1.4b IN (Type-A female) 3G-SDI IN (BNC female)
  • Video Output Interface: HDMI 1.4b LOOPOUT (Type-A female)
  • Antenna Interface: Two RP-SMA male interfaces
  • Power Input Interface: DC IN (2.0mm core socket)
  • Power Output Interface: DC OUT (2.0mm core socket)
  • Headphone Jack: 3.5mm
  • Upgrade Interface: USB-C (USB-2.0 OTG)
  • Screen Size: 5.5" touchscreen
  • Screen Resolution: 1920×1080 pixels
  • Pixel Density: 403 PPI
  • Aspect Ratio: 16:9
  • Screen Brightness: 1,000 nits
  • Contrast Ratio: 1000:1
  • Power Input Voltage: DC IN: 7–16V 2.5A (nominal 12V), NP-F battery: 6.8V–8.4V
  • DC Output Voltage: 8.4V±5%
  • Power Consumption: <16W
  • Net Weight: Approx. 400g (14.1oz) with external antennas excluded
  • Dimensions: (L x W x H): 152mm x 96mm x 40mm (5.98" x 3.78" x 1.57") with external antennas excluded
  • Input Video Resolution
  • HDMI IN:
    • 720p50/59.94/60 Hz
    • 1080i50/59.94/60 Hz
    • 1080p23.98/24/25/29.97/30/50/59.94/60 Hz
    • 3840x2160p23.98/24/25/29.97/30 Hz
    • 4096x2160p23.98/24/25/29.97/30 Hz
  • SDI IN:
    • 720p50/59.94/60 Hz
    • 1080i50/59.94/60 Hz
    • 1080p23.98/24/25/29.97/30
    • 1080p50/59.94/60 Hz (3G-SDI level A)
    • 1080p50/59.94/60 Hz (3G-SDI level B)
  • Output Video Resolution
    • HDMI LOOPOUT (HDMI IN):
    • 720p50/59.94/60 Hz
    • 1080i50/59.94/60 Hz
    • 1080p23.98/24/25/29.97/30/50/59.94/60 Hz
    • 3840x2160p23.98/24/25/29.97/30 Hz
    • 4096x2160p23.98/24/25/29.97/30 Hz
  • HDMI LOOPOUT (SDI IN):
    • 720p50/59.94/60 Hz
    • 1080i50/59.94/60 Hz
    • 1080p23.98/24/25/29.97/30/50/59.94/60 Hz
  • Note: When the device (in receiver mode) is connected to the Mars 4K transmitter, if the HDMI input video resolution of the Mars 4K transmitter is 3840x2160p24/25/30 Hz, the HDMI output video resolution of the device is 1920x1080p24/25/30 Hz.
  • Display Latency: <0.05s (test data when 1080p60 signals are transmitted in a laboratory environment. The display latency varies by video resolution.)
  • Operating Frequency
    • 5.150–5.250GHz
    • 5.250–5.350GHz
    • 5.470–5.725GHz
    • 5.725–5.850GHz
  • Codec Technology: H.264
  • Bit Rate: 12Mbps
  • TX Power: = 21+/-1.5dBm
  • Transmission Latency: Approx. 0.08s (test data when 1080p60 signals are transmitted in a laboratory environment)
  • LOS Range: Up to 450ft (150m) (test data in an unobstructed outdoor environment free of interference)
  • Bandwidth: 20MHz
  • Audio Format: Eight audio channels for the HDMI 1.4b
  • Operating Temperature: –10? to 60? (14° F to 140° F)
  • Storage Temperature: –40? to 60? (–40° F to 140° F)
  • Receiver
  • Video Output Interface: HDMI 1.4b OUT (Type-A female)
  • Antenna Interface: Two RP-SMA male interfaces
  • Power Input Interface: DC IN (2.0mm core socket)
  • Power Output Interface: DC OUT (2.0mm core socket)
  • Headphone Jack: 3.5mm
  • Upgrade Interface: USB-C (USB-2.0 OTG)
  • Screen Size: 5.5" touchscreen
  • Screen Resolution: 1920×1080 pixels
  • Pixel Density: 403 PPI
  • Aspect Ratio: 16:9
  • Screen Brightness: 1,000 nits
  • Contrast Ratio: 1000:1
  • Power Input Voltage: DC IN: 7–16V 2.5A (nominal 12V), NP-F battery: 6.8V–8.4V
  • DC Output Voltage: 8.4V±5%
  • Power Consumption: <13.6W
  • Net Weight: Approx. 400g (14.1oz) with external antennas excluded
  • Dimensions: (L x W x H): 152mm x 96mm x 40mm (5.98" x 3.78" x 1.57") with external antennas excluded
  • Output Video Resolution
  • HDMI OUT:
    • 720p50/59.94/60 Hz
    • 1080i50/59.94/60 Hz
    • 1080p23.98/24/25/29.97/30/50/59.94/60 Hz
    • 1080p50/59.94/60 Hz
  • HDMI OUT:
    • 720p50/59.94/60 Hz
    • 1080i50/59.94/60 Hz
    • 1080p23.98/24/25/29.97/30/50/59.94/60 Hz
  • Note: When the device (in receiver mode) is connected to the Mars 4K transmitter, if the HDMI input video resolution of the Mars 4K transmitter is 3840x2160p24/25/30 Hz, the HDMI output video resolution of the device is 1920x1080p24/25/30 Hz.
  • Operating Frequency
    • 5.150–5.250GHz
    • 5.250–5.350GHz
    • 5.470–5.725GHz
    • 5.725–5.850GHz
  • Codec Technology: H.264
  • Bit Rate: 12Mbps
  • TX Power: = 21+/-1.5dBm
  • Transmission Latency: Approx. 0.08s (test data when 1080p60 signals are transmitted in a laboratory environment)
  • LOS Range: Up to 450ft (150m) (test data in an unobstructed outdoor environment free of interference)
  • Bandwidth: 20MHz
  • Audio Format: Eight audio channels for the HDMI 1.4b
  • Operating Temperature: –10? to 60? (14° F to 140° F)
  • Storage Temperature: –40? to 60? (–40° F to 140° F)
