Overview

Deeper, louder, stronger. With its two 18″ woofers with 3″ voice coils, the FO S218 is the most powerful subwoofer in the series and offers the deepest frequency response. The ideal complement for the FO 12 and FO 15 in stereo, 2.1 or surround systems. The subwoofer can be placed upright or on its side and offers a milled cable duct to the bottom, left and right for cable routing close to the wall. The front is protected by a full-surface grille, which is supported by solid reinforcements on the inside. This makes the FO S218 suitable not only for use in sports venues (for which a ball-impact resistance certificate in line with DIN 18032-3 is provided), but also for “wild” club and concert environments.

Specifications

Characteristics

• Concept: Passive subwoofer
• Cabinet principle: Bass reflex
• Power handling RMS: 2000 W
• Power handling program: 4000 W
• Power handling peak: 8000 W
• Nominal impedance (According to EN 60268-5 (minimum value not less than 80% of nominal value)): 4 ohms
• Max. SPL average (1 m, 10 % THD @ 33 Hz - 100 Hz, (EN 60268-21), full space): 129 dB
• Max. SPL peak (1 m, 10 % THD @ 70 Hz, full space): 133 dB
• Sensitivity 1 W/1 m (33 Hz - 100 Hz, full space): 98 dB
• Frequency range -6 dB: 37 Hz - crossover frequency
• Frequency range -10 dB: 33 Hz - crossover frequency
• Dispersion angle -6 dB: omnidirectional

Certifications

• Ball impact resistance (DIN 18032-3): certified (MPA University Stuttgart)
• IP protection class (EN 60529): not specified

Components

• Low frequency: 2x 18" Beyma cone speaker with ferrite magnet and 3" voice coil
• Crossover: no internal crossover

Connections

• Input: 1 x NL4 Speakon
• Output/parallel output: 1 x NL4 Speakon
• Pin assignment: 2+/- (input/parallel output), 1+/- (wired through)

Amping/DSP Presets

• Lab.Gruppen: IPX
• LEA Professional: Sharkware

Amping/Filter Sheets

• Filter specifications in tabular form for frequency response equalization Without limiter specifications: Biamp Tesira BSS Lab.gruppen Lake Linea Research Marani Powersoft QSC Q-SYS Symetrix

Mechanical data

• Cabinet material: MDF
• Cabinet surface: 1-component acrylic enamel
• Color: Jet black (RAL 9005), signal white (RAL 9003) or special color according to catalog

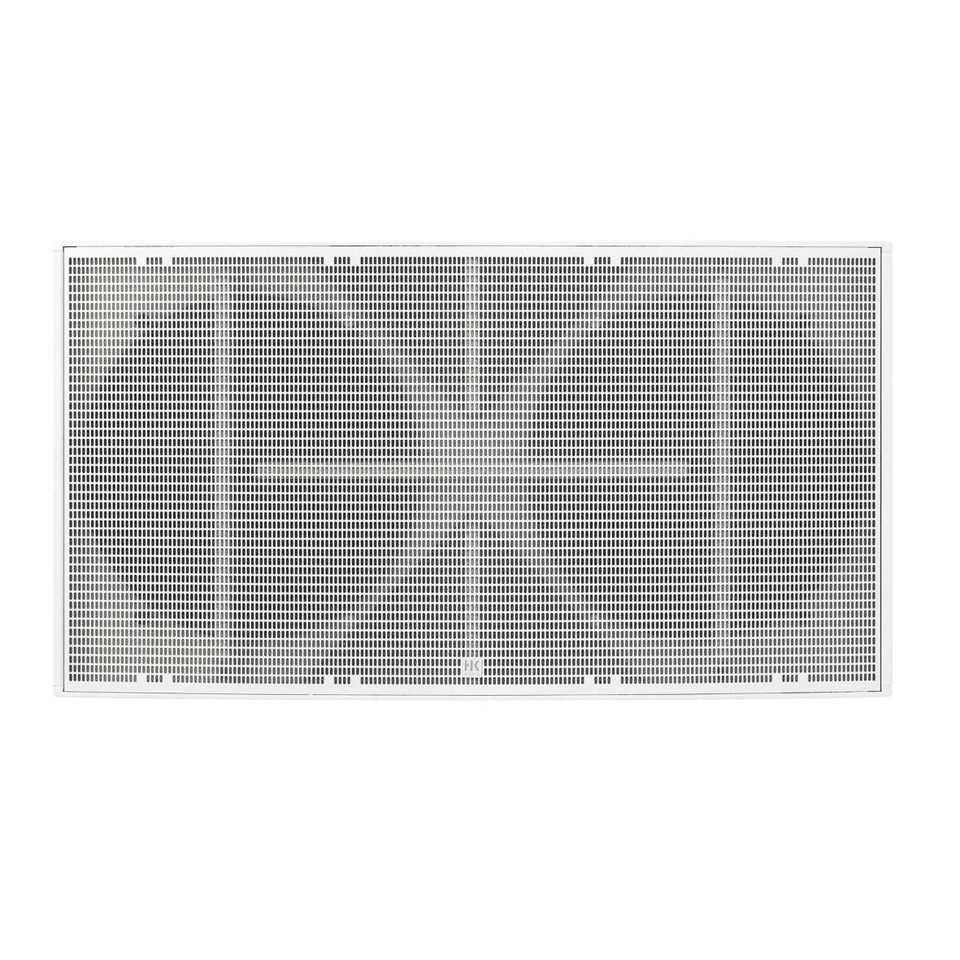

• Front grille: Steel front grille with anticorrosive coating, backed acoustic foam and additional plywood and steel reinforcements
• Cable routing: Cutouts on the back for cable routing close to a wall to the left, right or below
• Feet: 4 x rubber foot on bottom, 4 x rubber foot lateral
• Dimensions (WxHxD): 1128 x 608 x 721 mm 44.41 x 23.94 x 28.39 inch
• Weight: 73.9 kg 162.92 Ibs
