Overview

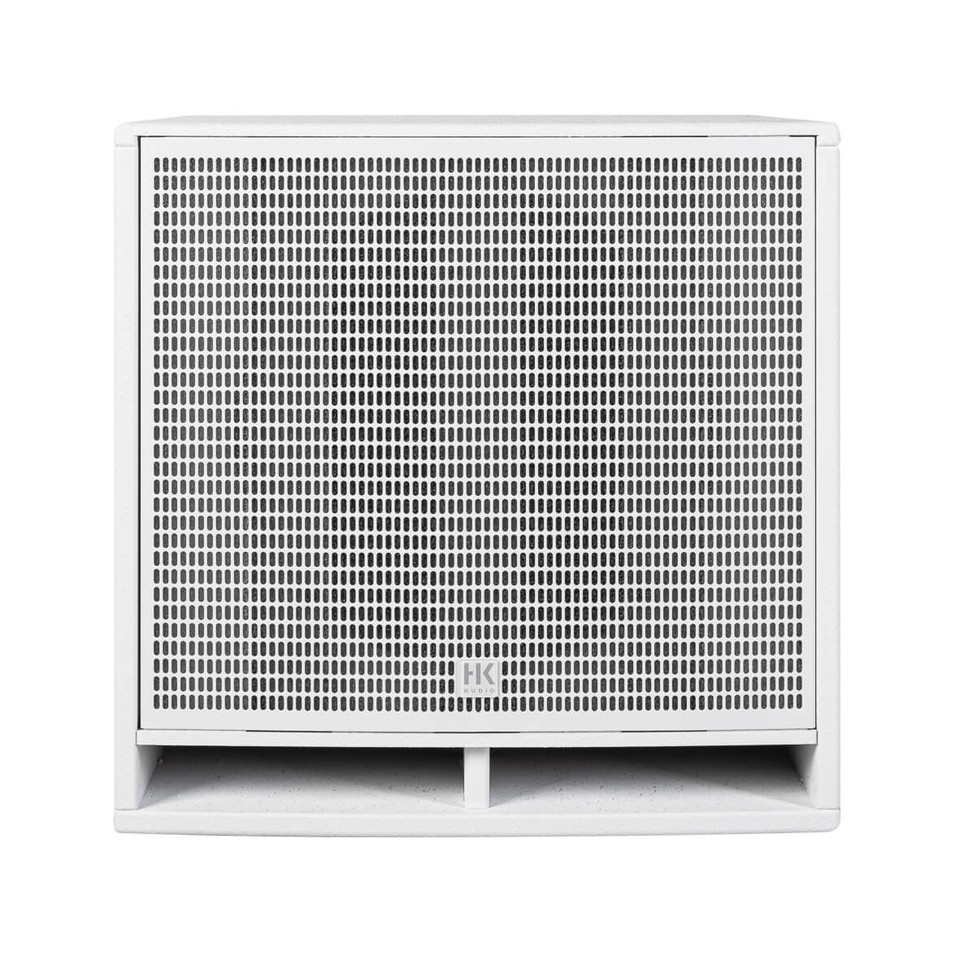

The FO S112 F is the flyable version of the extremely compact FO S112 subwoofer. With its 12″ woofer with 2.5″ voice coil and 50 Hz tuning frequency, it makes the ideal low-end support with powerful bass and high sound pressure as a system subwoofer or surround LFE for installations with compact speakers like the FO 5. Installation is simple and secure with the optionally available U-bracket or AP-8 attachment points. Four M8 threads on the side and four M8 threads on the top are available for mounting. For aesthetic reasons, the FO S112 F does not have the cut-outs for cable routing or rubber feet. A secondary grille protects the bass reflex port from accidental or deliberate insertion of foreign objects. A ball-impact resistance certificate in line with DIN 18032-3 is provided for installations in sports facilities.
Specifications
Characteristic
- Concept: Flyable passive subwoofer
- Cabinet principle Bass reflex
- Power handling RMS 600 W
- Power handling program 1200 W
- Power handling peak 2400 W
- Nominal impedance (According to EN 60268-5 (minimum value not less than 80% of nominal value)): 8 ohms
- Max. SPL average (1 m, 10 % THD @ 40 Hz - 100 Hz, (EN 60268-21), full space): 116 dB
- Max. SPL peak (1 m, 10 % THD @ 65 Hz, full space): 120 dB
- Sensitivity 1 W/1 m (40 Hz - 100 Hz, full space) 91 dB
- Frequency range -6 dB: 61 Hz - crossover frequency
- Frequency range -10 dB: 42 Hz - crossover frequency
- Dispersion angle -6 dB: omnidirectional
Certifications
- Ball impact resistance (DIN 18032-3) certified (MPA University Stuttgart)
- IP protection class (EN 60529) : not specified
Components
- Low frequency: 1x 12" Sica cone speaker with ferrite magnet and 2.5" voice coil
- Crossover: no internal crossover
Connections
- Input 1 x NL4 Speakon
- Output/parallel output: 1 x NL4 Speakon
- Pin assignment: 2 +/- (input/parallel output), 1+/- (wired through)
Amping/DSP Presets
- Lab.Gruppen: IPX
- LEA Professional: Sharkware
Amping/Filter Sheets
- Filter specifications in tabular form for frequency response equalization Without limiter specifications Biamp Tesira BSS Lab.gruppen Lake Linea Research Marani Powersoft QSC Q-SYS Symetrix
Mechanical data
- Cabinet material: MDF
- Cabinet surface: 1-component acrylic enamel
- Mounting points: 4 x M8 lateral, 4 x M8 lid
- Color: Jet black (RAL 9005), signal white (RAL 9003) or special color according to catalog
- Front grille: Steel front grille with anticorrosive coating, backed acoustic foam and additional steel reinforcements
- Secondary grille: Insertion protection of the bass reflex port made of coated expanded metal
- Accessories U-bracket, AP-8
- Dimensions (WxHxD): 474 x 478 x 506 mm 18.66 x 18.82 x 19.92 inch
- Weight: 25.2 kg 55.56 Ibs
