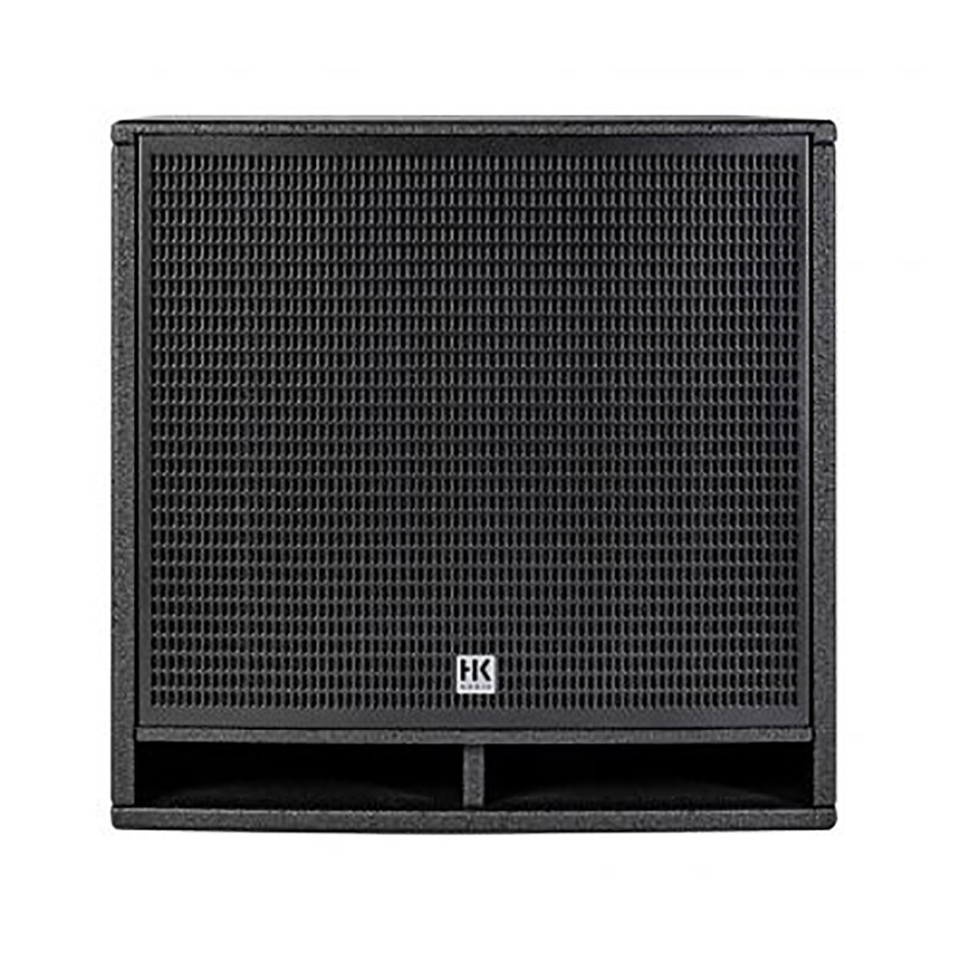

HK AUDIO FOS112F/BLK

HK AUDIO FOS112F/BLK

HK AUDIO FOS112F/BLK

HK AUDIO FOS112F/BLK

12" SUB BLACK FLYABLE

SKU: HKA-FOS112F/BLK
MSRP: $1,429.00
MAP: $1,129.00

Overview

The FO S112 F is the flyable version of the extremely compact FO S112 subwoofer. With its 12″ woofer with 2.5″ voice coil and 50 Hz tuning frequency, it makes the ideal low-end support with powerful bass and high sound pressure as a system subwoofer or surround LFE for installations with compact speakers like the FO 5. Installation is simple and secure with the optionally available U-bracket or AP-8 attachment points. Four M8 threads on the side and four M8 threads on the top are available for mounting. For aesthetic reasons, the FO S112 F does not have the cut-outs for cable routing or rubber feet. A secondary grille protects the bass reflex port from accidental or deliberate insertion of foreign objects. A ball-impact resistance certificate in line with DIN 18032-3 is provided for installations in sports facilities.

Specifications

Characteristic

  • Concept: Flyable passive subwoofer
  • Cabinet principle    Bass reflex
  • Power handling RMS    600 W
  • Power handling program    1200 W
  • Power handling peak    2400 W
  • Nominal impedance (According to EN 60268-5 (minimum value not less than 80% of nominal value)): 8 ohms
  • Max. SPL average (1 m, 10 % THD @ 40 Hz - 100 Hz, (EN 60268-21), full space): 116 dB
  • Max. SPL peak (1 m, 10 % THD @ 65 Hz, full space): 120 dB
  • Sensitivity 1 W/1 m (40 Hz - 100 Hz, full space)    91 dB
  • Frequency range -6 dB: 61 Hz - crossover frequency
  • Frequency range -10 dB: 42 Hz - crossover frequency
  • Dispersion angle -6 dB: omnidirectional

Certifications

  • Ball impact resistance (DIN 18032-3)    certified (MPA University Stuttgart)
  • IP protection class (EN 60529) : not specified

Components

  • Low frequency: 1x 12" Sica cone speaker with ferrite magnet and 2.5" voice coil
  • Crossover: no internal crossover

Connections

  • Input    1 x NL4 Speakon
  • Output/parallel output: 1 x NL4 Speakon
  • Pin assignment: 2 +/- (input/parallel output), 1+/- (wired through)

Amping/DSP Presets

  • Lab.Gruppen: IPX
  • LEA Professional: Sharkware

Amping/Filter Sheets

  • Filter specifications in tabular form for frequency response equalization Without limiter specifications    Biamp Tesira BSS Lab.gruppen Lake Linea Research Marani Powersoft QSC Q-SYS Symetrix

Mechanical data

  • Cabinet material: MDF
  • Cabinet surface: 1-component acrylic enamel
  • Mounting points: 4 x M8 lateral, 4 x M8 lid
  • Color: Jet black (RAL 9005), signal white (RAL 9003) or special color according to catalog
  • Front grille: Steel front grille with anticorrosive coating, backed acoustic foam and additional steel reinforcements
  • Secondary grille: Insertion protection of the bass reflex port made of coated expanded metal
  • Accessories    U-bracket, AP-8
  • Dimensions (WxHxD): 474 x 478 x 506 mm 18.66 x 18.82 x 19.92 inch
  • Weight: 25.2 kg 55.56 Ibs
