Overview

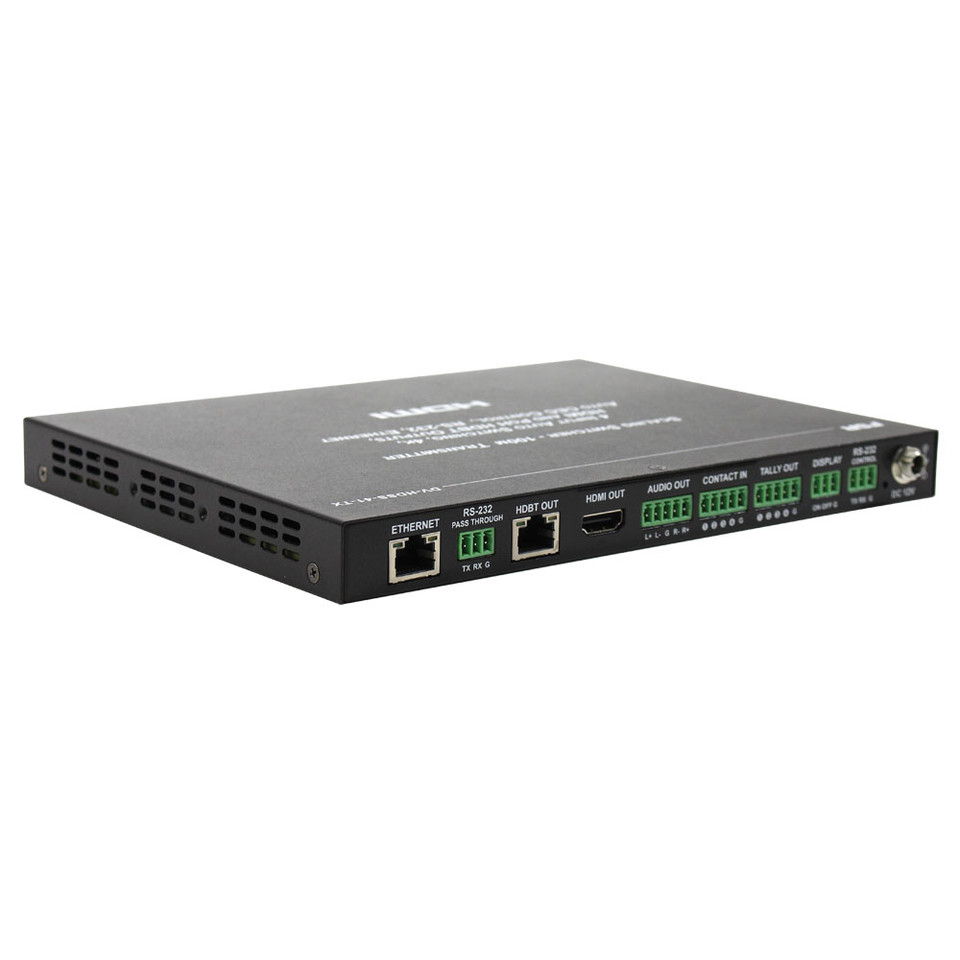

The DV-HDSS-41-Tx unit contains:

• 4 Inputs
• 2 HDMI
• 1 DisplayPort
• 1 VGA (HD-15) with stereo audio (1/8")
• 1 HDMI Out and a mirrored HDBaseT Output

The HDBaseT Output is a true HDBaseT 5-Play output that transmits HD Video (up to 4K @60hz), Audio, Bi-Directional RS-232 Control, Ethernet, and Power via 1 CAT-6A shielded cable out to 100 meters. Due to the scaling engine the DV-HDSS-41-Tx does need to be powered locally, but it can remotely power any of our other 100 meter HDBaseT receivers or non-scaling receivers via the CAT-6A shielded cable.

It can be controlled via front panel push-buttons, contact closure, RS-232, or Auto-switching to the latest input, when detecting any input connected or disconnected. It also provides LED Feedback for contact closures and will work with FSR's HuddleVU Collabotation System. The DV-HDSS-41-Tx Digital Video 4x1 Scaling Switcher can be packaged with FSR's HuddleVU HV-T6-BLK table box, 2 HDMI Retractors, 1 DisplayPort Retractor, 1 VGA retractor, and a MINI-VU Table providing a full collaboration system.
