Overview
the Unison Heritage Contact Interface provides a convenient interface and integration to external devices via contact closures. the Contact Interface provides 8 connections that can be used as inputs or outputs, as well as 8 relay outputs.
APPLICATIONS
- Building automation Systems
- Building security
- fire alarm
- motion detectors
- Projection screens / lifts
- moving partitions
- Blinds
- Photo cell
- Show Controllers
FEATURES
- Designed for use with Unison Paradigm Control Systems
- linkConnect – using echelon ® lontalk® protocol with linkPower, the two wire topology-free system gives you the freedom to put the Contact Interface where you need it.
- Assign any button function to the input or output closures
- Terminals provided for all wire connections
- External lamp driver
- Custom configurations available
Specifications
GENERAL
- Ul and cUl lISteD
- Ce marked
FUNCTIONAL
- Operate standard system functions for “buttons” from other devices
- Functions include: preset selection, record mode activation, station lockout, raise, lower, macro activation, zone on/off control, timed event override and wall open/close or toggle
- Custom functionality programmable via lightDesigner configuration software
MECHANICAL

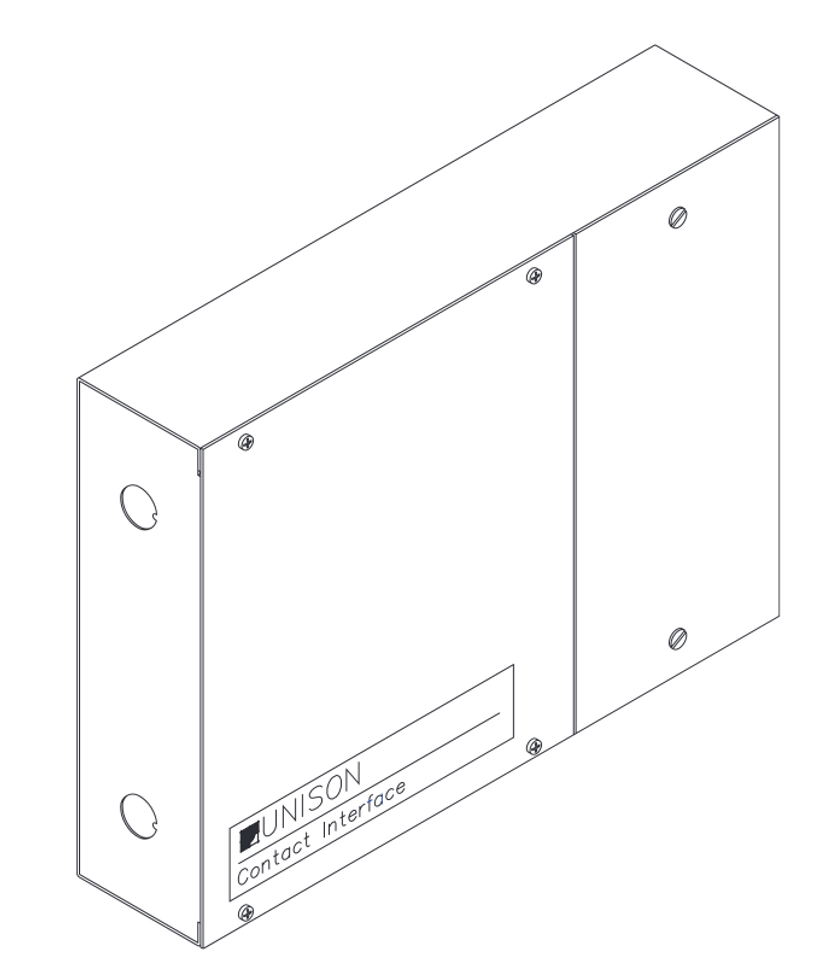

- Enclosure and cover are constructed of 16 gauge (.08) steel and are finished in black fine texture powder coat paint
- Two piece removable cover allows independent access to High-Voltage and Low- Voltage wiring compartments
- Also available in 19” rack-mount configuration
ELECTRICAL
- Connect via echelon ® LinkPower control network utilizing low voltage Class II wiring
- Topology free and polarity independent wiring over Belden 8471 or equivalent, and (1) #14 ESD drain wiring
- Wiring may be bus, loop, home-run or any combination of these
- Link Power network wiring may not exceed 1640’ (500m) without the use of a repeater module (P-REP or P-DREP)
- Two #16 AWG wires for 24 vDC auxiliary power terminals provided for all wiring connections ratings
- Up to 8 Contact inputs or outputs supported-
- Dry contact inputs; no voltage applied-
- Lamp Driver Outputs support up to 100mA @ 24v DC and- are functionally coupled to the input
- Relay Outputs; Normally-open 2-pole contact outputs- support up to 1A@28 VDC or 0.5A@120 VAC
- Supports up to 1000 feet of 16 AWG wiring between lamp- supply and return
- Ul and cUl lISteD, Ce marked
THERMAL
- Ambient room temperature: 0-40°C / 32-104°F
- Ambient humidity: 30-90% non-condensing
