Overview

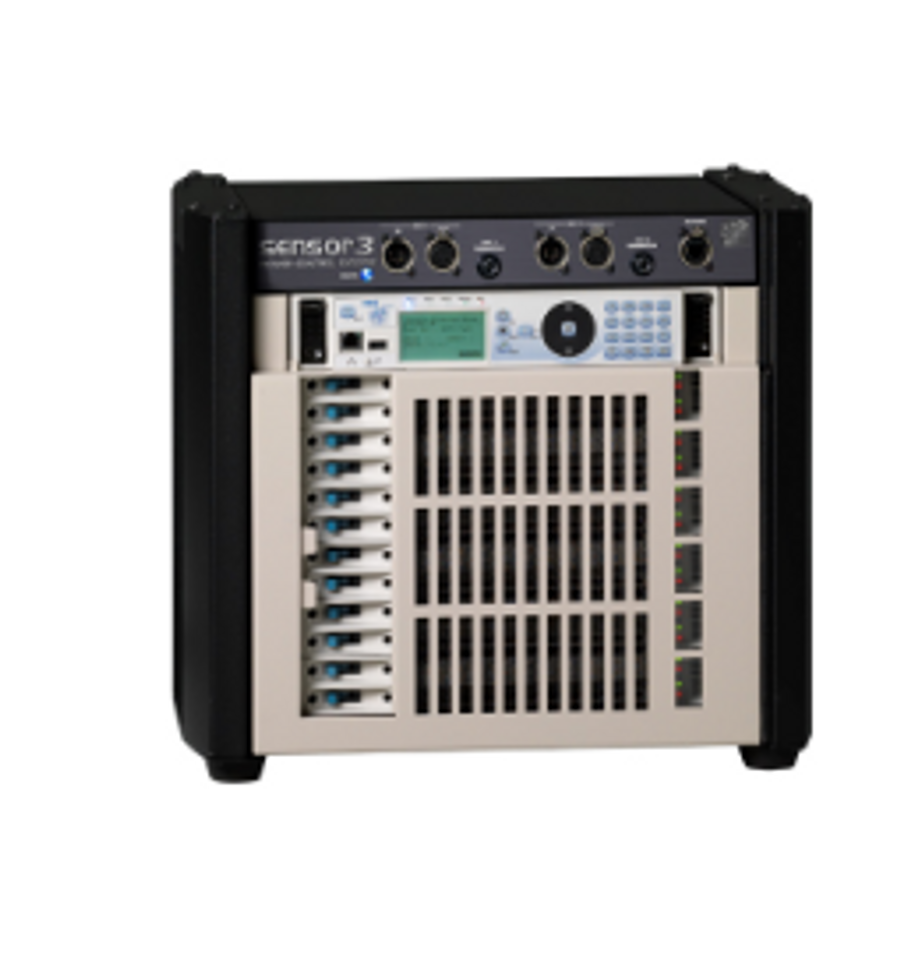

Sensor3 Portable Packs provide powerful digital dimming for small-scale portable applications setup for basic applications out ofthe box.
APPLICATIONS
- Digital dimming for traveling companies
- Professional black-box or seasonal theater
- Solo and ensemble music tours
- Dance and performance art tours
- Television studio and film productions
- Convention and conference centers
FEATURES
- 6 and 12 module packs available
- Rugged industrial construction
- Three-phase or single phase switchable
- Cam-Lok® power input connectors
- Flexible load connection options- Twist-Lock® (GTL)- Stage Pin- Multi-pin- Edison
- CEM3 Control Electronics Module standard- Basic menu structure for simple DMX operation- Advanced configuration editing built into pack- Direct Ethernet control signal input (Net3, sACN) as well as(two) DMX512-A inputs- Standard reporting and configuration networking- Optional Advanced Features (AF) reporting- Support ETC Dimmer Doubling
- All packs UL and cUL Listed
OPTIONS
- Cam-Lok Pass Thru
- Castered Cart
Specifications
GENERAL
- Two sizes of pack available:
- Small - 6 modules, 12 dimmers maximum
- Large - 12 modules, 24 dimmers maximum
- Underwriters Laboratories cUL Marked, tested and Listed tothe following standards:
- UL508 (File: E152039)
- Complies with ESTA DMX512-A Standard
- Ambient temperature: 0° to 40° C (32° to 104 °F)• Relative humidity: 10–90% non-condensingMECHANICAL
- Rugged aluminum construction
- Fine-textured, scratch-resistant, gray and black epoxy paint
- No tools required for module removal or installation
- Keyed module slots prevent insertion of inappropriatemodule types
THERMAL
- High efficiency cooling system with airflow sensor
- Easily cleaned electrostatic air filter
- Low-noise fan for quiet operation
- Ambient temperature: 0° to 40° C (32° to 104 °F)
ELECTRICAL
- Easily switches from single–phase 120/240 VAC to three-phase 120/208 VAC operation
- Cam-Lok power input connectors
- Cam-Lok pass thru connectors available
- Max pass thru bus rating for:- SP3-6: 100 A- SP3-12: 200 A
- Line feed voltage range is 91–139 VAC
- Power frequencies from 47–53; 57–63 Hz
- Choice of Stage pin, Edison or Twist-Lock or 19-pin Multi-pinoutput connectors
ELECTRONICS
- CEM3 Power Control
- Full number pad for fast access to dimmer override and setup
- Graphical backlit display
- Standard diagnostic reportingOPTIONS
- Advanced Features (AF) dimmer-specific output reporting -requires Advanced Features (AF) dimmer modules
- Custom output panels (call ETC for details)
- Cam-Lok Pass Thru Panel
- Castered Cart
