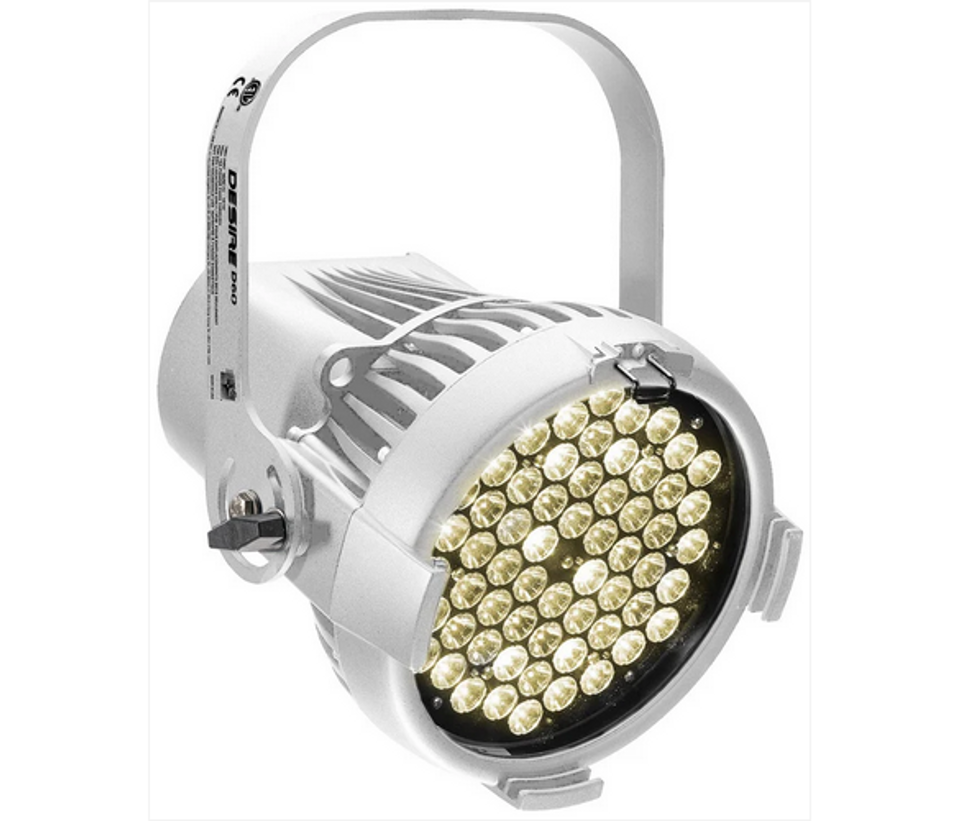

D60 Studio HD, White

SKU: ETC-7410A1602-1
MSRP: $2,990.00

Overview

The Selador Desire D60 Studio lighting fixture uses the newest technology in high-output white-light LEDs to create an ideal luminaire for video, film and other ‘white-light-only’ applications. Three different LED options give the user a choice for just the right white-light output for the job. The D60 Studio offers a rugged die-cast enclosure; quiet, fan-cooled operation; multiple lens options; and an advanced user interface. The user interface enables easy configuration and specific features for video and film applications. The fixture can be configured to operate under console control for studio systems or in stand-alone ‘no console required’ settings for location lighting.

D60 Studio LED options

The D60 Studio fixture is available with any one of the following arrays based on specific white-light functions to best suit the intended application (not interchangable).

  • D60 Studio HD – combines warm-white and cool-white LEDs for variable-color-temperature mixing. Added to this are five carefully chosen LED colors from the x7 Color System to fill in the white LED spectral gaps. D60 Studio HD provides the richest variable-white light possible in an LED fixture.
  • D60 Studio Daylight – contains 60 5600 K LEDs for high-intensity, non-variable cool-white output
  • D60 Studio Tungsten – contains 60 3000 K LEDs for high-intensity, non-variable warm-white output

Specifications

Source

  • LED details: 60 Lumileds LUXEON® Rebel 2.5 W LED
  • Max lumens
    • Studio HD: 4,532
    • Studio Daylight: 8,216
    • Studio Tungsten: 6,482
  • Lumens per watt
    • Studio HD: 30.9
    • Studio Daylight: 57.0
    • Studio Tungsten: 44.8
  • L70 Rating Hours to 70% output: 50,000 hours

Color

  • Colors used
    • Studio HD: Red, Amber, Green/Cyan,
    • Blue, Warm White, Cool White
    • Studio Daylight: White
  • Studio Tungsten: White
    • Color temperature range Studio HD: 2700–5600 K
    • Studio Daylight: 5600 K
    • Studio Tungsten: 3200 K
  • Calibrated array
    • Studio HD: Yes
    • Studio Daylight: No
    • Studio Tungsten: No
  • Red shift: Yes (Studio HD)

Optical

  • Beam angle range: 8°–71°
  • Gate size: N/A
  • Aperture size: 9 in
  • Pattern projection: No
  • Pattern size: N/A
  • Camera flicker control/Hz range: Yes: 900–25,000 Hz
  • Notes: Secondary lenses available for multiple beam-spread options

Control

  • Input method: DMX512 via 5-pin XLR
  • Protocols: DMX512/RDM
  • RDM configuration: Yes
  • UI type: LCD
  • Local control: Yes
  • Onboard presets:Yes
  • Onboard sequences: Yes
  • Onboard effects: No
  • Fixture-to-fixture control: Yes
  • Notes: 15-bit virtual dimming engine

Electrical

  • Voltage range: 100–240 VAC 50/60 Hz
  • Input method: Neutrik powerCON ® in and thru Requires power from non-dimmable source
  • Inrush
    • 15 A at 120 V (First half-cycle)
    • 40 A at 240 V (First half-cycle)
  • Fixtures per circuit*: 9 (15 A via power thru connector)
  • Wattage typical: 161 W
  • Current draw
    • 43 A/120 V
    • 58 A/240 V

Thermal

  • Ambient operating temp: -20°C to 40°C (4°F to 104°F)
  • Fan (controllable): Yes (yes)
  • Droop compensation: Yes
  • dB range: 25 dBa average at 1 m (more details on page 8)
  • BTUs/hour: 549

Physical

  • Materials: Die-cast, all metal housing
  • Color options: Black, white, silver, or custom color
  • Mounting options: Yoke
  • IP rating: IP20
  • Weight: 8.7 kg (19.1 lb)
  • Included accessories: Very Narrow Round diffuser, power cable (see page 7), optional yoke/floor stand
