D40XTI Vivid, Black

SKU: ETC-7410A1101
MSRP: $2,365.00

Overview

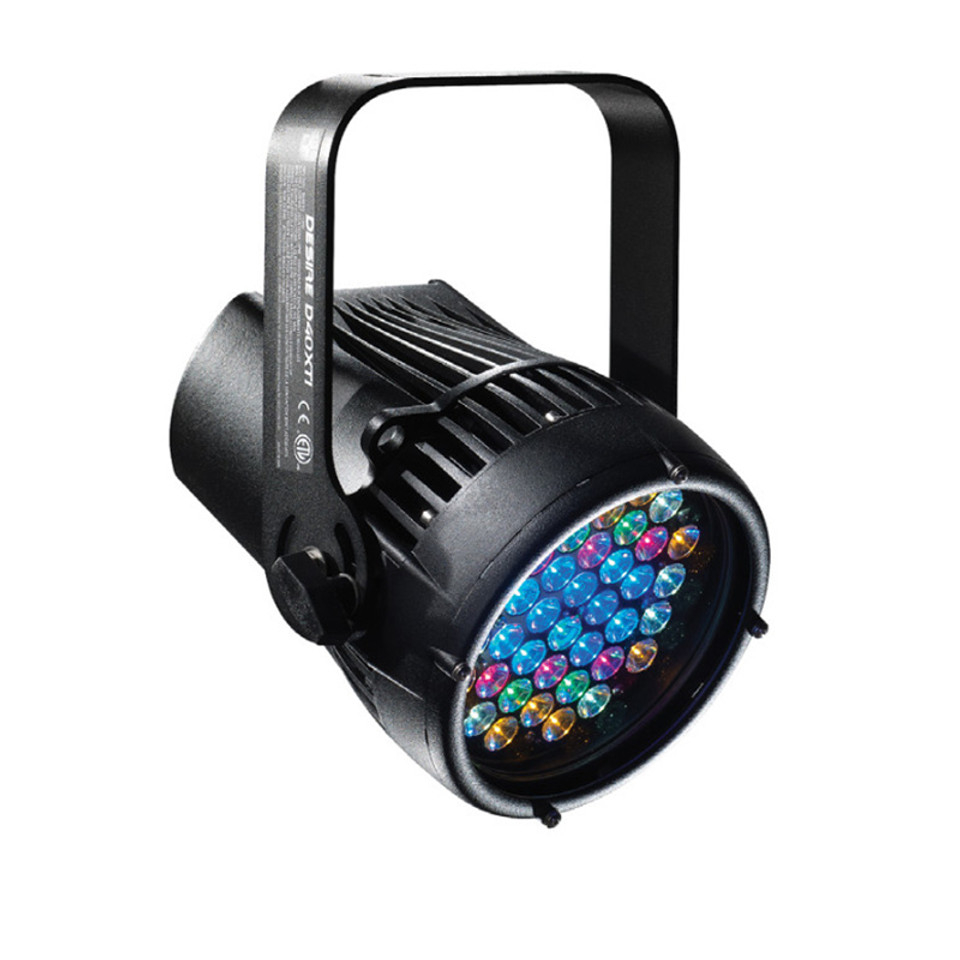

The Selador Desire D40XTI brings the amazing control of the seven-color x7 Color System to your permanent application. With its IP66 rating, this fixture is ready for installation inside or outside – wherever you need it. The x7 Color System produces the widest range of spectrally- balanced saturated and tinted color choices available. The D40XTI offers a rugged die-cast enclosure, noiseless fan-free operation, and multiple lens options that can be changed on-site.

D40XTI LED Arrays

The D40XTI luminaire is available with any one of the following color arrays to best suit the intended application.

  • D40XTI Vivid: Best all-around use as a color-changing wash fixture
  • D40XTI Lustr+: Optimized with six colors plus high-intensity white LEDs to create an ideal frontlight wash fixture; full-range color, with an emphasis on lighter colors and white
  • D40XTI Studio HD: Combines warm-white and cool-white LEDs with five carefully-chosen x7 LED colors, to fill in white LED spectral apps with variable color-temperature mixing for the richest variable white light possible in an LED fixture

Also available in the following static-white arrays:

  • D40XTI Studio Daylight – Contains forty 5600 K LEDs for high-intensity, non-variable cool-white output
  • D40XTI Studio Tungsten – Contains forty 3000 K LEDs for high-intensity, non-variable warm-white output

Specifications

Source

  • LED details: 40 Lumileds LUXEON® Rebel LED
  • Max lumens: 2252
  • Lumens per watt: 23.6
  • L70 rating (hours to 70% output): 50,000 hours

Color

  • Colors used: Red, Red-Orange, Amber, Green, Cyan, Blue, Indigo
  • Color temperature range: 2,700–6,500K
  • Calibrated array: Yes
  • Red shift: Yes (not available on static-white)

Optical

  • Beam angle: 8°–17°
  • Aperture size: 7.5"
  • Pattern projection: No
  • Pattern size: N/A
  • Camera flicker control/Hz range: 900–25,000 Hz
  • Notes: Secondary lenses available for multiple beam-spread options

Control

  • Input method: DMX512 via termination board
  • Protocols: DMX-512/RDM
  • RDM configuration: Yes
  • UI type: None (configure via RDM)
  • Local control: No
  • Onboard presets: Yes
  • Onboard sequences: Yes
  • Onboard effects: No
  • Fixture-to-fixture control: No
  • Notes: 15-bit virtual dimming engine

Electrical

  • Voltage range: 100–240 VAC 50/60 Hz
  • Input method: Waterproof, 72 in power lead; Requires power from non-dimmable source
  • Inrush: 15A at 120V (first half-cycle); 40A at 240V (first half-cycle)
  • Fixtures per circuit: 10 (15 A may be fed on same circuit); (*All measurements are for 120 V, 60 Hz. Results may vary in different regions)
  • Wattage typical: 110
  • Current draw: 1/0.5A

Thermal

  • Ambient operating temp: -20°–40°C (-4°–104°F)
  • Fan (controllable): No
  • Droop compensation: Yes
  • dB range: N/A
  • BTUs/hour: 375.32

Physical

  • Materials: Die-cast, all metal housing
  • Color options: Black, white, silver, or custom color
  • Mounting options: Single-pole mount, wall or square pole mount, twin fixture pole mount
  • IP rating: IP66 for exterior, wet location use
  • Weight: 6.8 kg (15 lbs)
  • Notes: Cable diameter: Power 0.36 in / Data 0.34 in; Effective projected area (EPA): 0.74

Warranty

  • Fixture: 5 yrs
  • LED array: 10 yrs

Regulatory & Compliance

  • Approved regulatory standards: cETLus Listed, Conforms to UL1598, Certified to CSA C22.2 No. 250.0, CE Compliant
  • Dimensions (LxWxH)10.25x10.72x13.25" (260x272x337mm)
