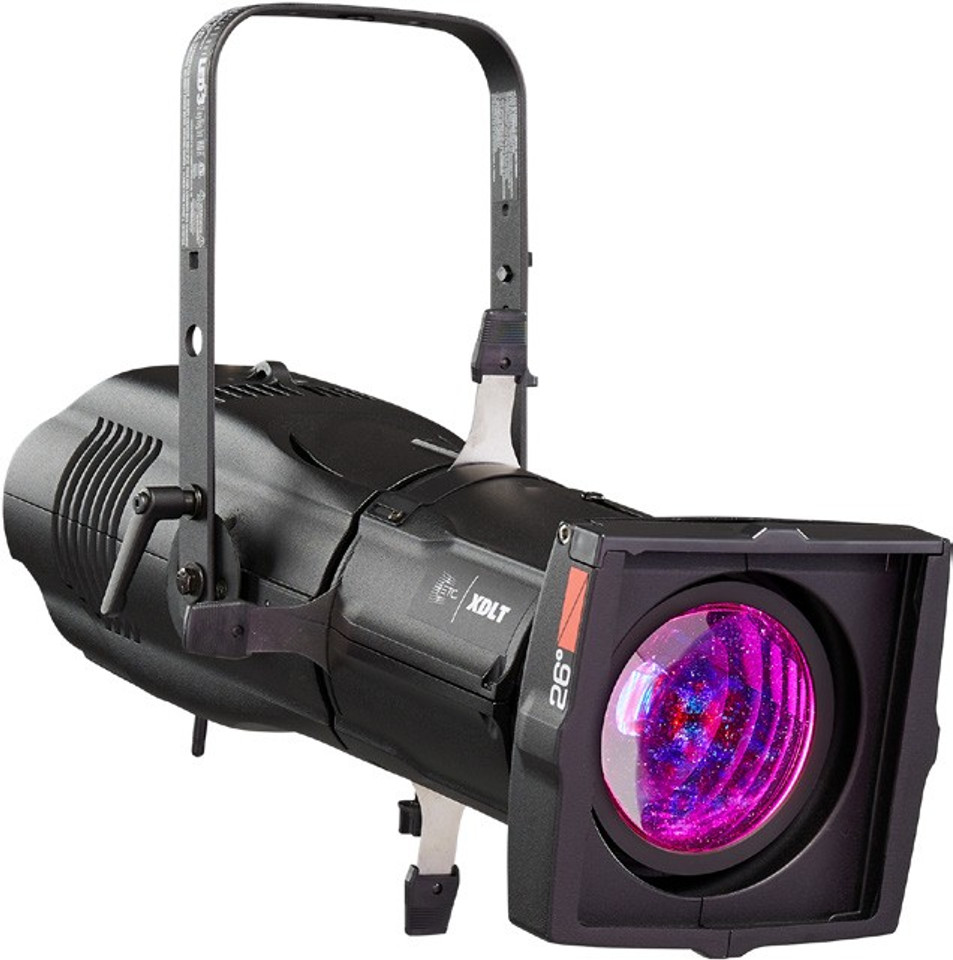

Source Four LED Series 3, light engine only, Lustr X8, black

SKU: ETC-7462A1050
MSRP: $2,850.00

Overview

Over a decade of research comes together in the Source Four LED Series 3 fixture. ETC brings the eight-color Lustr X8 array and the tunable white light Daylight HDR array to the professional stage with this fixture. The deep red LEDs in both arrays reveal richer skin tones, bring a deeper dimension to your scenery, and add warmth to sunsets and firelight. Additional features include wireless DMX/RDM through City Theatrical’s Multiverse technology, contactless programming and control using NFC and ETC’s Set Light app, and an intuitive user interface featuring a color picker and action-responsive backlit encoders.

Specifications

Source

  • LED details: 90 Lumileds LUXEON® C and CZ
  • Max lumens
    • Lustr X8: 10,889
    • Daylight HDR: 14,214
  • Lumens per watt
    • Lustr X8: 35
    • Daylight HDR: 42
  • L70 rating (hours to 70% output: >54,000

Color

  • Colors used
    • Lustr X8: Deep Red, Red, Amber, Lime,
    • Green, Cyan, Blue, Indigo
    • Daylight HDR: Deep Red, Red, Mint,
    • Cyan, Blue, Indigo
  • Color temperature range: 1900–10450 K
  • Calibrated array: Yes
  • Red shift: Yes (selectable)

Optical

  • Beam angle range: Swappable lens tubes between 5°–90°
  • Gate size: 80 mm
  • Aperture size: 6.25–17.5 in (depending on lens tube)
  • Pattern projection: Yes
  • Pattern size: A or B
  • Camera flicker control/Hz range: Yes: 5 kHz, 25 kHz
  • Notes: Can be used with LED CYC and Fresnel adapters

Control

  • Input method: 5-Pin XLR, Multiverse wireless and NFC
  • Protocols: DMX-512, RDM, City Theatrical Multiverse, NFC
  • Modes (footprint): 5 modes (1–12 channels)
  • RDM configuration: Yes
  • UI type: Full color display
  • Local control: Yes
  • Onboard presets: Yes (12)
  • Onboard sequences: Yes
  • Onboard effects: No
  • FixtureLink: Yes
  • Notes: 15-bit virtual dimming engine

Electrical

  • Voltage range: 100–240 VAC 50/60 Hz
  • Input method: AC via Neutrik powerCON TRUE1 TOP
  • Inrush
    • 40 A at 120 V (First half-cycle)
    • 80 A at 230 V (First half-cycle)
  • Fixtures per circuit*
    • 5 (link up to 4 via Power Thru
    • connector)
    • Note: TRUE1 connector rated for 20 A
    • (120 V/60 Hz) and 16 A (240 V/50 Hz)
  • Wattage typical
  • Direct at Full (Idle)
    • Lustr X8:
      • 307 (6.3) W at120 V
      • 305 (4.7) W at 230 V
    • Daylight HDR:
      • 340 (6.3) W at 120 V
      • 330 (4.7) W at 230 V
    • Current draw
      • Lustr X8:
        • 6 A at 120 V
        • 35 A at 230 V
      • Daylight HDR:
        • 85 A at 120 V
        • 5 A at 230 V

Thermal

  • Ambient operating temp: 0°C to 40°C (32°F to 104°F)
  • Fan (controllable): Yes (yes)
  • Droop compensation: Yes
  • dB range: 34 dBA average at 1 m
  • BTUs/hour
    • Lustr X8: 1,047
    • Daylight HDR: 1,159

Physical

  • Materials: Die-cast, all metal housing
  • Color options: Black, white, silver, or custom color
  • Mounting options: Yoke, cyc floor stand (sold separately)
  • IP rating: IP20
  • Weight
    • With barrel: 8.9 kg (19.6 lb)
    • Without barrel: 6.8 kg (14.9 lb)
  • Included accessories
    • Hanging yoke, 1.5 m power cable,
    • A-size gobo holder
  • Notes
    • Positive locking double-clutch fixture body
    • Slot for glass or stainless steel patterns and soft focus diffuser
    • Wide accessory slot with sliding cover for motorized pattern device or iris
