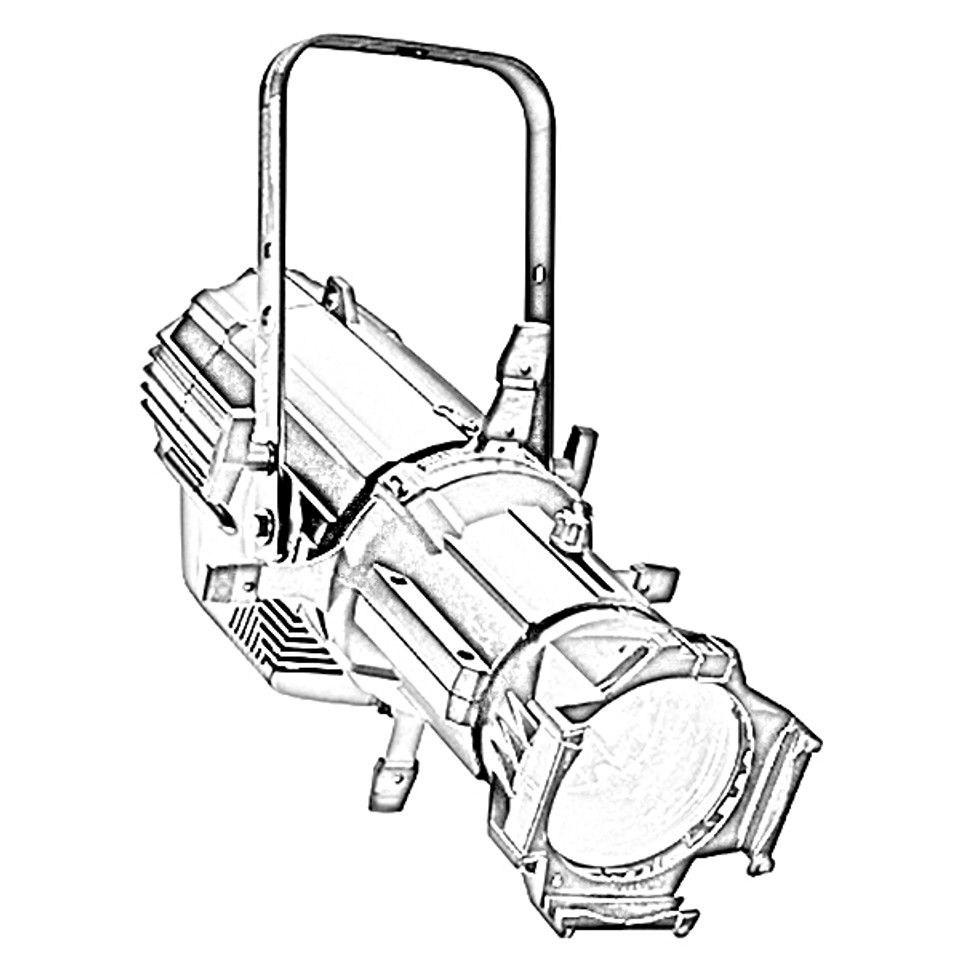

Source Four LED Series 2 Lustr, light engine only (w/o shutter barrel), white

SKU: ETC-7461A1050-1
MSRP: $2,725.00

Overview

The Source Four LED Series 2 revolutionizes LED lighting. With optimized arrays and finely-tuned electronics, Series 2 offers a combination of light quality and output that cannot be matched.

Source Four LED Series 2 Lustr luminaires are based on the x7 Color System, utilizing seven colors including high-output lime to achieve true, usable broad-spectrum color with a depth and feel beyond any RGB fixture.

Series 2 light engines work with all Source Four lens tubes to deliver a high-quality, controllable beam of LED light. For the best results, we highly recommend that you use EDLT lens tubes. We also offer a special LED-only version of the 50° lens tube. Combine with available adapters to transform your fixture into a fully functional Fresnel or CYC light.

Specifications

Source

  • LED details: 60 Lumileds LUXEON® Rebel LED
  • Max lumens:
    • Series 2 Lustr: 8,667
    • Series 2 Daylight HD: 13,060
    • Series 2 Tungsten HD: 11,512
  • Lumens per watt:
    • Series 2 Lustr: 51.9
    • Series 2 Daylight HD: 52.7
    • Series 2 Tungsten HD: 55.3
  • L70 rating (hours to 70% output)*:
    • Lustr: 54,000 hours
    • Daylight/Tungsten HD: >60,000 hours

Color

  • Colors used:
    • Series 2 Lustr: Red, Amber, Lime, green, Cyan, Blue, Indigo
    • Series 2 Daylight HD: Red, Mint, Blue, Indigo
    • Series 2 Tungsten HD: Red, Red-Orange, Mint, Blue, Indigo
  • Color temperature range: Series 2 Lustr: 2,200–6,500 K*
  • Calibrated array: Yes
  • Red shift: Yes (can be disabled)

Optical

  • Beam angle range: Swappable lens tubes between 5°–90°
  • Gate size: 80 mm
  • Aperture size:25–14 in (depending on lens tube)
  • Pattern projection: Yes
  • Pattern size: A or B
  • Camera flicker control/Hz range: Yes: 900–25,000 Hz
  • Note: Can be used with LED CYC and Fresnel adapters

Control

  • Input method: DMX512 via 5-pin XLR
  • Protocols: DMX512/RDM
  • Modes (footprint): 4 modes
  • RDM configuration: Yes
  • UI type: LCD
  • Local control: Yes
  • Onboard presets: Yes
  • Onboard sequences: Yes
  • Onboard effects: No
  • FixtureLink: Yes
  • Notes: 15-bit virtual dimming engine

Electrical

  • Voltage range: 100–240 VAC 50/60 Hz
  • Input method: Neutrik powerCON in and thru, requires power from a non-dimmable source
  • Inrush:
    • 50 A at 120 V (First half-cycle)
    • 107 A at 240 V (First half-cycle)
  • Fixtures per circuit:
    • 9 Lustr or 7 Daylight HD/Tungsten HD (15 A via power thru connector)
    • 10 Lustr or 8 Daylight HD/Tungsten HD (via R20 module or Echo Relay Panel)
  • Wattage typical:
    • Series 2 Lustr: 167
    • Series 2 Daylight HD: 248
    • Series 2 Tungsten HD: 208
  • Current draw:
    • Series 2 Lustr:
      • 44 A at 120 V
      • 78 A at 240 V
    • Series 2 Daylight HD:
      • 75 A at 120 V
      • 93 A at 240 V
    • Series 2 Tungsten HD:
      • 08 A at 120 V
      • 93 A at 240 V

Thermal

  • Ambient operating temp: 0°–40° C (32°–104° F)
  • Fan (controllable): Yes (yes)
  • Droop compensation: Yes
  • dB range:5 dBA average at 1 m
  • BTUs/hour:
    • Series 2 Lustr: 569
    • Series 2 Daylight HD: 846
    • Series 2 Tungsten HD: 709

Physical

  • Materials: Die-cast, all metal housing
  • Color options: Black, white, silver, or custom color
  • Mounting options: Yoke, cyc floor stand (sold separately)
  • IP rating: IP20
  • Weight:
    • With barrel: 8.3 kg (18.3 lb)
    • Without barrel: 6.5 kg (14.3 lb)
  • Included accessories: Hanging yoke, 1.5 m power cable, soft-focus diffuser in an A-size gobo holder, gel frame
  • Note:
    • Positive locking double-clutch fixture body
    • Slot for glass or stainless steel patterns and soft focus diffuser
    • Wide accessory slot with sliding cover for motorized pattern device or iris

Warranty

  • Fixture: 5 years
  • LED array: 10 years

Regulatory and Compliance

  • Approved regulatory standards:
    • cETLus Listed
    • Conforms to UL1573
    • Certified to C22.2 C22.#166
    • CE Compliant
