Overview

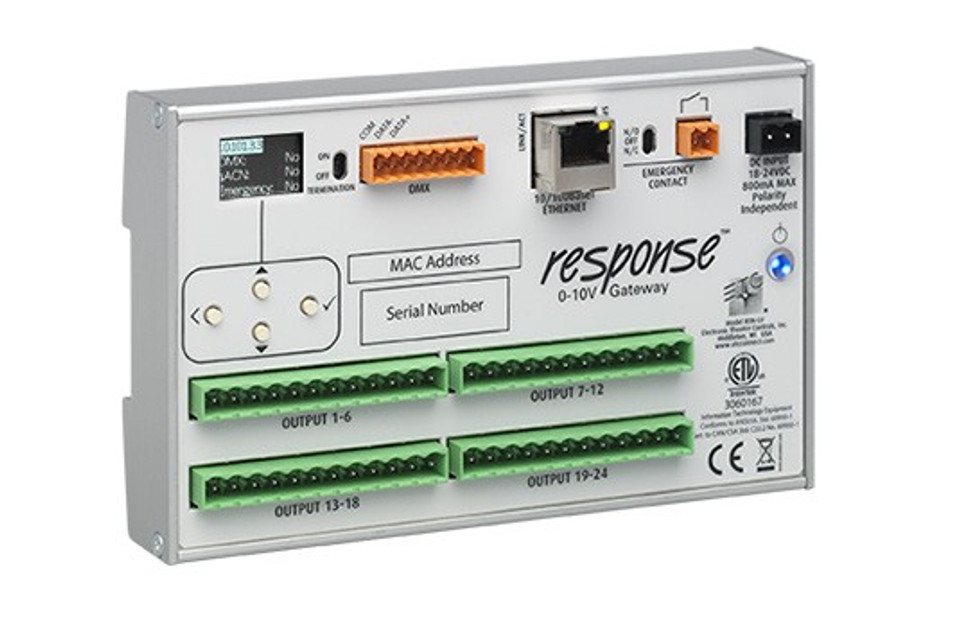

The Response 0-10 V Gateway accepts streaming ACN (sACN) or DMX control input to provide 24 outputs of 0-10 V control. It is ideal for both retrofit and new power-control system installations that require four-wire LED drivers and fluorescent ballasts. The Gateway also accepts a contact input to set each channel’s output to a programed level for use in UL924 emergency lighting applications.

APPLICATIONS

• Houses of worship
• Hotels
• Convention centers
• Meeting rooms
• House lighting
• Museums
• Themed environments

FEATURES

• 24 independent 0-10 V control outputs
• DMX or sACN control input
• Configurable dimming curve per output
• Contact input for emergency lighting
• Onboard configuration using four-button interface
• Remote configurable using Concert Software.
• Onboard display for status and configuration
• Power and network status indicators
• 18–24 vDC power input
• UL 924 LISTED for emergency lighting applications

Specifications

FUNCTIONAL

• Supports sACN control input (ANSI E1.31)
• Supports USITT DMX512-A control input (ANSI E1.11)
• Supports 0–10V sink control (IEC60929 Annex E)
• Supports per-address- or per-universe-level priority
• Configurable dimming curve per channel
  • Linear
  • Mod-Square
  • Custom

MECHANICAL

• Intuitive four-button interface
• Onboard display for identification, status and configuration
• Extruded aluminium enclosure
• Network and power activity indicators
  • Blue power indicator
  • Green and orange network activity indicator
• Female RJ45 for connection to lighting network
• Pluggable terminals provided for all wiring connections
• Selection switch for emergency input configuration
  • Normally Open, Normally Closed or Off
• Trim pot for configuration of 0-10 V maximum voltage, +/- 1V
• 10 unit DIN enclosure
• Mounting complies with DIN43880 (35/7.5 rail)

 ENVIRONMENTAL

• Ambient operating temperature: 0°–40° C (32°–104° F)
• Operating humidity: 5–95% non-condensing
• Storage temperature: -40°–70° C (-40°–158° F)

ELECTRICAL

• Compliant with IEEE 802.3i for 10BASE-T, 802.3u for 100BASE-TX
• 18-24 vDC power input using two-pin pluggable connection
• Maximum 18 W current draw at 18-24 V
• 24 0–10 V outputs, each supporting voltage sink connections, 400 mA maximum current per output

DMX INPUT PORT

• Optically-isolated input from the Gateway electronics
• Withstands fault voltages of up to 250 VAC
• Integrated DMX/RDM termination

CONFIGURATION

• Onboard configuration using intuitive four-button interface
• Configuration provided using Concert software
• Configurable starting address
• Up to four sources may be combined to the network with each source or address allowed an independent priority

REGULATORY AND COMPLIANCE

• cETLus Listed
• CE compliant
• EAC certified
• RoHS compliant
• WEEE
• UL 924 LISTED for emergency lighting applications
