Overview

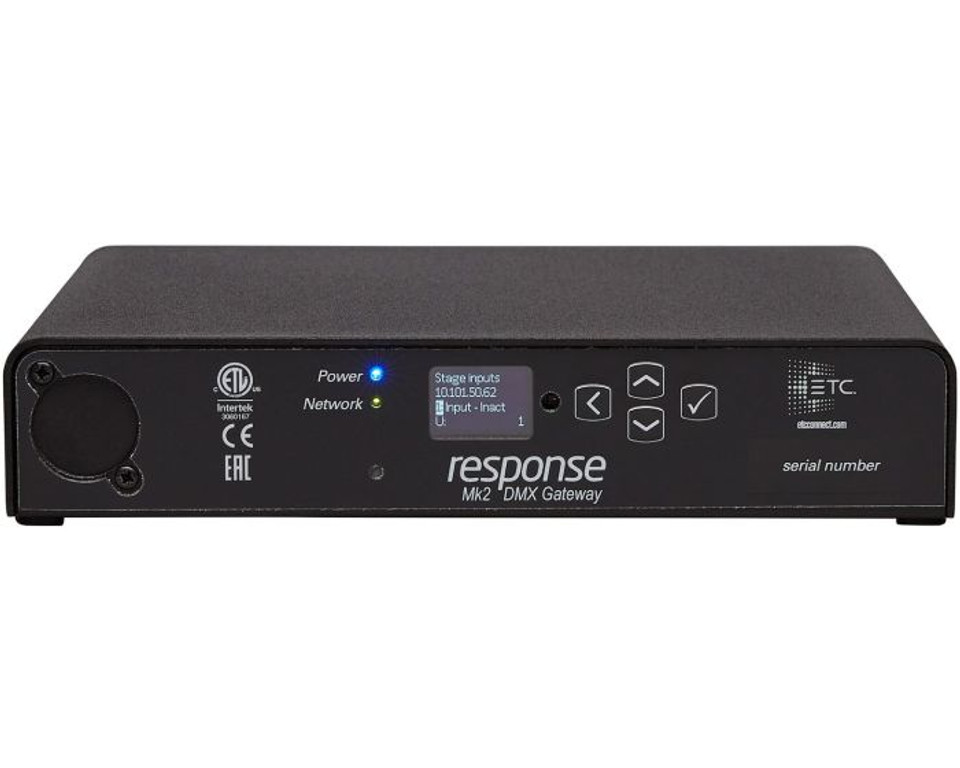

ETC’s Response Mk2 Four-Port Gateway provides data distribution using the quality and reliability of ETC’s network technology. Built for Net3 using industry-standard sACN, DMX and RDM, the Response Gateway unlocks the power of your networked system.

APPLICATIONS

• Road houses
• Touring
• University/professional theaters
• Convention halls
• Tech tables
• Stage manager panels
• System integration

FEATURES

• Distributes DMX and RDM data to any input/output device over Ethernet
• Supports Net3 protocol powered by ACN
• Configurable DMX/RDM Output or Input
• Simple configuration and service of each port
• Onboard screen and buttons for status and configuration
• Power and network status indicators
• Touch to Wake Sensor
• Power over Ethernet (PoE) or external DC power supply
• Configurable using Concert Software

Specifications

FUNCTIONAL

• Supports Net3/ACN (ANSI E1.31 and E1.17)
• Supports RDM (ANSI E1.20)
• Supports USITT DMX512-A (ANSI E1.11)
• USITT DMX512 and ANSI E1.11 DMX512-A compliant
• Flexible Output Patch allows a 512-address universe to begin at any output address
• Advanced Input Patch
• Support for per-address- or per-universe-level priority
• Maximum delay time from input to output not greater than one packet time
• Selectable DMX refresh rate with a maximum at least 40Hz
• Supports up to 256 total RDM devices

MECHANICAL

• Intuitive four-button interface
• Onboard display for identification, status and configuration
• Fabricated from 16-gauge cold-rolled steel
• Black, Fine-textured, powder-coat finish
• C-clamp and U-bolt hardware available
• Half 19” equipment rack width allows for up to eight DMX ports in 1U height
• Network, power and data activity LED indicators
  • Blue power indicator, green network activity indicator
  • Bi-color DMX activity indicator
• RJ45 for connection to lighting network configurable for front or rear positioning
• Reset button for hard reset or forced reboot

ENVIRONMENTAL

• Ambient operating temperature: 0°–40° C (32°–104° F)
• Operating humidity: 5–95% non-condensing
• Storage temperature: -40°–70° C (-40°–158° F)

ELECTRICAL

• Compliant with IEEE 802.3i for 10BASE-T, 802.3u for 100BASE-TX and 802.3af for Power over Ethernet
• 12–24VDC power input for use with non-PoE systems
• Maximum seven watt current draw
• Clamp style connectors for solid and stranded cable wiring provided for terminal version

CONFIGURATION

• Local configuration options
• Remote configuration provided by Concert
  • Supports up to 512 DMX addresses per port
  • Supports up to 63,999 Streaming ACN universes
• DMX data input or output configurable by user
• Multiple sources may be combined to the network with each source or address allowed an independent priority
• Individual port start address and offset
• User-configurable labeling

REGULATORY AND COMPLIANCE

• cETLus Listed
• CE compliant
• RoHS compliant
• WEEE
