Overview
PowerSafe Pro sets a new standard in safety and size. It offers important new features: locking connection covers, shunt-trip- protected doors that can lock connection covers in place while output power is present, and lockout/tagout brackets.

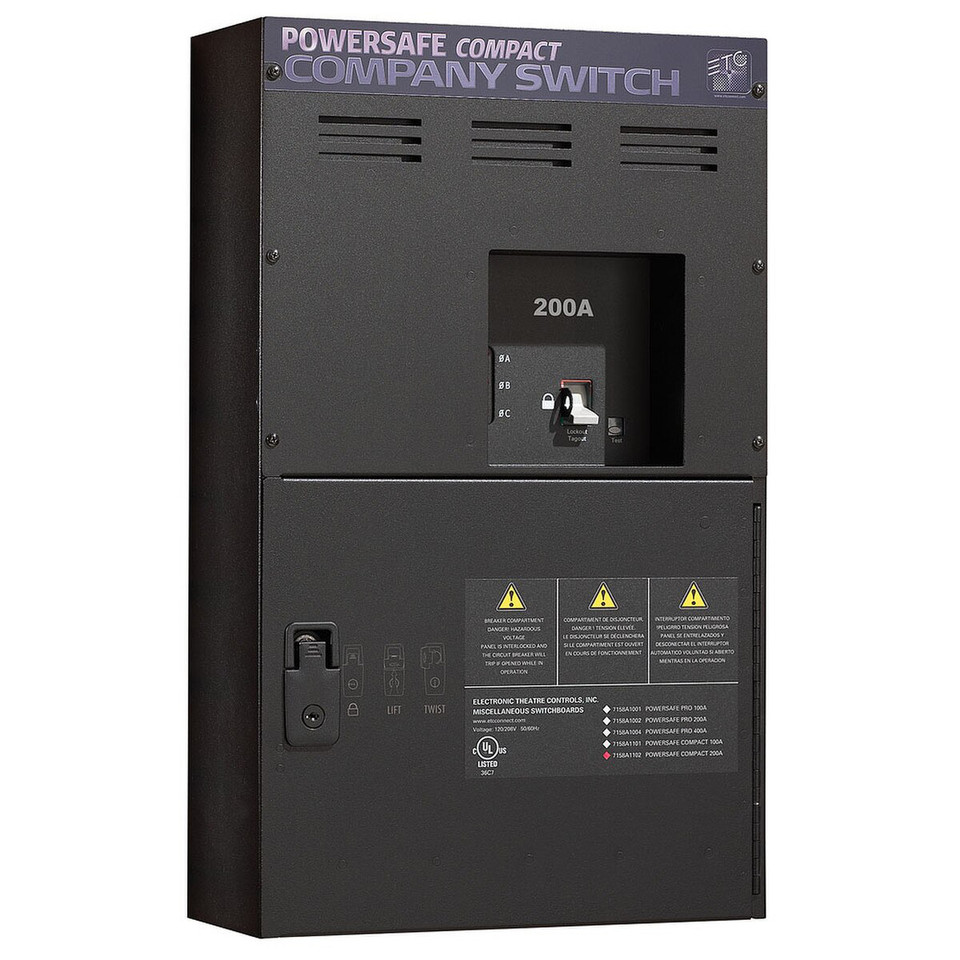

PowerSafe Compact offers safety in a smaller size. This model does not include the connector chamber, dual neutral, tie-off, LED worklights or support for 400 A capacity, which allows the PowerSafe Compact model to be more compact.
A fault-current-limiting option provides additional safety in the event of a short circuit, allowing safe connection of equipment with lower SCCR (Short Circuit Current Rating) and reducing arc-flash hazard.
FEATURES
PowerSafe Pro
- PowerSafe compartment: Protects against access to output connections while the cabinet is energized
- Double Neutral: Supports 200% rated neutral output
- LED Worklight Option: Illuminates interior and output lugs
PowerSafe Compact
- Safety bracket: Locks access to hinged covers over all connections while the door is closed
All Models
- Shunt trip safety interlock
- 65,000 A Short Circuit Current Rating
- 100% Rated Main Breaker
- Iso Ground: Allows isolation between enclosure ground and equipment ground for use with audio systems
- Output Connections: Accommodates single-pole cam-style connectors and up to 4/0 class K cables using 500 kcmil screw terminal
- Power Indicators: LEDs light up to show that power is on/available between each phase and neutral
- Lockout/Tagout: Accepts third-party locks on built-in bracket for support of NFPA 70E safety lockout/tagout procedures
Specifications
GENERAL
- Satisfies safety requirements for lockout/tagout
- Short Circuit Current Rating (SCCR): 65,000 A RMS symmetrical
MECHANICAL
- Wall-mount unit with integral keyhole fixing points
- 16-gauge welded steel cabinet, rated NEMA 1
- Locking swing hinged door with clamp latch
- Fine-textured, scratch-resistant epoxy paint
- Secondary door for access to bare-end tie-ins
- Conduit entry via top or side (see manual)
- Solid, top and side panel free of conduit knockouts to allow for greater flexibility in contractor conduit entry
- Integral breaker lockout bracket supports standard lockout/tagout procedures to prevent any persons from turning the breaker “on” while the lock is in place
ELECTRICAL
- Power input:120/208 V – Three-phase, four-wire plus ground
- Copper and aluminum feeders are allowed
- 100% rated 100 A, 200 A, or 400 A breaker
- 65,000A SCCR symmetrical rated system
- Reverse neutral and ground cam-style connector configuration (phase leg connectors are female, ground and neutral are male)
- Current transformers can optionally be installed in the field for connection to external third-party power meters
- Safety interlock disconnects output power when cabinet door is opened
PROTECTION FROM LIVE CONNECTIONS
PowerSafe Pro
- Door-covered “Fingered” cable entry for safe access through the front of the panel
- “Fingered” cable entry made of foam rubber surface for prevention of wear and tear on cabling
PowerSafe Compact
- Swing-hinged brackets lock covers in place until the front door is opened, preventing connector insertion under power
