Paradigm Inspire 4-Button Station (Black)

SKU: ETC-7185B2104-4

Overview

Sophisticated and stylish - with the control you need. TheseLinkConnect-powered stations are designed to initiate preset,zone, and space controls for your entire lighting system. Theycommunicate efficiently with a single space or the rest of theParadigm family of lighting controls to provide necessary control forany installation. Paradigm Inspire are an elegant way to add controlto any facility.

APPLICATIONS

  • Education
  • Hospitality
  • Healthcare facilities
  • Office buildings
  • Conference rooms
  • Meeting rooms
  • Retail

FEATURES

  • LinkConnect: two-wire topology-free system gives you thefreedom to easily place stations wherever they are needed
  • Fastener-Free Faceplate System: no visible means ofattachment
  • Decorator style face plates available in one-, two-, three- andfour-gang options
  • Color control: the four button with fader station provides livefeedback and control for:- Variable Color: Intensity, Saturation and Hue- Variable White: Intensity, Tint and Color Temperature
  • Color condition: rear-illuminated indicators that reflectsystem status using RGB LEDs. Allowing for customizedcontrol indication on a per-button basis
  • Laser engraved legend system with custom button labelingavailable

GENERAL

  • UL and cUL Listed
  • CE marked

Specifications

FUNCTIONAL

  • Zone or preset control from any station
  • RGB button illumination for activity status
  • Button functions include: preset selection, record mode activation, station lockout, raise, lower, macro activation, zone on/off control,timed-event override and wall open/close or toggle
  • Fader functions include: zone or group intensity, color control, variable white control
  • Custom button functionality programmable via LightDesigner configuration software
  • Programmable electronic lockout levels- Allows for programming of individual lockout levels

MECHANICAL

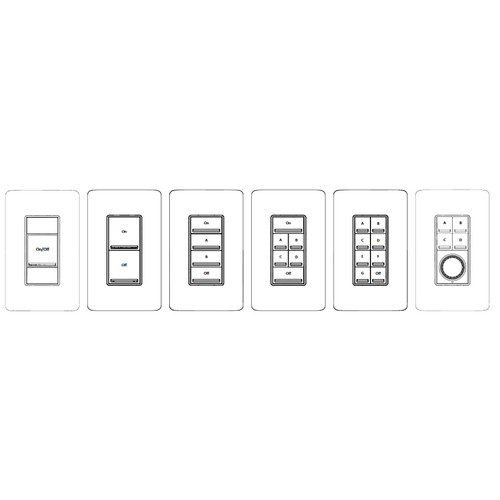

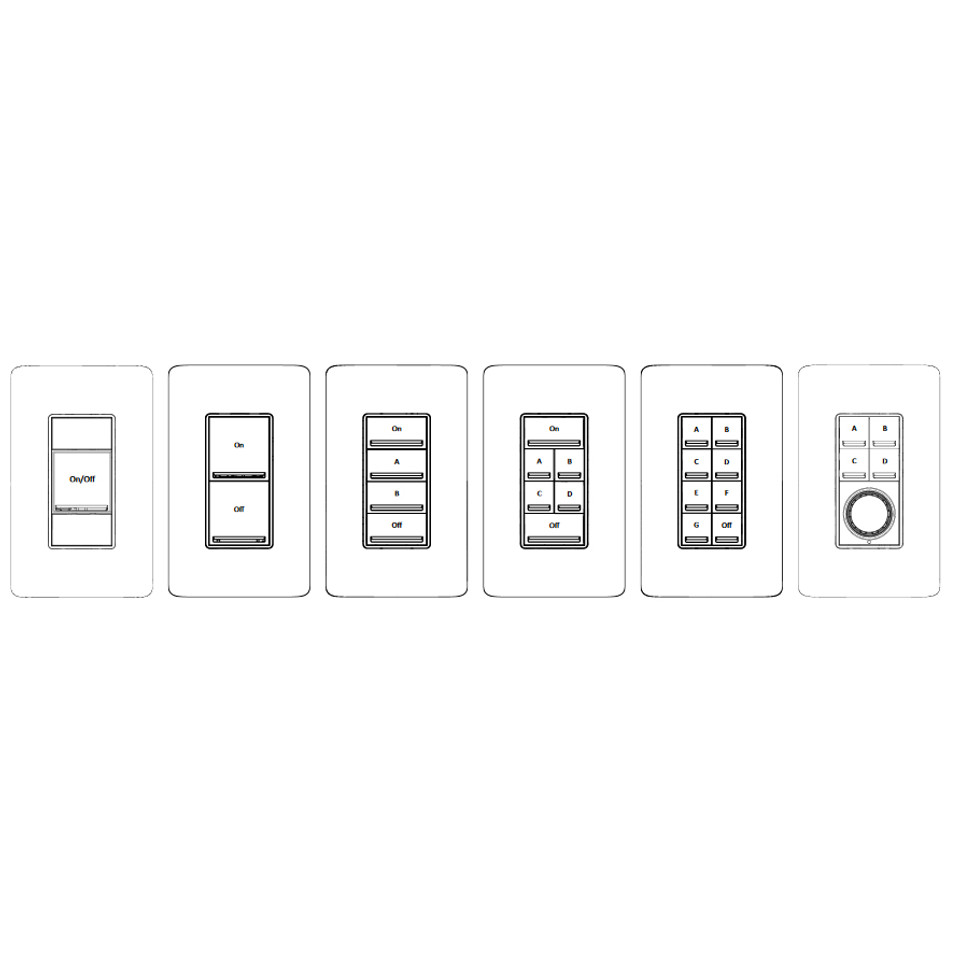

  • 1, 2, 4, 6 and 8 buttons or 4 buttons with rotary fader
  • Gangable for custom applications
  • Enclosed electronics assembly
  • Cantilevered switch arrays with replaceable button caps
  • No visible means of attachment
  • Flush-mount in industry standard back box, RACO 690 or equivalent
  • Surface-mount backboxes available from ETC upon request
  • Constructed of injection-molded, ABS plastic in four RAL standard colors:- Cream (RAL 9001)- Grey (RAL 7001)- Black (RAL 9004)- White (RAL 9003)

ELECTRICAL

  • Connect via LinkConnect two-wire control network utilizing low-voltage Class 2 wiring- Topology-free and polarity-independent wiring over Belden 8471 or equivalent and one #14 ESD drain wire- Wiring may be bus, loop, home run or any combination of these
  • All station terminations utilize removable connectors
  • UL and cUL Listed, CE marked

THERMAL

  • Ambient room temperature: 0°C to 40°C (32°F to 104°F)
  • Ambient humidity: Maximum 90% non-condensing
