Overview

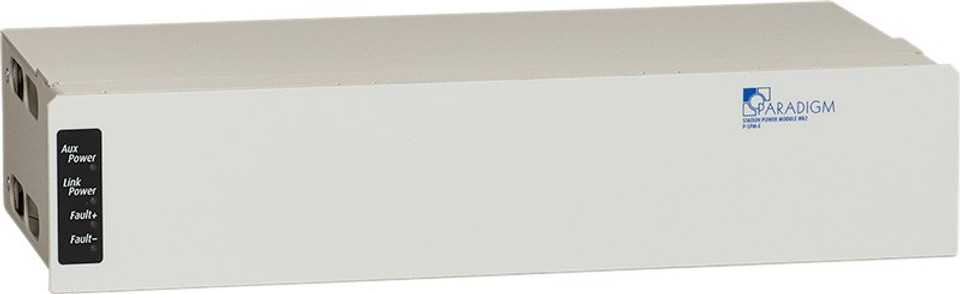

The Paradigm Station Power Module (P-SPM-E) was designed for use with the Unison DRd and ERn enclosures with Paradigm control. The addition of a Station Power Module offers support for button, fader and touchscreen stations.
APPLICATIONS
- Houses of worship
- Schools
- Restaurants
- Hotels
- Museums
- Casinos
- Ballrooms
FEATURES
- Designed for use in Unison DRd and ERn enclosures
- Plug and Play: ready to go out of the box, no software or external programming required
- LinkConnect: The two wire topology-free system gives you the freedom to put stations where you need them
- Up to 63 stations
- Up to 500 m of wiring per system
- Auxiliary power: 24 VDC power to support Unison interface stations and Paradigm Touchscreens
- Up to four touchscreen stations supported per P-SPM-E
REGULATORY AND COMPLIANCE
- cULus Listed
- CE Compliant
Specifications
FUNCTIONAL
- Provides Echelon LonTalk with LinkPower for up to 63 stations
- Provides 24 V auxiliary power for interface and touchscreen stations
- Provides 1,640 ft (500 m) of station bus from the ERn or DRd enclosure
MECHANICAL
- Designed for use in Unison Dimming (DRd) and Control (ERn) Series Enclosures
- 18-gauge formed steel construction
- Fine-textured, scratch-resistant, epoxy paint
- Wall-mount and 19 in rack-mount variants available
- Convection cooled
- Fully contained plug in module with no discrete wire connections
- Tool-free installation
- Front-panel status indicators
ELECTRICAL
- No discrete wiring connections required for use in a DRd dimming or ERn control enclosure
- Echelon LinkPower communications with remote devices, including button stations, button/fader stations, touchscreen stations, sensors, and third-party LonMARK-compliant products
- 24 V Auxiliary power for interface and touchscreen stations
THERMAL
- Ambient room temperature: 0°–40° C / 32°–104° F
- Ambient humidity: 10–90% non-condensing
