Overview

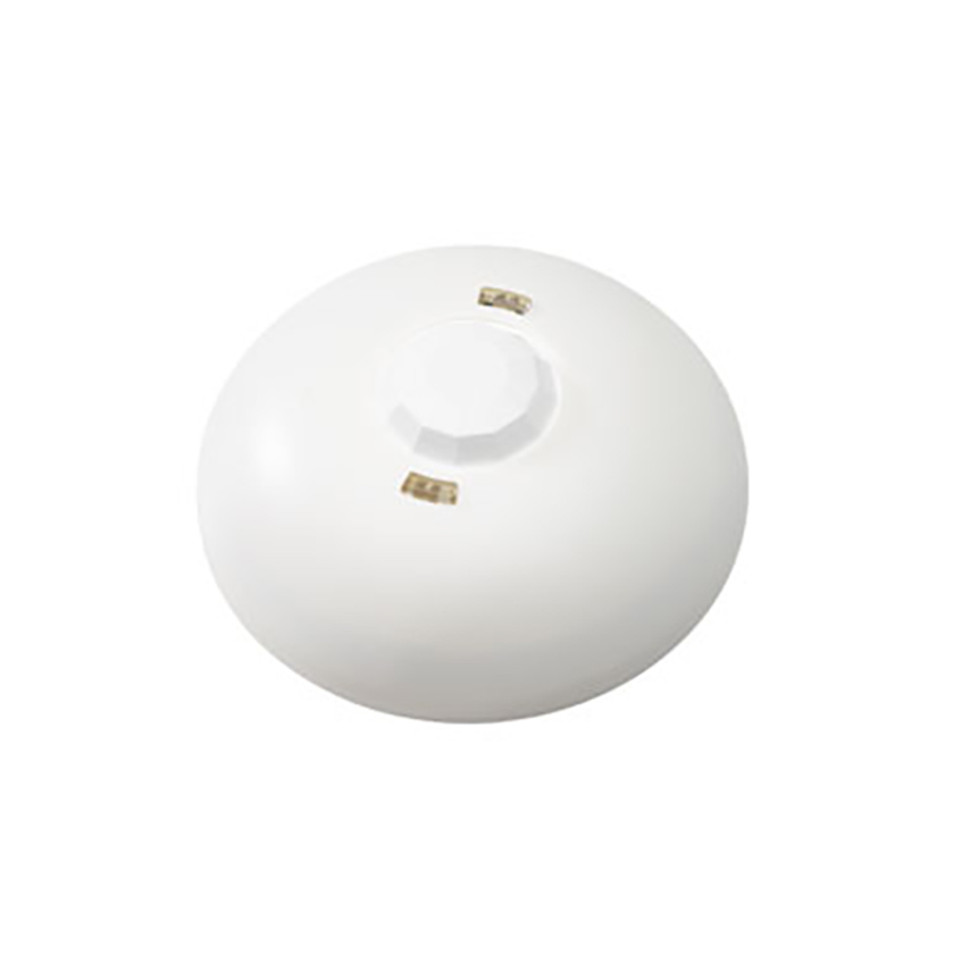

No more wasting resources lighting an empty room. Buildings can waste electricity as a result of lights being left on in an unoccupied room. ETC’s Unison Paradigm Occupancy/Vacancy Sensors are a convenient and easy solution for your facility to eliminate that wasted energy, by automatically turning off lighting loads when a room is empty. The low-profile, sleek sensors can be installed anywhere in yourfacility to provide uninterrupted, 24/7/365 operation, without affecting the look and beauty of their surroundings.

APPLICATIONS

• Classrooms
• Conference rooms
• Museums
• Office spaces
• Low-use spaces

FEATURES

• Supports Occupancy or Vacancy detection
• Passive infrared (PIR) sensing technology
• Three versions available:
  • Large room
  • Small room
  • High ceiling
• Walk-thru mode for coverage verification
• Field-installed coverage masks
• Supports manual-on/auto-off (default) and auto-on/off modes
• Software configurable to activate or deactivate any Paradigm system function
• LinkConnect: two-wire, topology-free bus for power and communication
• Each sensor counts as one station
• Available in white and black

GENERAL

• UL and cUL Listed
• CE compliant

Specifications

FUNCTIONAL

• Supports software-configured Auto-On/Auto-Off functionality (occupancy sensing) or Manual On/Auto-Off (vacancy sensing) functions
• 360° coverage pattern
  • Includes customizable coverage masks
• No additional power pack required
• Supports Walk-Thru mode for verifying coverage area
• Sensor lens illuminates for walk-thru and test mode operation
• Sensor coverage tested to NEMA WD 7-2000

MECHANICAL

• Constructed of injection-molded, ABS plastic in Pure White (RAL 9010) or Black (RAL 9004)
• Electronics assembly and mounting plate included
• Two cantilevered configuration buttons
• No visible means of attachment
• Surface- or backbox-mountable using included mounting plate
  • Supports drywall, plaster, wood and concrete
  • Mounts to any standard electrical box (supplied by other manufacturers)
  • Mounts to compressed-fiber ceilings with included wire form
• Field-installed lens mask allow customized occupancy detection fields

ELECTRICAL

• Connect via LinkConnect two-wire control network utilizing low-voltage Class 2 wiring
• Topology-free and polarity-independent wiring over Belden 8471 or equivalent and one 2.5 mm2 (14 AWG) ESD drain wire
• Wiring may be bus, loop, homerun or any combination of these

ENVIRONMENTAL

• Ambient room temperature: 0–40° C (32–104° F)
• Ambient humidity: Maximum 90% (non-condensing)
